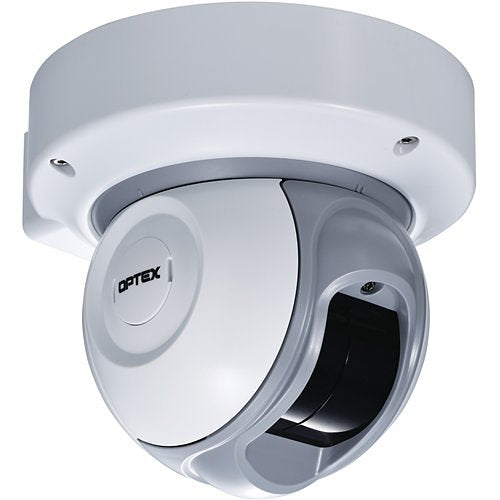

Optex RLS-2020S short-range laser detector

Free Delivery
£ 1,917 69
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Optex RLS-2020S is a short-range laser detector from the RLS-2020 range.

The RLS-2020S is a compact indoor and outdoor laser sensor that creates customizable detection areas to identify people or objects. It is Grade 3 compliant and can be integrated with security or safety systems. It is ideal for protecting skylights, walls, assets, and other areas that cannot be easily protected by other sensors or video based detection systems.

Key features

  • LiDAR with customisable detection area up tp 20x20m or 95° 30m radius (ver. 3)
  • Creates virtual walls and planes for a versatile indoor/ outdoor protection
  • Unique algorithm detecting the size, distance and speed of the objects
  • PoE compliant and integrated with most VMS platforms

If you are matching this to an existing installation, work from the RLS-2020S part number rather than the description.

£ 1,917 69
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,917.69 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Optex
Manufacturer Part Number
RLS-2020S
Product Series
RLS-2020
Product Type
Motion Sensor
Technical information
Connectivity Technology
Wired
Maximum Outdoor Detection Range
21m
Power Consumption
6.0000W
Certifications
Certifications & Standards
UL Listed
Physical characteristics
Colour
Silver
Depth
160.00mm
Form Factor
Ceiling Mount, Pole Mount, Recessed Mount, Tripod Mount, Wall Mount
Height
146.00mm
Width
160.00mm
Power description
Input Current
250mA
Input Voltage
10.5-30V DC
Power Source
PoE (Power over Ethernet)
Product information
Installation Type
Hybrid (DIY + Professional)
Mount Type
Ceiling Mount, Pole Mount, Recessed Mount, Tripod Mount, Wall Mount
Miscellaneous
Additional Information
Detection method: Infrared laser scan Laser Protection class: Class 1 Power input: 10.5 to 30 V DC, PoE (IEEE802.3 af/at compliant) Current draw: 500 mA max (12VDC), 250 mA max. (24VDC), 6W max (PoE)
Attributes
Features
Laser Scanner Technology
Input Voltage
10.5-30V DC
Power Source
PoE (Power over Ethernet)
Additional Information
Detection method: Infrared laser scan Laser Protection class: Class 1 Power input: 10.5 to 30 V DC, PoE (IEEE802.3 af/at compliant) Current draw: 500 mA max (12VDC), 250 mA max. (24VDC), 6W max (PoE)
Input Current
250mA

Specifications

Brand Name Optex
Manufacturer Part Number RLS-2020S
Product Series RLS-2020
Product Type Motion Sensor

Technical information

Connectivity Technology Wired
Maximum Outdoor Detection Range 21m
Power Consumption 6.0000W

Certifications

Certifications & Standards UL Listed

Physical characteristics

Colour Silver
Depth 160.00mm
Form Factor Ceiling Mount, Pole Mount, Recessed Mount, Tripod Mount, Wall Mount
Height 146.00mm
Width 160.00mm

Power description

Input Current 250mA
Input Voltage 10.5-30V DC
Power Source PoE (Power over Ethernet)

Product information

Installation Type Hybrid (DIY + Professional)
Mount Type Ceiling Mount, Pole Mount, Recessed Mount, Tripod Mount, Wall Mount

Miscellaneous

Additional Information Detection method: Infrared laser scan Laser Protection class: Class 1 Power input: 10.5 to 30 V DC, PoE (IEEE802.3 af/at compliant) Current draw: 500 mA max (12VDC), 250 mA max. (24VDC), 6W max (PoE)

Attributes

Features Laser Scanner Technology
Input Voltage 10.5-30V DC
Power Source PoE (Power over Ethernet)
Additional Information Detection method: Infrared laser scan Laser Protection class: Class 1 Power input: 10.5 to 30 V DC, PoE (IEEE802.3 af/at compliant) Current draw: 500 mA max (12VDC), 250 mA max. (24VDC), 6W max (PoE)
Input Current 250mA

Optex RLS-2020S short-range laser detector

Optex RLS-2020S short-range laser detector

Who this is for

For the installer — this is the short-range laser detector supplied under Optex part number RLS-2020S. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a short-range laser detector made by Optex. The part number RLS-2020S is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this short-range laser detector is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact short-range laser detector I have been quoted? Check the manufacturer part number RLS-2020S against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against RLS-2020S answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
