Crimping & Punch-Down Tools

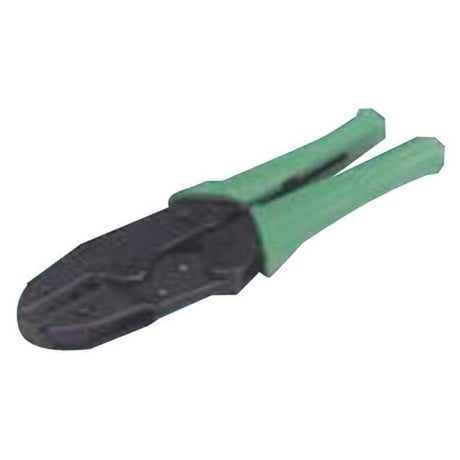

This page holds crimping and punch down tools for network and telecom cabling and BNC connectors. Connectix Cabling Systems supplies a universal RJ45 and RJ12 crimp tool, a Krone style IDC punchdown tool and installation and termination tool kits, and TRENDnet a crimp, cut and strip tool, a ratchet crimp tool and a 110 and Krone punch down tool. Comelit PAC adds a BNC connector gripper and Genie a crimp tool for RJ45 and RJ11 plugs.

Choosing Crimping & Punch-Down Tools

Choose by the job: crimping a plug, punching down a termination or stripping a cable.

Crimp tools

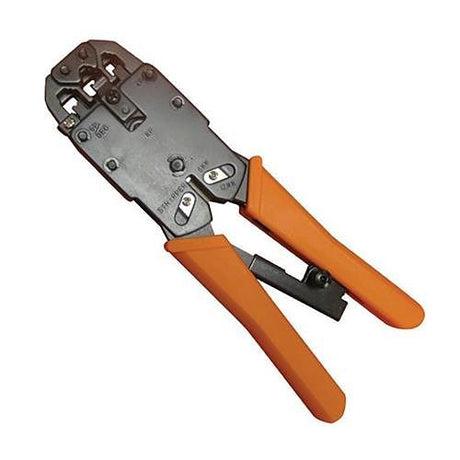

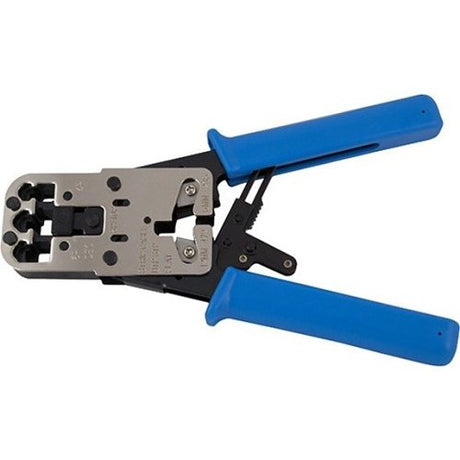

The Connectix Cabling Systems 00A-003-001-11 is a universal crimp tool that works with RJ45 and RJ12 plugs. The Genie GAT005 is a crimp tool for modular RJ45/RJ11 crimp plugs. The TRENDnet TC-CT68 crimps, strips and cuts cable for 8 and 6 position modular plugs: it functions for 8P/RJ-45 and 6P/RJ-12, RJ-11, so it crimps two sizes of plugs. The TC-CT68 has all steel construction, a built-in cutter and stripper, and a ratchet mechanism that keeps the tool closed when not in use. The TRENDnet TC-FCT is a ratchet crimp tool.

Punch down tools

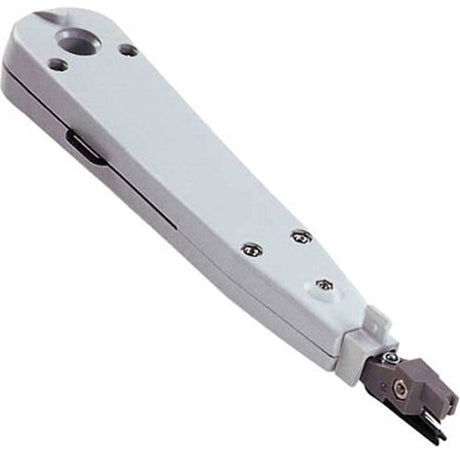

The TRENDnet TC-PDT is a punch down tool with 110 and Krone blades that inserts and cuts terminations in one operation. Its adjustable high and low actuation setting accommodates termination requirements or user preference. The Connectix Cabling Systems 00A-007-003-00 is a Krone style IDC punchdown tool for terminating the back of Connectix Cabling System RJ45 patch panels or modules.

Termination tool kit

The Connectix Cabling Systems 00A-011-001-20 is a termination tool kit from the XP Fit Plus range, with quick assembly in under two minutes.

ModelTool typeWorks with
Connectix Cabling Systems 00A-003-001-11Universal crimp toolRJ45 and RJ12 plugs
Genie GAT005Crimp toolModular RJ45/RJ11 crimp plugs
TRENDnet TC-CT68Crimp, cut and strip tool8P/RJ-45 and 6P/RJ-12, RJ-11
TRENDnet TC-PDTPunch down tool110 and Krone blades
Connectix Cabling Systems 00A-007-003-00Krone style IDC punchdown toolConnectix Cabling System RJ45 patch panels or modules

Related categories

See panels in patch panels, coax reels in coaxial cable, and the wider hand tools range.

Brands we stock in Crimping & Punch-Down Tools

Comelit PAC, Connectix Cabling Systems, Genie and TRENDnet.

Frequently asked questions

What is an RJ45 crimping tool used for?

An RJ45 crimping tool fits an RJ45 plug onto the end of a twisted-pair network cable, pressing the plug's contacts into the conductors and clamping the cable jacket. Check which plug sizes its die accepts, since some tools also take RJ11 or RJ12 plugs. A ratchet action helps make an even, complete crimp. The range here includes RJ45 crimp tools and a combined crimp, cut and strip tool.

What is a crimping tool?

A crimping tool is a hand tool that joins a connector or terminal to a cable by squeezing, or crimping, metal so it grips the conductor. Different dies suit different jobs, such as network plugs, coaxial connectors and insulated electrical terminals. Choose a tool made for the connector type you fit. The range here includes crimp tools for modular network and telephone plugs.

How do you use a crimping tool?

To use a crimping tool, prepare the cable end, push the conductors fully into the connector, then squeeze the connector in the matching die. For a network plug, strip the sheath, set the pairs in the right order and trim them square first. On a ratchet tool, keep squeezing until the handles release. Test the finished lead with a cable tester where you can.
