Outdoor & Weatherproof Sockets

Outdoor and weatherproof sockets bring mains power outside, either as a fixed power point or as temporary power on a lead. This collection holds Mercury fixed sockets with IP55 rated covers, the 429.917UK 1 gang, the 429.918UK 2 gang and the 429.919UK switch and socket, plus IP54 portable power: the 429.868UK rewireable socket, the 429.867UK socket on a 5m extension cable and the 429.880UK 2 gang garden extension reel.

Choosing Outdoor & Weatherproof Sockets

Choose an outdoor socket by whether you need a permanent power point or temporary power, how many outlets you need and how exposed the position is.

Fixed weatherproof sockets

The 429.917UK 1 gang socket, the 429.918UK 2 gang socket and the 429.919UK switch and socket are permanent power points with IP55 rated transparent PVC covers, and the 429.918UK and 429.919UK have two separate covers. They are for use outdoors in sheltered locations, and Mercury supplies each with 2 x M20 cable glands. The 429.917UK housing has 5 M20 cable gland knockouts; the 429.918UK and 429.919UK housings have 9.

Portable outdoor power

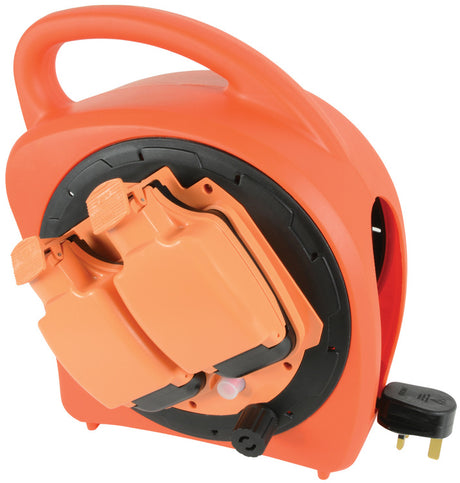

For temporary power, the 429.868UK is a 13A rewireable 1 gang socket with an IP54 rated cover, to be supplied via a 13A plug on 1.25mm² to 1.5mm² 3 core cable. The 429.867UK puts an enclosed IP54 socket on a 5m orange extension cable with an H-frame cable tidy for storage. The 429.880UK reel has 2 splashproof IP54 sockets on 20m of high visibility orange cable, with a 13A fused mains plug and a thermal cut-out to prevent overloading.

Protection ratings

The 429.917UK, 429.918UK and 429.919UK carry the higher IP55 rating. The portable 429.867UK, 429.868UK and 429.880UK are IP54 rated, and the 429.880UK sockets are splashproof. Check how much rain and spray a position gets before you fit a socket there.

ModelTypeRatingOutletsNotes
429.917UKFixed socketIP551 gangTransparent PVC cover
429.918UKFixed socketIP552 gangTwo separate covers
429.919UKFixed switch and socketIP551 socket, 1 switchTwo separate covers
429.868UKRewireable socketIP541 gang, 13ATemporary outdoor power
429.867UKSocket on extension cableIP541 gang, 13A5m orange cable
429.880UKGarden extension reelIP542 gang, 13A20m cable, thermal cut-out

Brands we stock in Outdoor & Weatherproof Sockets

Mercury.

Mercury makes every weatherproof socket and reel in this collection.

Related categories

See plug sockets for indoor circuits, enclose exterior connections in junction boxes, add outdoor switches, compare leads in extension leads and cable reels and commando plugs and connectors, light the space with outdoor lighting, or read our Help & Support guides on IP ratings.

Frequently asked questions

Should I fit a fixed outdoor socket or use a portable one?

Fit a fixed socket where you want a permanent outdoor power point, and use a portable one for occasional jobs. The 429.917UK, 429.918UK and 429.919UK are permanent points with IP55 rated covers. The 429.868UK, 429.867UK and 429.880UK provide temporary outdoor power.

What is the difference between the IP54 and IP55 sockets here?

The fixed 429.917UK, 429.918UK and 429.919UK carry IP55, a higher rating than the IP54 of the portable 429.867UK, 429.868UK and 429.880UK. The 429.880UK sockets are splashproof. The IP55 models are for use outdoors in sheltered locations, so choose a sheltered wall where you can.

Which outdoor extension suits garden tools?

A lead with enclosed weatherproof sockets, such as the 429.880UK reel or the 429.867UK extension. The 429.880UK gives 2 splashproof IP54 sockets on 20m of high visibility orange cable, with a 13A fused plug, a thermal cut-out, a carry handle and a wide base. For shorter runs, the 429.867UK has one IP54 socket on a 5m orange cable and comes with an H-frame cable tidy.

What comes with the fixed outdoor sockets for wiring?

Mercury supplies 2 x M20 cable glands with the 429.917UK, 429.918UK and 429.919UK for bringing the supply cable into the housing. The 429.917UK housing has 5 M20 cable gland knockouts, and the 429.918UK and 429.919UK housings have 9. The 429.917UK is quick and easy to install, but the connection to a mains circuit is work for a competent electrician.

What is a rewireable outdoor socket?

It is a weatherproof socket that is wired to its own supply cable rather than fixed to a wall. The 429.868UK is a 13A rewireable temporary outdoor power socket with an IP54 rated cover, to be supplied via a 13A plug fitted with 1.25mm² to 1.5mm² 3 core cable to BS EN 50525, and it conforms to BS1363/A.

Is there an outdoor socket with its own switch?

Yes, the Mercury 429.919UK combines a single switch and a socket in one weatherproof housing. It has two separate IP55 rated transparent PVC covers and a tough, durable housing for sheltered outdoor locations. It comes with two M20 cable glands and has 9 M20 cable gland knockouts for versatile wiring options.
