Gate Automation & Motors

Gate automation here includes swing gate kits, underground and sliding gate motors, control boards, safety devices and CAME spares. The CAME FERNI-P kit suits a pair of swing gates up to 400kg at 4m per leaf, the CAME FROG-P is hidden below ground with only the casing lid showing, and the LiftMaster SL1000EVK moves sliding gate wings up to 1000 kg and 12 m wide. CAME makes most of the products on this page.

Choosing Gate Automation & Motors

Choose by the type of gate, swing or sliding, then by the weight and width of the leaves, and then by how the motor is fitted.

Swing gate kits

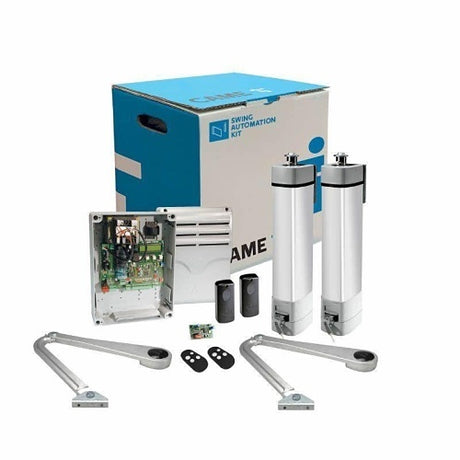

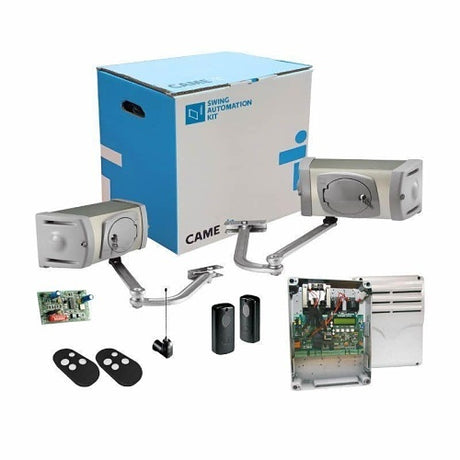

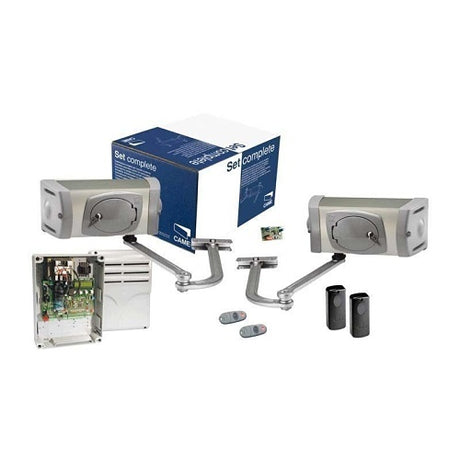

The CAME FERNI-P kit is for a pair of swing gates up to 400kg at 4m or up to 800kg at 2m per leaf, for large gate posts. The CAME STYLOA-P24 is a 24V articulated drive arm kit for a pair of swing gates up to 100kg at 1.8m per leaf, for smaller posts. The LiftMaster LA300EVK-01 is a swing gate operator set for 2-wing gates up to 3.0 metres wide, with 24V DC motors and myQ smart control.

Underground swing gate motors

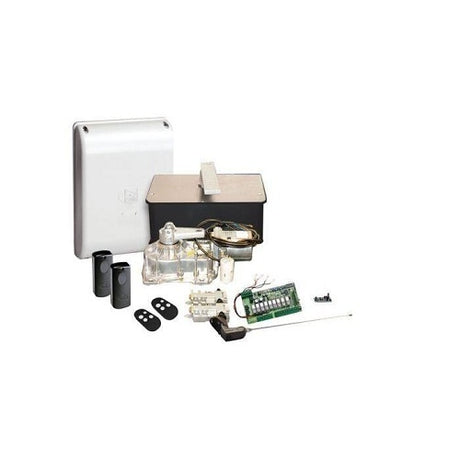

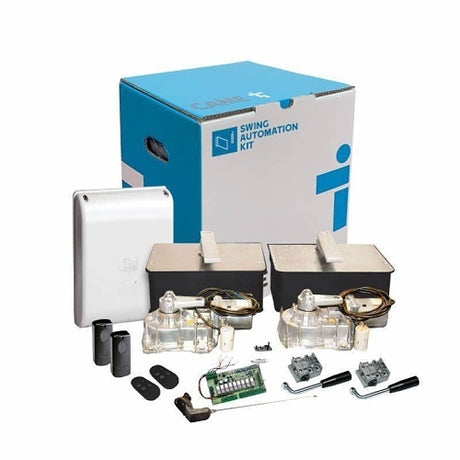

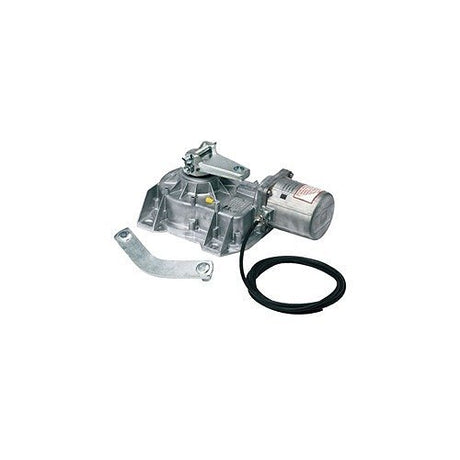

The CAME FROG-P suits damp, below ground level conditions: the pivot arm becomes the bottom hinge for the leaf, and once installed only the lid of the casing box shows, flush to the driveway. The CAME FROG-S is a single leaf kit for swing gates up to 400 kg and 3.5m wide, rated IP67, and can open up to 180° with the FL-180 accessory.

Sliding gate motors

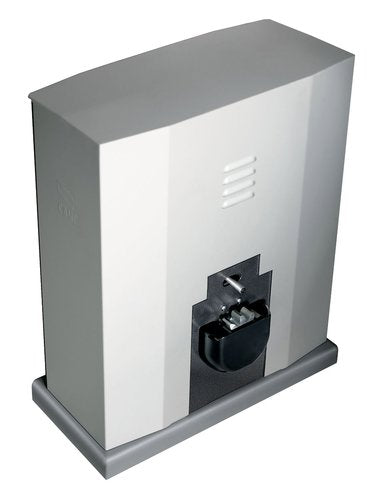

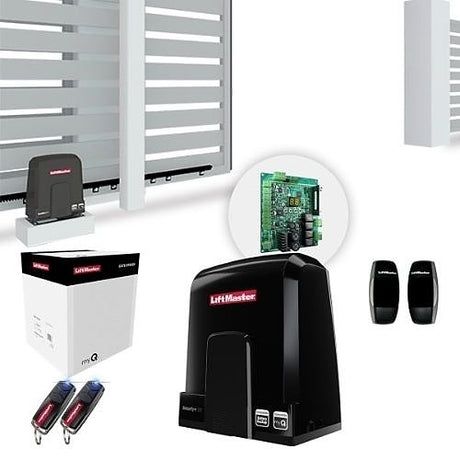

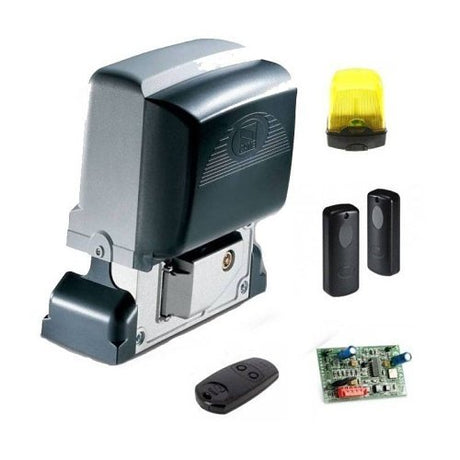

The CAME BX-78-KIT is a sliding gate kit for gates up to 800kg with a 230V sliding gate motor. The LiftMaster SL1000EVK is a sliding gate operator for gate wings up to 1000 kg and 12 m width, and the CAME BY3500T is an industrial motor for sliding gates up to 3500 kg, powered by 230 - 400 V AC three-phase.

Control and safety

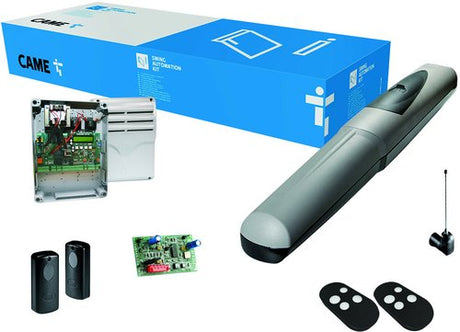

The CAME AXO-S3 kit has built-in obstacle detection, integrated open and close limits and an LCD display for programming. The CAME BR-ELBA is a safety edge monitoring relay with a single N/C output and selectable 12/24 VACDC operation, the CAME AF868 is a plug-in radio card for commands on 868.35 Mhz, and the CAME 3199ZA4 is a replacement control board for two 230V motors.

ModelGateRated for
CAME FERNI-PPair of swing gates400kg at 4m or 800kg at 2m per leaf
CAME FROG-PPair of swing gates, below ground400kg at 3.5m or 800kg at 2m per leaf
CAME STYLOA-P24Pair of swing gates, 24V100kg at 1.8m or 150kg at 0.8m per leaf
CAME BX-78-KITSliding gateUp to 800kg
LiftMaster SL1000EVKSliding gate1000 kg and 12 m width
CAME BY3500TSliding gate, industrialUp to 3500 kg

Related categories

See gate remote controls, car park barriers and access control systems.

Brands we stock in Gate Automation & Motors

BPT, CAME, Hikvision and LiftMaster.

Frequently asked questions

Can you automate existing gates?

Yes, many existing swing and sliding gates can be automated, as long as the gate is sound, moves freely by hand and the posts or track can carry a motor. Check the leaf weight and width against the motor's rating, and consider an underground motor where a visible arm would not suit. The range here includes swing and sliding gate kits, underground motors and control boards.

What is gate automation?

Gate automation uses an electric motor, a control board and safety devices to open and close a swing or sliding gate without pushing it by hand. Commands usually come from a remote control, keypad or intercom, and photocells or safety edges should stop or reverse the gate if something is in its way. The range here includes gate operator kits, spare parts and a plug-in radio card.
