CAME FROG-P gate kit
About this product
Please note: this is a non-returnable item (excluding faulty goods)
CAME FROG-P is a gate kit.
This kit is for use with a pair of swing gates up to 400kg at 3.5m or up to 800kg at 2m per leaf. Please note- It is advised to spec your jobs with safety edges. It is necessary that at least one is used to achieve force testing compliance.
As the name implies, FROG is suited to work in damp, below ground level conditions. It is designed to automate either metal or wooden gates. In every case the pivot arm becomes the bottom hinge for the leaf.
FROG is suited to the customer who wants a reliable, long lasting gate operator, but also does not want to see any type of armature attached to the inside of the gate. Once it has been installed there is no sign of the mechanism other than the lid of the casing box which is flush to the driveway. The irreversible gearmotor firmly locks the gates, and therefore does not need an electric locking system which can malfunction.
Another advantage of the irreversible gearmotor is that they are very difficult to force open, providing added security against burglars. Other functions include Pedestrian opening allowing the opening of one leaf for limited access, and the ability to stop the operation of the gate immediately via the radio transmitter. In the event of a power cut the FROG system has a key operated manual release mechanism which is easily accessible from both sides of the gateway.
Key features
- Watertight
- Easy installation
- Gate can be opened with key or lever in case of power cut
- Stainless steel rustproof case
- Operating mechanism is hidden from view
If you are matching this to an existing installation, work from the FROG-P part number rather than the description.
-
Download
- FROG-P — Product Manual
Specifications
Miscellaneous
Power description
Attributes
Specifications
| Brand Name | CAME |
|---|---|
| Manufacturer Part Number | FROG-P |
Miscellaneous

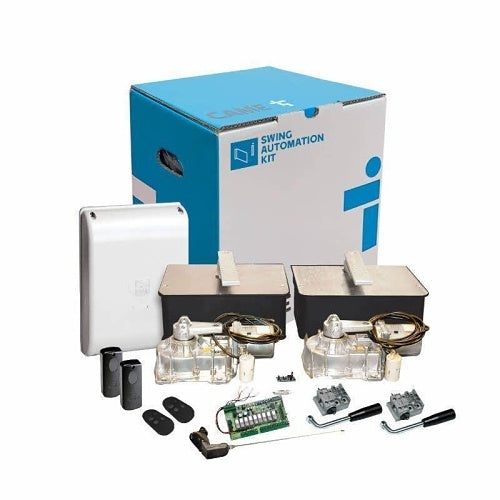

| Package Contents | 1 x AF43S Plug-in Radio Frequency Code (433.92MHz), 1 x DIR-10 Pair Safety Photocells, 1 x TOP-A433N Tuned Antenna, 1 x ZM3E Multi-Function Control Panel, 2 x A4364 Release Mechanisms with Lever Keys, 2 x FROG-AE 230v A.C Gearmotors, 2 x FROG-BN Foundation Cases, 2 x TOP-432NA Dual Frequency 4-Button Fixed Code Transmitters (433.92MHz) |
|---|
Power description
| Input Voltage | 230V |
|---|
Attributes
| Input Voltage | 230V |
|---|
