CCTV Audio & Microphones

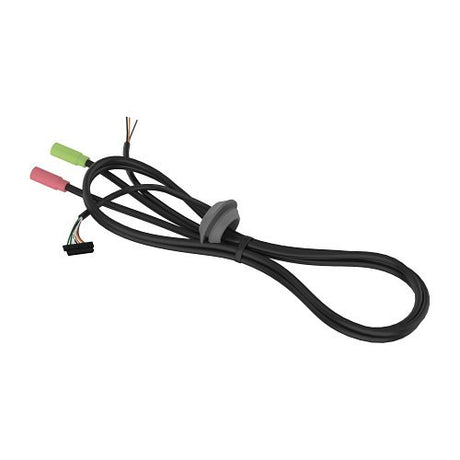

CCTV microphones add sound to video surveillance, connecting to a network camera, audio module or audio bridge so audio can be captured alongside the picture from the same scene. The collection includes Axis Communications digital, indoor and outdoor microphones, a microphone kit, an audio extension kit, Dahua Technology pickup microphones, a Hanwha Vision audio beacon and audio cable, and a Comelit PAC ultra-sensitive microphone.
Hanwha Vision SPS-A100M audio beacon
£ 593 40
Choosing CCTV Audio & Microphones
A CCTV microphone is a microphone that captures audio for a surveillance system; the Axis 01561-001, for example, is the AXIS T8355 Digital Microphone, designed for surveillance in large areas. Choose the connection the camera or audio module supports, then the mounting and whether the microphone will sit indoors or outdoors.
Digital and long cable runs
The AXIS T8355 has an S/PDIF output that carries digital audio between the microphone and the network product, with lossless transfer and electromagnetic immunity for cables as long as 100 m. The 01590-001 Digital Audio Extension Kit pairs with it to send the signal over a network cable as far as 100 m, and the cable can run safely near power cables.
Camera and 3.5mm microphones

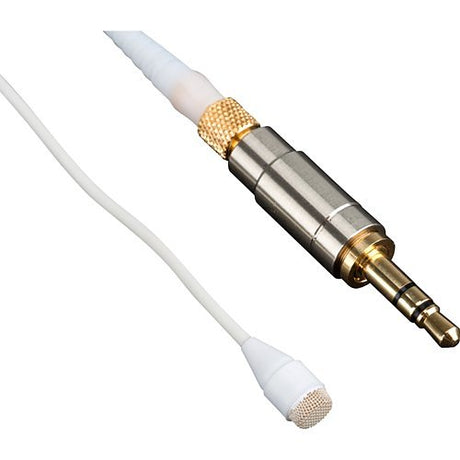

The 5032-531 is the AXIS T8353A, an omnidirectional microphone with a 3.5 mm connector that gives better audio than a camera's internal microphone. The 01575-001 and 01963-001 device microphones fit specific Axis camera series and have an ultra-low noise SNR of 80 dBA, and the 5505-041 is a plastic holder for mounting a microphone on a wall, ceiling or hard surface.
Indoor, outdoor and pickup microphones

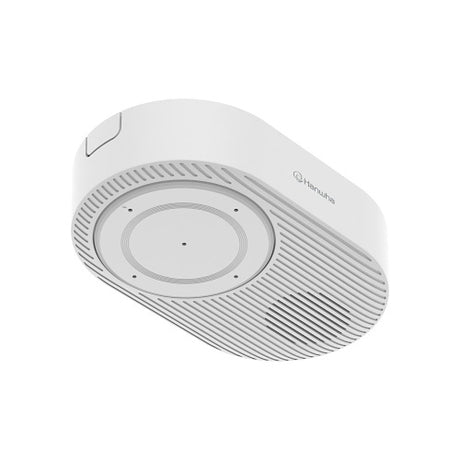

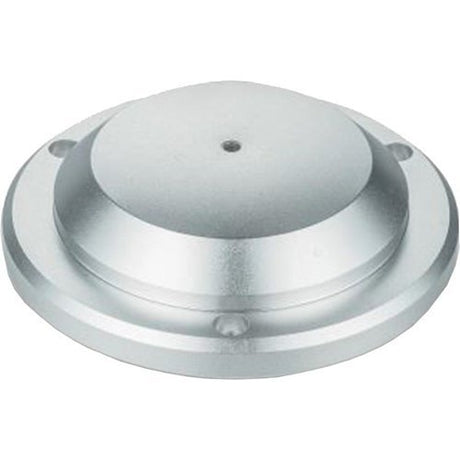

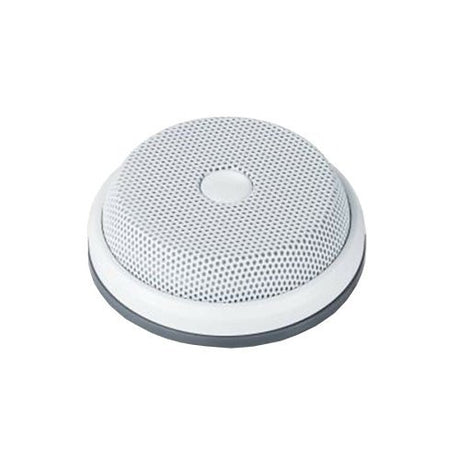

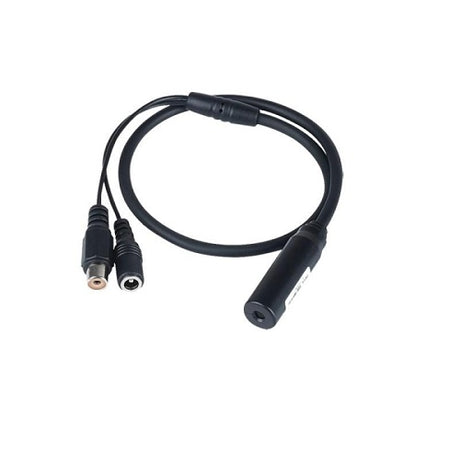

The 02269-001 AXIS TU1001-VE is an outdoor microphone rated IK10 and IP66 that connects to a device with a 3.5mm audio input, and the 02270-001 TU1001-V is an indoor analog microphone with a flat design for a wall, ceiling or single gang box. The Dahua DH-HAP320-V is an omnidirectional pickup microphone with ambient noise cancellation and an IP66 rating. The Comelit PAC 43610 is an ultra-sensitive microphone for clear audio capture. The Hanwha Vision SPS-A100M audio beacon combines a speaker with five digital microphones and classifies sounds such as glass break and screams.
Microphones at a glance
| Model | Maker | Type | Key detail |
|---|---|---|---|
| 01561-001 | Axis Communications | Digital microphone | S/PDIF output |
| 5032-531 | Axis Communications | Omnidirectional microphone | 3.5 mm connector |
| 02269-001 | Axis Communications | Outdoor microphone | IK10, IP66 |
| 02270-001 | Axis Communications | Indoor analog microphone | IK10, flush mounting |
| DH-HAP320-V | Dahua Technology | Omnidirectional pickup | IP66, noise cancellation |
| SPS-A100M | Hanwha Vision | Audio beacon | Five digital microphones |
| 43610 | Comelit PAC | Ultra-sensitive microphone | Clear audio capture |
Related pages
See CCTV cameras with audio and CCTV installation accessories.
Brands we stock in CCTV Audio & Microphones
Axis Communications, Comelit PAC, Dahua Technology and Hanwha Vision.
Frequently asked questions
What is a CCTV microphone?
A CCTV microphone picks up sound so a camera or recorder can capture audio alongside video. It connects to the camera's audio input or to a separate audio device, and comes in indoor, outdoor and vandal-resistant forms. Check that recording sound is justified and signposted on your site. The range here includes outdoor and omnidirectional microphones, plus an indoor vandal-resistant model.
How do you add a microphone to a CCTV camera?
Check that the camera has an audio input, then connect a compatible microphone to it. Power the microphone from the camera or its own supply as it requires, and turn on audio in the camera or recorder settings. Mount the microphone close to the area you want to hear and away from wind and fans. The range here includes microphones, a microphone holder and an audio extension kit.
