CCTV Cameras with Audio

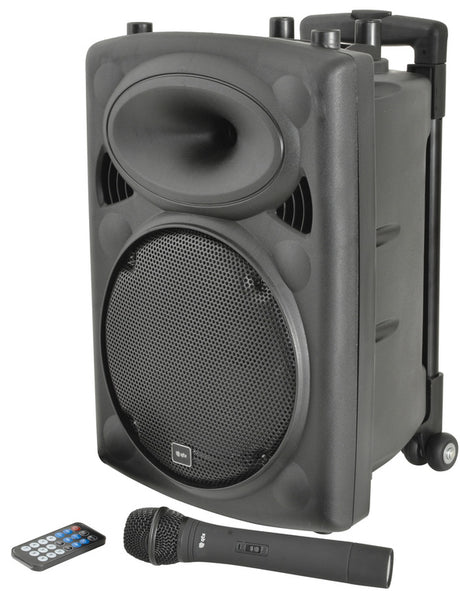

CCTV cameras with audio add sound to the picture through a built-in microphone and, on some models, a speaker for two-way talk. The page covers Turbo HD cameras that carry audio over coax and IP cameras on PoE or Wi-Fi, mostly from Hikvision, with TP-Link VIGI and HiLook models, plus Hikvision network cabinet speakers, a Maxhub conference camera and a QTX portable PA system.

Choosing CCTV Cameras with Audio

Decide first whether you need to hear the scene or also speak into it, then match the camera to the recorder and cabling you have.

Microphone or two-way audio

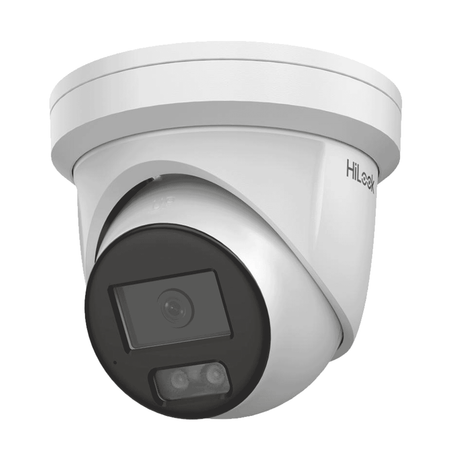

A camera with a built-in microphone records sound with the video. The DS-2CD2343G2-IU turret, the DS-2CD2543G2-IWS mini dome and the HiLook IPC-T289H-MU each have one. Two-way audio adds a speaker, so you can talk to a visitor or warn someone off: the DS-2CD2047G3-LI2UY/SL, DS-2CD2347G3-LIS2UY/SL and DS-2CV2041G2-IDW have a microphone and a speaker, as do the TP-Link VIGI S345 and S445.

Turbo HD cameras and audio over coax

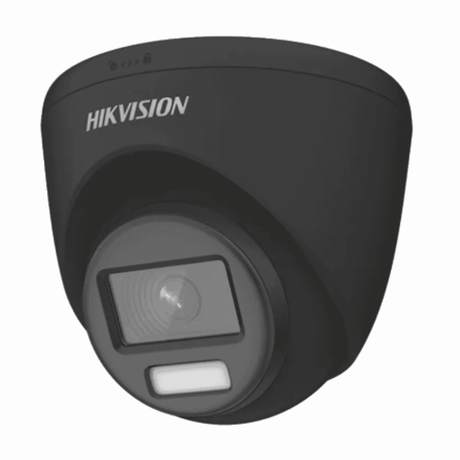

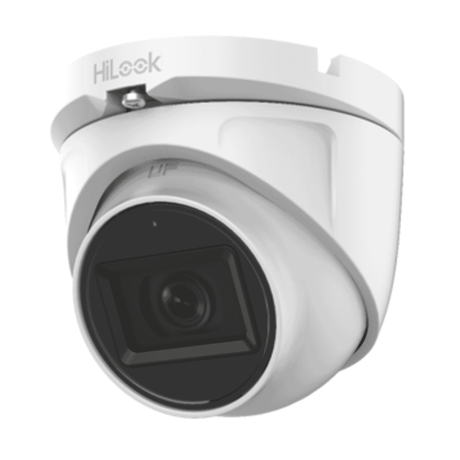

On an analogue system the sound travels down the same coax as the video, known as audio over coax (AoC). The DS-2CE76D0T-ITMFS, DS-2CE72KF0T-LFS and HiLook THC-T120-MS have a built-in microphone with AoC, and the DS-2CE70DF3T-PTLXTS adds a 2 W speaker for two-way audio over coax. The recorder has to support AoC: the DS-2CE72KF0T-LFS requires a compatible recorder, and the THC-T120-MS is paired with an AoC-capable TurboHD DVR.

Deterrence and colour at night

Several audio cameras can also sound a warning. The DS-2CE72DF3T-LXTS has a built-in microphone, a 2 W speaker and an on-camera flashing light and siren, and the DS-2CD2047G3-LI2UY/SL pairs its smart hybrid light with an active strobe and audible alarm. ColorVu models such as the DS-2CE72KF3T-LSYE, which has white light and IR up to 40m, keep the picture in colour after dark.

PoE, Wi-Fi and zoom

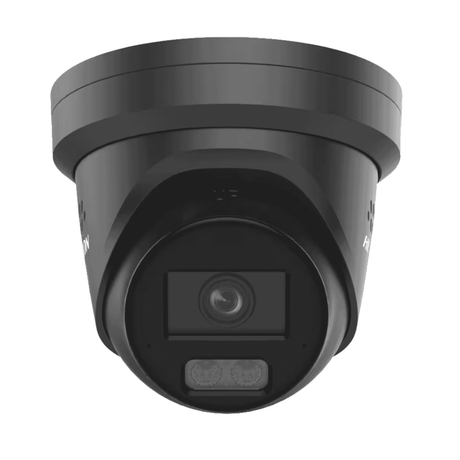

PoE lets an IP audio camera take power and data over one network cable. The DS-2CD2343G2-IU takes PoE (802.3af) or 12 VDC, and the DS-2CD2347G3-LIS2UY/SL PoE (IEEE 802.3at) or 12 VDC. Where a cable run is hard, the DS-2CV2041G2-IDW connects over 2.4 GHz Wi-Fi. The TP-Link S445ZI has a 2.7–13.5mm motorised varifocal lens.

CameraSignalAudioAlso
DS-2CE76D0T-ITMFSTurbo HD, 2 MPMicrophone, AoCEXIR to about 30 m
DS-2CE70DF3T-PTLXTSTurbo HD, 2 MPTwo-way over coaxSiren and flashing light
DS-2CE12KF3TP-DLSTurbo HD, 3KMicrophone, AoC180° dual-lens view
THC-T120-MSTurbo HD, 2MPMicrophone, AoCIP66 metal housing
DS-2CD2343G2-IUIP, 4 MPMicrophoneAcuSense, PoE
DS-2CD2347G3-LIS2UY/SLIP, 4 MPTwo-wayColorVu, siren
DS-2CV2041G2-IDWWi-Fi IP, 4 MPTwo-wayIP66 housing
IPC-T289H-MUIP, 8 MPMicrophoneColorVu, PoE

Related categories

Browse the wider CCTV cameras range and wired CCTV cameras, record Turbo HD audio on DVRs, and finish the job with CCTV installation accessories.

Brands we stock in CCTV Cameras with Audio

Hikvision, HiLook, Maxhub, QTX and TP-Link.

Frequently asked questions

Do CCTV cameras with a microphone record sound?

Yes, a camera with a built-in microphone sends sound with its video, and the recorder stores it if it supports that audio. IP models such as the DS-2CD2343G2-IU have a built-in microphone, and Turbo HD models such as the DS-2CE76D0T-ITMFS send audio over the coax. For audio over coax the recorder must support it: the DS-2CE72KF0T-LFS integrates with compatible recorders.

What is two-way audio on a CCTV camera?

Two-way audio means the camera has a speaker as well as a microphone, so you can listen and talk through it. The DS-2CD2047G3-LI2UY/SL uses array microphones and a built-in speaker for live talk and an audible deterrent, and the TP-Link S345 microphone and speaker let staff communicate with visitors through the VIGI app. On analogue systems the DS-2CE70DF3T-PTLXTS gives two-way audio over coax with a 2 W speaker.

What is audio over coax?

Audio over coax (AoC) carries the sound from a Turbo HD camera microphone along the same coaxial cable as the video. The DS-2CE72KF0T-LFS, DS-2CE12KF3TP-DLS and HiLook THC-T120-MS support it. The DVR must be AoC-capable to record the sound; the THC-T120-MS, for example, is paired with an AoC-capable TurboHD DVR, and the DS-2CE72KF0T-LFS requires a compatible recorder.

What is a WiFi camera with audio?

A WiFi camera with audio connects to the network wirelessly and has a built-in microphone, and some add a speaker for two-way talk. The Hikvision DS-2CV2041G2-IDW is a 4MP outdoor bullet camera with built-in 2.4 GHz Wi-Fi, two-way audio through its microphone and speaker for real-time talkback, EXIR 2.0 night vision to approximately 30 m and an IP66 housing.

Which audio cameras can sound an alarm?

Audio cameras that list a siren or an audible alarm function can sound a warning when their detection is triggered, on top of recording sound. The Hikvision DS-2CE72DF3T-LXTS turret gives on-camera audible and visual deterrence, the DS-2CE70DF3T-PTLXTS pairs a siren with a flashing light, and the DS-2CD2047G3-LI2UY/SL has an audible alarm. The TP-Link S445ZI can trigger audible alarms on events.

What is a zoom camera with audio?

A zoom camera with audio pairs a varifocal or motorised zoom lens, which changes how wide the view is, with a built-in microphone. The TP-Link VIGI InSight S445ZI is a 4MP turret with a 2.7-13.5mm motorised varifocal lens giving 5x optical zoom, a built-in microphone and IR night vision up to 60m. It takes PoE (802.3af/at) or 12V DC power and has an IP67-rated enclosure.
