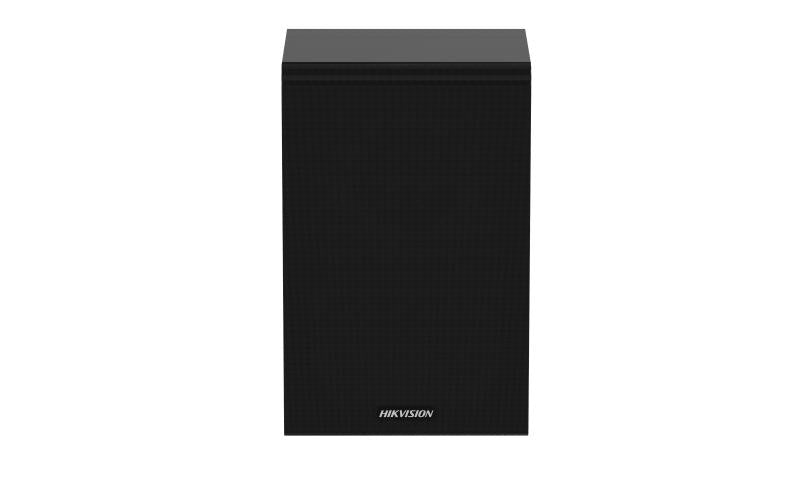

Hikvision DS-QAZ1110G1-B/EU Network Cabinet Speaker, 10W, Two-Way Audio
Free Delivery
Save £70.49
About this product
The Hikvision DS-QAZ1110G1-B is a 10 W network cabinet speaker with a full frequency 5.25′′ × 1 speaker unit, communicating over a wired network and Bluetooth. It supports schedule, live and emergency broadcast, alarm linkage, two-way audio and TTS, and works with clients including Hik-Connect, HikCentral Professional and Hik-Partner Pro.
Key features
- Rated power 10 W, max. acoustic pressure 98 dBSPL
- Full frequency 5.25′′ × 1 speaker unit with a 100 Hz to 20 kHz frequency response
- Coverage angle: horizontal 105°, vertical 103°
- Regular broadcast, live broadcast and emergency broadcast, plus alarm linkage and TTS
- Two-way audio with 2 MEMS microphones and AEC, AGC, ANS and DRC audio algorithms
- Wired network (RJ45 10 M/100 M Adaptive Ethernet port × 1) and Bluetooth 5.0 communication
- Built-in 4 GB EMMC with 1 GB of audio file storage for MP3 and WAV files
- Fixed resistance output (phoenix terminal, 8 Ω) that can be connected to an external sub speaker
Frequently asked questions
How is the DS-QAZ1110G1-B powered?
Power is 24 VDC/1.5 A, and an adapter is included in the packing list.
Does it connect by Bluetooth as well as the network?
Yes. The communication method is wired network and Bluetooth: an RJ45 10 M/100 M Adaptive Ethernet port × 1 and Bluetooth 5.0, 10 m.
Does it support two-way audio?
Yes. Two-way audio is supported, using 2 MEMS microphones with AEC, AGC, ANS and DRC audio algorithms.
What audio files can it store and play?
The audio file format is MP3, WAV. Local storage is a built-in 4 GB EMMC, with audio file storage of 1 GB.
What is in the box?
The packing list is Device × 1, Adapter × 1, Screw pack × 1, Installation sticker × 1 and Regulatory Compliance and Safety Information × 1.
Technical Details
Specifications
Brand
Hikvision
Model
DS-QAZ1110G1-B/EU
Manufacturer Part Number (MPN)
DS-QAZ1110G1-B/EU
Rated Power
10 W
Impedance
8 Ω
Max. Acoustic Pressure
98 dBSPL
Sensitivity (1 m, 1 W)
90 dB
Direction
All directions
Speaker Frequency Response
100 Hz to 20 kHz
SNR
83 dB
Speaker Unit
Full frequency 5.25′′ × 1
Coverage Angle
Horizontal: 105°; Vertical: 103°
Microphone
MEMS × 2
Microphone Sensitivity
-42 dBV/Pa
Microphone Sampling Rate
48 kHz
Audio Algorithm
AEC, AGC, ANS, DRC
Audio Bit Rate
G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps); Sampling bit width: 16 bits
Audio File Format
MP3, WAV
Broadcast
Regular broadcast, live broadcast, emergency broadcast
Two-Way Audio
Support
Network Protocol
IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
Client
Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
Communication Method
Wired network and Bluetooth communication
Bluetooth
Bluetooth 5.0, 10 m
Ethernet Interface
RJ45 10 M/100 M Adaptive Ethernet port × 1
Local Storage
Built-in 4 GB EMMC (Audio file storage is 1 GB.)
Audio In
3.5 mm audio interface × 1; Voltage Input × 1, COM 100 V
Audio Out
Fixed resistance output × 1, phoenix terminal, 8 Ω
Number Of Sub Speaker
24 V, 2.5 A, max. 60W: support 1* 10W sub speakers
Reset
Support
Volume Knob
Support
Power
24 VDC/1.5 A
Material
Wooden
Operating Temperature
-10 °C to 50 °C (14 °F to 122 °F)
Operating Humidity
＜90% (No condensation)
Dimension
180.6 mm × 156 mm × 280 mm (7.11" × 6.14" × 11.02")
Weight
Approx. 2.5 kg (5.51 lb.)
Packing List
Device × 1; Adapter × 1; Screw pack × 1; Installation sticker × 1; Regulatory Compliance and Safety Information × 1
Colour
Black
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-QAZ1110G1-B/EU |
| Manufacturer Part Number (MPN) | DS-QAZ1110G1-B/EU |
| Rated Power | 10 W |
| Impedance | 8 Ω |
| Max. Acoustic Pressure | 98 dBSPL |
| Sensitivity (1 m, 1 W) | 90 dB |
| Direction | All directions |
| Speaker Frequency Response | 100 Hz to 20 kHz |
| SNR | 83 dB |
| Speaker Unit | Full frequency 5.25′′ × 1 |
| Coverage Angle | Horizontal: 105°; Vertical: 103° |
| Microphone | MEMS × 2 |
| Microphone Sensitivity | -42 dBV/Pa |
| Microphone Sampling Rate | 48 kHz |
| Audio Algorithm | AEC, AGC, ANS, DRC |
| Audio Bit Rate | G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps); Sampling bit width: 16 bits |
| Audio File Format | MP3, WAV |
| Broadcast | Regular broadcast, live broadcast, emergency broadcast |
| Two-Way Audio | Support |
| Network Protocol | IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Client | Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone |
| Communication Method | Wired network and Bluetooth communication |
| Bluetooth | Bluetooth 5.0, 10 m |
| Ethernet Interface | RJ45 10 M/100 M Adaptive Ethernet port × 1 |
| Local Storage | Built-in 4 GB EMMC (Audio file storage is 1 GB.) |
| Audio In | 3.5 mm audio interface × 1; Voltage Input × 1, COM 100 V |
| Audio Out | Fixed resistance output × 1, phoenix terminal, 8 Ω |
| Number Of Sub Speaker | 24 V, 2.5 A, max. 60W: support 1* 10W sub speakers |
| Reset | Support |
| Volume Knob | Support |
| Power | 24 VDC/1.5 A |
| Material | Wooden |
| Operating Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Dimension | 180.6 mm × 156 mm × 280 mm (7.11" × 6.14" × 11.02") |
| Weight | Approx. 2.5 kg (5.51 lb.) |
| Packing List | Device × 1; Adapter × 1; Screw pack × 1; Installation sticker × 1; Regulatory Compliance and Safety Information × 1 |
| Colour | Black |
