Cat5e Network Cable

Cat5e network cable is twisted pair data cable for Gigabit Ethernet and other networking applications, supplied on reels and in boxes for installation in buildings and between them. Makers here include Belden, Securi-Flex, Connectix Cabling Systems, SFX Cables, Hikvision and Mercury, with unshielded U/UTP and shielded FTP and SF/UTP cable, LSZH, PVC, PE and plenum jackets, and outdoor and industrial versions.

Choosing Cat5e Network Cable

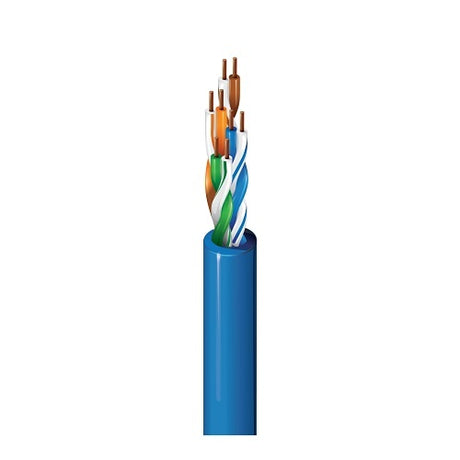

Cat5e cable is a Category 5e twisted pair data cable for Gigabit Ethernet networks; the Belden 1583ENH.00U305, for example, is a Category 5e U/UTP premise horizontal cable with four pairs of 24 AWG solid bare copper conductors and an LSZH jacket. Pick the jacket for where the cable runs, then the shielding and conductor type.

Indoor installation cable

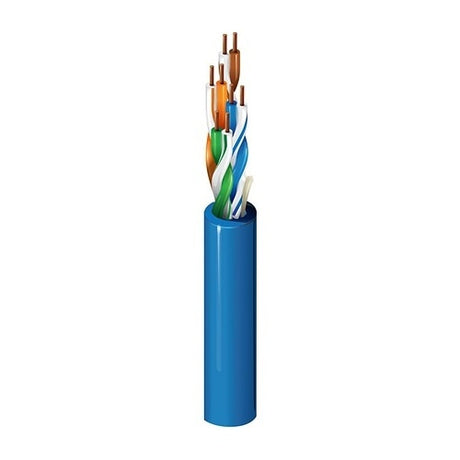

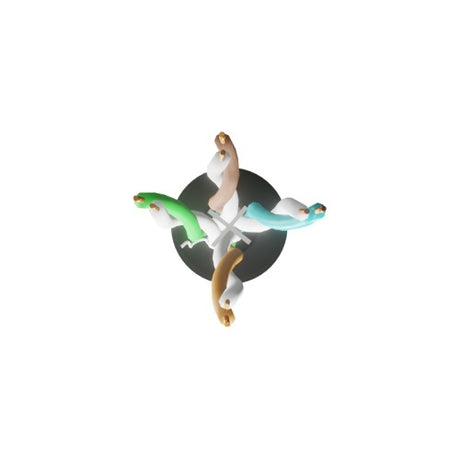

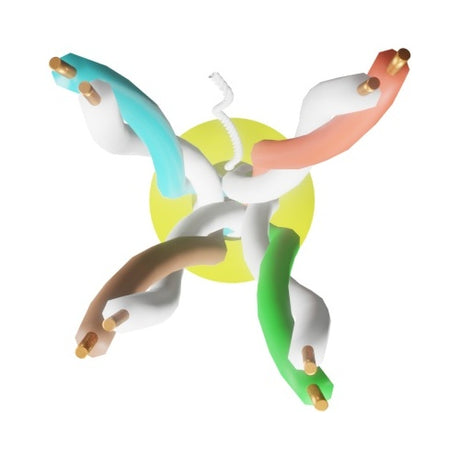

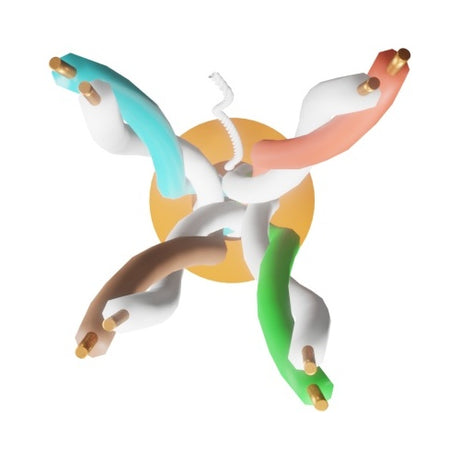

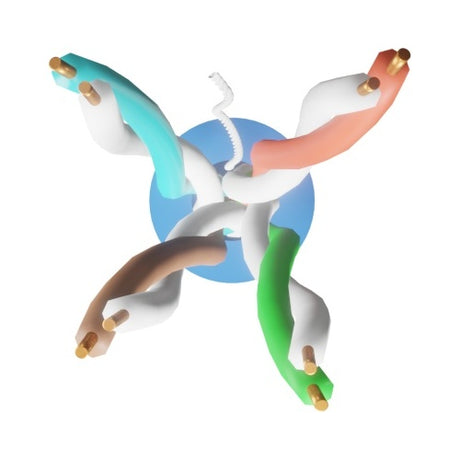

The Belden 1583A 002U1000 is a CAT5e premise horizontal cable rated 200 MHz, with a Riser-CMR PVC jacket on a 1000' (304.8m) reel. The Hikvision DS-1LN5EUSL5 is a Cat 5E U/UTP CPR Eca cable with a white LSZH sheath, and the Connectix 001-003-003-77 is a Cat5e UTP solid installation cable with an FR-LSZH sheath rated CPR Class Cca. The Belden IBDN25P 0081000 is a 25-pair Category 5e premise backbone cable with a plenum-CMP jacket, and Securi-Flex SFX/C5-UTP-LSZH-D cable colours include blue, green, orange and yellow, with an LSZH sheath.

Outdoor cable

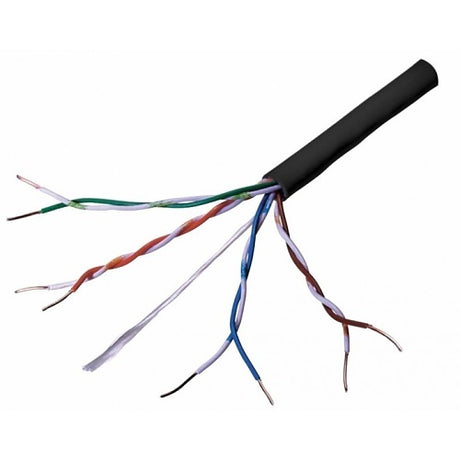

The Mercury 808.023UK is an outdoor U/UTP cable with a PE sheath, marked at 1 metre intervals, and the Connectix 001-003-004-65 is an external cable for runs from building to building, on catenaries, in ducts or on the sides of buildings. The Belden 1583EPE.00500 has a PE jacket.

Industrial and patch cable

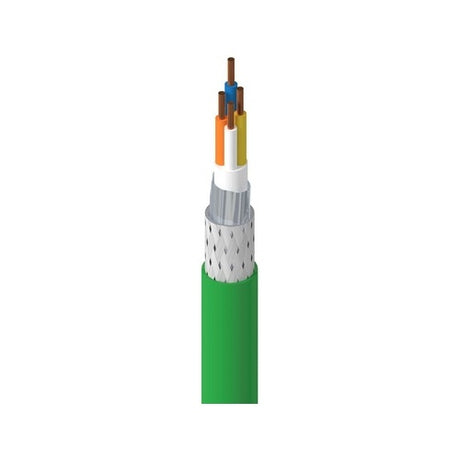

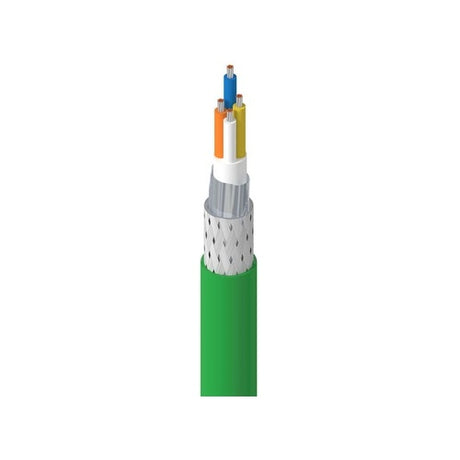

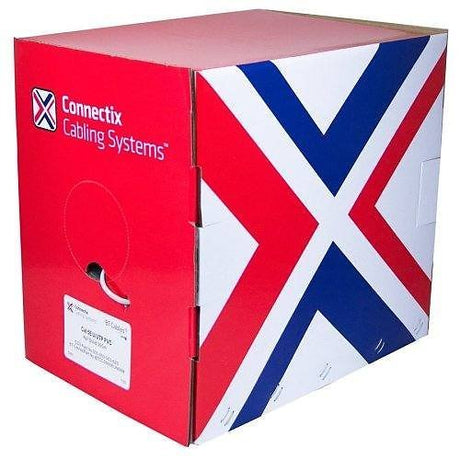

Belden DataTuff 5E cables have SF/UTP overall braid and foil shielding: the 70006E.01305 has 22AWG solid conductors for PROFINET Type A, the 70007E.01305 22AWG stranded conductors for PROFINET Type B, and the 74002PU.01500 a halogen-free PUR jacket with sunlight and oil resistance. The Connectix 001-003-002-81 is a flexible Cat5e UTP patch cable for making RJ45 patch leads.

Cables at a glance

ModelConstructionJacketUse
1583ENH.00U305U/UTP, 24 AWG solidLSZHHorizontal and backbone
1583A 002U1000U/UTP, 24AWG solidRiser-CMR PVCPremise horizontal
DS-1LN5EUSL5U/UTPLSZH, CPR EcaInstallation
808.023UKU/UTPPEOutdoor
70006E.01305SF/UTP, 22AWG solidPVCIndustrial, PROFINET Type A
IBDN25P 008100025-pair U/UTPPlenum-CMPBackbone

Related pages

See category 6 network cable, category 6A network cable and network cables and accessories.

Brands we stock in Cat5e Network Cable

Belden, Connectix Cabling Systems, Hikvision, Securi-Flex and SFX Cables.

Frequently asked questions

What is the difference between Cat5 and Cat5e cable?

Cat5e, or enhanced Category 5, tightened the crosstalk limits of the older Cat5 standard so it carries Gigabit Ethernet reliably. Cat5 is no longer installed in new networks, so Cat5e is the entry-level choice today, and it is backwards compatible with Cat5 equipment. The range here includes Cat5e cable for Gigabit networks.

What speed does Cat5e cable support?

Cat5e supports Gigabit Ethernet, 1,000 Mbps, over a standard channel of 100 metres, and is rated to 100 MHz. That covers typical home and office links, PoE cameras and access points. For 10 Gigabit links, choose a higher-category cable instead. The range here includes Cat5e cable in PVC, LSZH and outdoor PE sheaths.

What is Cat5e cable?

Cat5e cable is four-pair twisted copper network cable made to the Category 5e standard, used for Ethernet, PoE devices such as cameras and access points, and telephone links. It comes as solid-core reels for fixed installation and as stranded cable for patch leads, in indoor and outdoor sheaths. The range here includes solid and stranded Cat5e cable.
