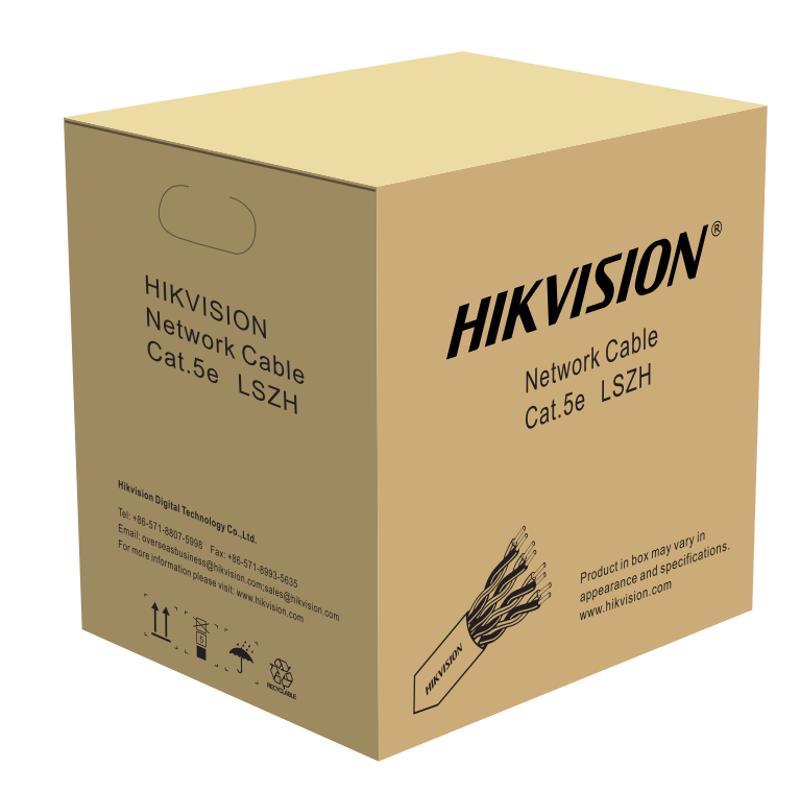

Hikvision DS-1LN5EUSL5 Cat5e U/UTP LSZH CPR Eca Cable, 305m, White
Save £25.33
About this product
The Hikvision DS-1LN5EUSL5 is a Cat 5E U/UTP CPR Eca cable with a solid-bare copper conductor and a white LSZH sheath, supplied as 305 ± 1.5 m. It is compliant with ANSI/TIA-568.2-D, IEC61156 and ISO/IEC11801, and gives excellent performance in the Fluke 100-meter channel test while continuously loaded with 57 V/1 A DC power (PoE).
Key features
- Cat 5E U/UTP construction
- Solid-bare copper conductor, 0.50 ± 0.005 mm 24AWG
- LSZH sheath, usage scenario: indoor
- Compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801 and RoHS 2.0
- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature
- Excellent performance in the Fluke 100-meter channel test while continuously loaded with 57 V/1 A DC power (PoE)
- Sheath with high tensile and compressive strength
- 305 ± 1.5 m length
Frequently asked questions
Is the DS-1LN5EUSL5 for indoor or outdoor use?
The usage scenario is indoor.
Is the conductor solid copper?
Yes. The conductor material is solid-bare copper, with a conductor diameter of 0.50 ± 0.005 mm 24AWG.
How long is the cable?
The length is 305 ± 1.5 m.
Has it been tested with PoE?
It gives excellent performance in the Fluke 100-meter channel test while continuously loaded with 57 V/1 A DC power (PoE).
What is its fire-resistance class?
CPR Eca, with an LSZH sheath.
Technical Details
Specifications
Brand
Hikvision
Model
DS-1LN5EUSL5
Manufacturer Part Number (MPN)
DS-1LN5EUSL5
Category
Cat 5E
Structure
U/UTP
Fire Resistance
CPR Eca
Usage Scenario
Indoor
Sheath Material
LSZH
Sheath Color
White
Conductor Material
Solid-Bare Copper
Conductor Diameter
0.50 ± 0.005 mm 24AWG
Insulation Diameter
0.90 ± 0.05 mm
Length
305 ± 1.5 m
Rip Cord
Yes
Separator
No
Colour
White
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-1LN5EUSL5 |
| Manufacturer Part Number (MPN) | DS-1LN5EUSL5 |
| Category | Cat 5E |
| Structure | U/UTP |
| Fire Resistance | CPR Eca |
| Usage Scenario | Indoor |
| Sheath Material | LSZH |
| Sheath Color | White |
| Conductor Material | Solid-Bare Copper |
| Conductor Diameter | 0.50 ± 0.005 mm 24AWG |
| Insulation Diameter | 0.90 ± 0.05 mm |
| Length | 305 ± 1.5 m |
| Rip Cord | Yes |
| Separator | No |
| Colour | White |
