Thermostats & Controls

Thermostats and controls decide when a heating system runs and how warm it keeps a room or a hot water cylinder. Most models here are Sangamo thermostats, from simple dial and mechanical stats to programmable, wireless and tamperproof versions. The page also holds Wi-Fi smart thermostats with receivers, a three-channel heating and hot water kit, and the Honeywell Y6H920RW5031 smart thermostat kit that works through the Resideo app.

Choosing Thermostats & Controls

Match the control to the heating system first, then to the people who will use it and how often the settings change.

One room, one zone

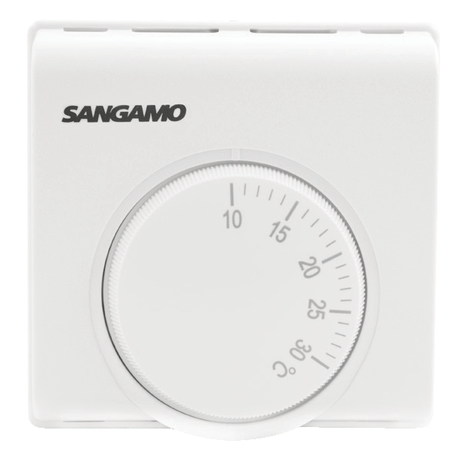

For a single heating zone, a room stat on the wall is enough. The Sangamo Choice CHPRSTAT has a large temperature adjustment dial with a call for heat indication LED, and the CHPRSTATD swaps the plain dial for a large dial with a digital display, running on batteries. The CHOICE RSTAT1 is a mechanical room thermostat whose relay is rated 10 A resistive and 3 A inductive.

Setting it from a phone

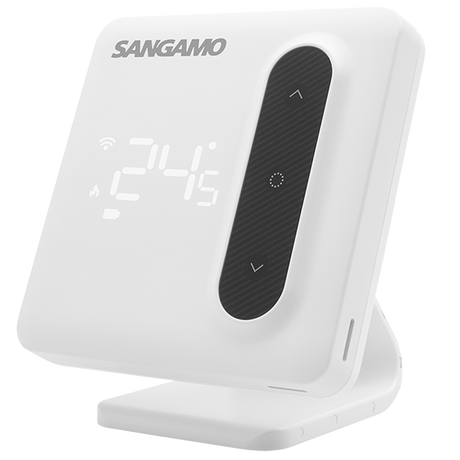

The Sangamo CHPWIFI and the Fort ECSPST are Wi-Fi controlled thermostats sold with a receiver, offering remote monitoring and scheduling. The Honeywell Y6H920RW5031 kit’s smart thermostat can follow a schedule or use location-based geofencing from your smartphone, and integrates with Apple Home and Amazon Alexa.

Heating with stored hot water

The Y6H920RW5031 thermostat is suitable for Sundial S, Y and W plan stored hot water systems and has 6 on/off hot water periods kept separate from the heating. The CHSTAT3CHK controls the hot water and 2 heating zones from 2 RF programmable thermostats and a receiver with 3 independent channels. On the cylinder itself, the CHOICE CSTAT fixes with the strap and hooks provided.

Tamperproof and frost versions

Where settings should stay put, the CHPRSTATT is a tamperproof electronic thermostat and the CHOICE RSTAT1T comes complete with a tamperproof cover. The CHOICE FSTAT1 frost thermostat suits surface or switch box mounting.

ModelControlLink or power
CHPRSTATElectronic dialCall for heat LED
CHPRSTATDDigital displayBattery powered
CHOICE RSTAT1MechanicalRelay 10 A resistive

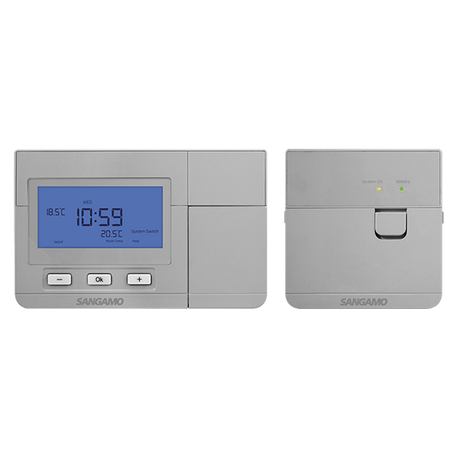

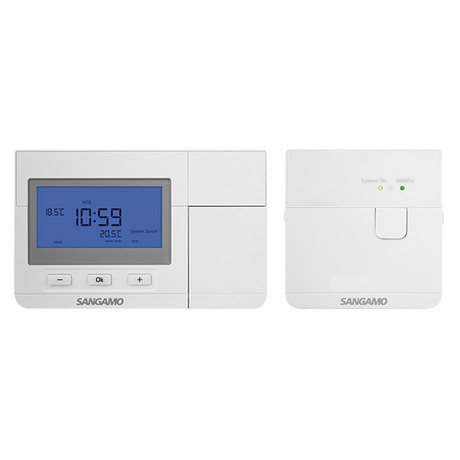

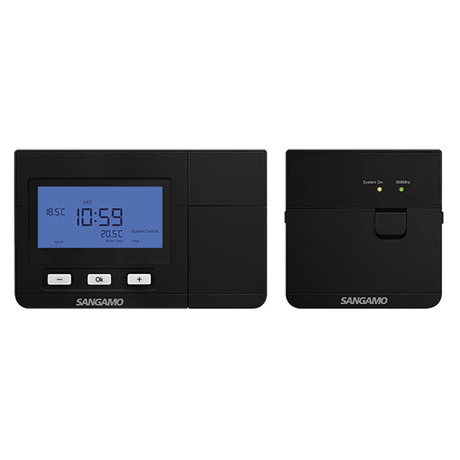

CHPRSTATDPRF24 or 7 day programmeWireless to a receiver
CHPWIFISmart, app schedulingWi-Fi
Y6H920RW5031Smart touch-screen, geofencingWi-Fi, Resideo app
CHSTAT3CHKHeating and hot water, 3 channelsRF thermostats, Wi-Fi

Related categories

The Sangamo range on its own is in Sangamo thermostats. For the wider heating picture see heating and ventilation, and for app-driven devices elsewhere in the home see smart home and automation.

Brands we stock in Thermostats & Controls

ESP, Honeywell Commercial Security and Honeywell Home.

Frequently asked questions

What does a thermostat controller do?

A thermostat controller switches a heating system on and off to hold the temperature you set. Room stats sense the air in a room, cylinder stats watch stored hot water, and frost stats bring the heating on to stop pipes freezing. Some controllers add timed programmes, wireless links or app control. The range here includes room, cylinder, frost and smart thermostats.

What is a wireless room thermostat?

A wireless room thermostat is a wall unit that sends its call for heat by radio to a receiver wired to the boiler or wiring centre. The receiver then switches the boiler on or off. With no cable to the wall unit, you can site it where the room temperature is typical and move it later if needed. The range here includes wireless thermostats sold with matching receivers.

How does a room thermostat work?

A room thermostat senses the air temperature and closes a switch to call for heat when the room drops below its setting. Once the room warms up, it opens the switch again. Mechanical models use a sensing element such as a diaphragm, while electronic ones may apply TPI control to limit overshoot. Fit it on an inside wall away from radiators and draughts.

Do I need a room thermostat with a combi boiler?

Yes, a combi boiler still needs a room thermostat to switch the heating off once the home is warm, or it may run on and waste energy. Building regulations in England expect a new boiler installation to have time and temperature controls. A programmable or smart thermostat can handle time and temperature together. The range here includes programmable and Wi-Fi thermostats.

Do I need a room thermostat with thermostatic radiator valves?

Yes, usually, because thermostatic radiator valves throttle individual radiators but cannot tell the boiler to switch off. A room thermostat provides the boiler interlock that building regulations look for, so the boiler stops when no heat is needed. Fit the stat in a room without a radiator valve, or leave that radiator's valve open. The range here includes mechanical, digital and wireless room thermostats.
