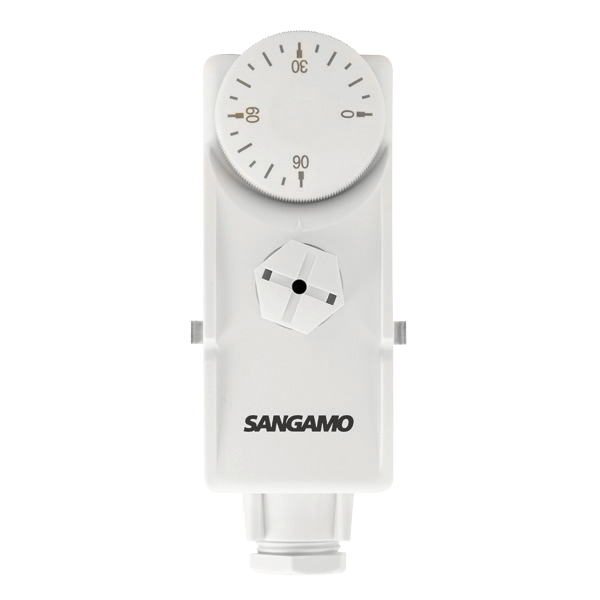

Sangamo CHOICE CSTAT Cylinder Thermostat
£
16
52
(Incl. VAT)
3 Years Warranty
Cylinder Thermostat
About this product
About this product
The Sangamo CHOICE CSTAT is a cylinder thermostat from Sangamo's range of heating controls, for fixing to hot water cylinders, including uninsulated and foam lagged ones. It has a capillary sensor, a 0 to 90 °C set temperature range and a volt-free SPST output.
Key features
- Easy fixing to all hot water cylinders
- For uninsulated and foam lagged cylinders
- Cylinder strap and hooks provided; pipe mounting attachment included
- Capillary sensor, set range 0 to 90 °C
- Temperature differential approx. 4 ± 2 °C
- SPST Type 1CL volt-free output, rated 250V AC, 16 (4) A
- Maximum surface temperature 110 °C
Frequently asked questions
Which cylinders does the CHOICE CSTAT fit?
All hot water cylinders, including uninsulated and foam lagged cylinders.
How is it fixed?
With the plastic coated spring wire (1800mm) and hooks provided; a pipe mounting attachment is also included.
What temperature range can be set?
0 to 90 °C, with a differential of approx. 4 ± 2 °C.
What output does it have?
A SPST Type 1CL volt-free output rated 250V AC, 16 (4) A.
-
Download
- CHOICE CSTAT Tech Sheet
£
16
52
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
105 x 38 x 56.3
Relay/Contact Type
SPST Type 1CL
Colour
White
Relay Voltage - Maximum (AC)
250
Sensor Type
Capilliary Sensor
Relay Resistive Load Rating (A)
16
Materials
ABS
Relay Inductive Load Rating (A)
4
Mounting
Plastic coated spring wire (1800mm)
Weight (Kg)
0.6
Warranty (Years)
3
Set Temperature Range (°C)
0 to 90
Temperature Differential (°C)
Approx. 4 ± 2
Maximum Surface Temperature (°C)
110
Output Type
SPST Type 1CL, Volt-Free
Total Switch Rating
250V AC, 16 (4) A
Dimensions
Dimensions (mm)
105 x 38 x 56.3
Specifications
| Dimensions (mm) | 105 x 38 x 56.3 |
|---|---|
| Relay/Contact Type | SPST Type 1CL |
| Colour | White |
| Relay Voltage - Maximum (AC) | 250 |
| Sensor Type | Capilliary Sensor |
| Relay Resistive Load Rating (A) | 16 |
| Materials | ABS |
| Relay Inductive Load Rating (A) | 4 |
| Mounting | Plastic coated spring wire (1800mm) |
| Weight (Kg) | 0.6 |
| Warranty (Years) | 3 |
| Set Temperature Range (°C) | 0 to 90 |
| Temperature Differential (°C) | Approx. 4 ± 2 |
| Maximum Surface Temperature (°C) | 110 |
| Output Type | SPST Type 1CL, Volt-Free |
| Total Switch Rating | 250V AC, 16 (4) A |
Dimensions
| Dimensions (mm) | 105 x 38 x 56.3 |
|---|
