HiLook CCTV Cameras

HiLook CCTV cameras come in two families: Turbo HD analogue cameras with switchable TVI, AHD, CVI and CVBS output for DVRs, and IP network cameras for NVRs. Styles include turret, bullet, dome, cube, panoramic dual-lens and PTZ cameras, with ColorVu and Smart Hybrid Light models for colour night images, and resolutions run from 2MP to 8MP.

Choosing HiLook CCTV Cameras

Settle the cabling first, because it decides the camera family: coax to a DVR takes a Turbo HD camera, and network cable to an NVR takes an IP camera.

Turbo HD analogue cameras

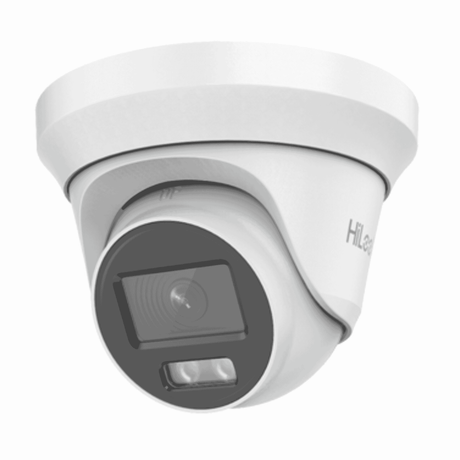

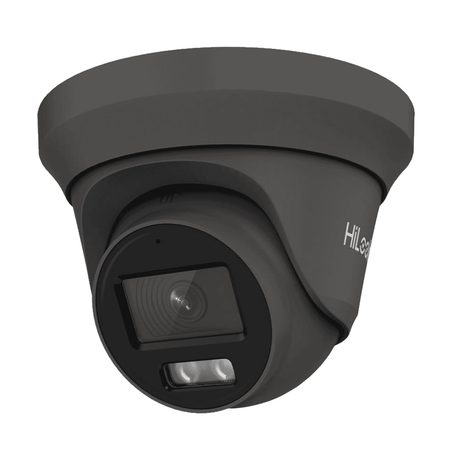

The THC models here switch between TVI, AHD, CVI and CVBS output for broad DVR compatibility. Resolution runs from the 2MP THC-T120-MS to the 8MP (4K) THC-T180-M, and the THC-T120-MS, THC-T250-MS and THC-T259-MS have a built-in microphone for audio over coax. ColorVu models such as the THC-T229-MS use an F1.0 lens and a white light for colour images at night, reaching 40 m on the THC-T229-MS and THC-T259-MS. IR models such as the THC-T220-MS reach about 40 m at night with Smart IR, and the THC-T250-MS and THC-T180-M have IP67 metal housings.

IP cameras

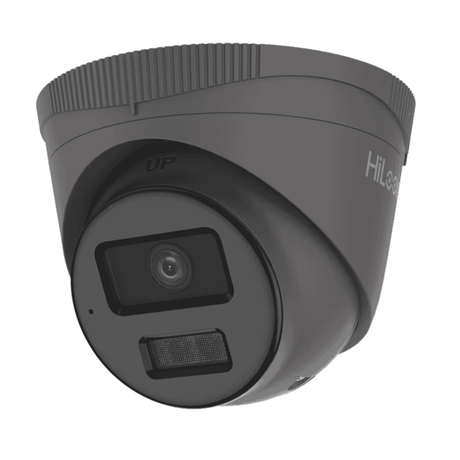

IP models such as the IPC-T250H-MU and IPC-B140HA take PoE (802.3af) or 12 V DC power, so one network cable can carry power and video. ColorVu models with Smart Hybrid Light, such as the IPC-T249HA-LU 4MP turret, combine white light and IR for colour at night. Live Guard models such as the IPC-T280HA-LUF/SL 8MP turret and the IPC-B180HA-LUF/SL 8MP bullet add a flashing light, two-way audio and human and vehicle classification.

Panoramic and PTZ cameras

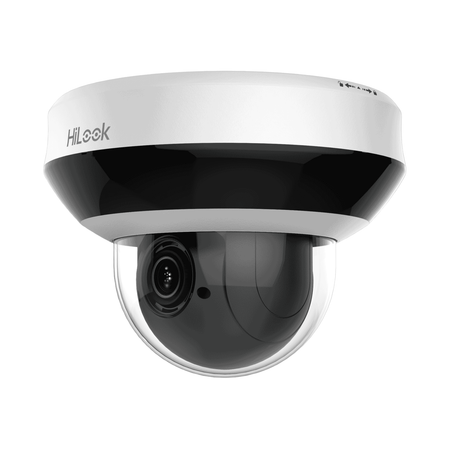

Dual-lens stitched cameras give one panoramic view of about 180°: the IPC-B460HAD-LUF/SL and IPC-B469HAD-LUF/SL are 6MP bullets, the IPC-T260HAD-LUF/SL a 6MP turret and the IPC-T280HAD-LUF/SL (2mm) an 8MP turret. The PTZ-N2404I-DE3(F) is a 4MP PTZ dome with a 2.8–12 mm motorised lens, 4× optical zoom, IP66 and IK10, and the PTZ-N2D400M-DE/14 TandemVu combines a wide-view 4MP channel with a 4MP PTZ channel and auto-tracking.

CameraExampleFamilyResolution
ColorVu turretTHC-T229-MSTurbo HD analogue2MP
4K turretTHC-T180-MTurbo HD analogue8MP
Mini turretIPC-T250H-MUIP, PoE5MP
Live Guard bulletIPC-B180HA-LUF/SLIP, PoE8MP
Panoramic bulletIPC-B460HAD-LUF/SLIP, 180° view6MP
PTZ domePTZ-N2404I-DE3(F)IP, 4× zoom4MP

Related categories

Record with a DVR or NVR from CCTV recorders and storage, or see the full HiLook by Hikvision page. Compare other makers in turret cameras, bullet cameras and PTZ cameras, and read our CCTV and security guides.

Frequently asked questions

What is a HiLook turret camera?

A HiLook turret camera is a compact eyeball-style CCTV camera from Hikvision's HiLook brand, held in a ball-and-socket housing that is easy to aim. With no dome cover over the lens, it avoids the night-time glare a dome bubble can reflect back. HiLook turret models suit IP systems and Turbo HD analogue systems. The range here includes ColorVu and dual-lens turret cameras.

What is a HiLook Turbo HD camera?

A HiLook Turbo HD camera is an HD analogue CCTV camera that sends video over coaxial cable to a DVR rather than over a computer network. Many models can switch between TVI, AHD, CVI and CVBS outputs to suit different recorders. Some also carry audio over the coax from a built-in microphone. Turbo HD is often a simple upgrade where coax cable is already in place.

Why is my HiLook CCTV camera not working?

A HiLook CCTV camera usually stops working because of a power, cable or recorder setting fault. Check the power supply or PoE switch first, then look for water or damage at the cable joints. On a Turbo HD camera, make sure the output mode matches what the recorder supports; on an IP camera, check the network settings and that it is added to the recorder.

How do I install a HiLook CCTV camera?

Install a HiLook CCTV camera by fixing it to a solid wall or soffit, running the cable back to the recorder, then adding the camera on the recorder or app. An IP camera usually takes power and video through one network cable using PoE. A Turbo HD camera normally needs coax for video plus a separate power feed. Aim the camera, then set up motion detection and recording.
