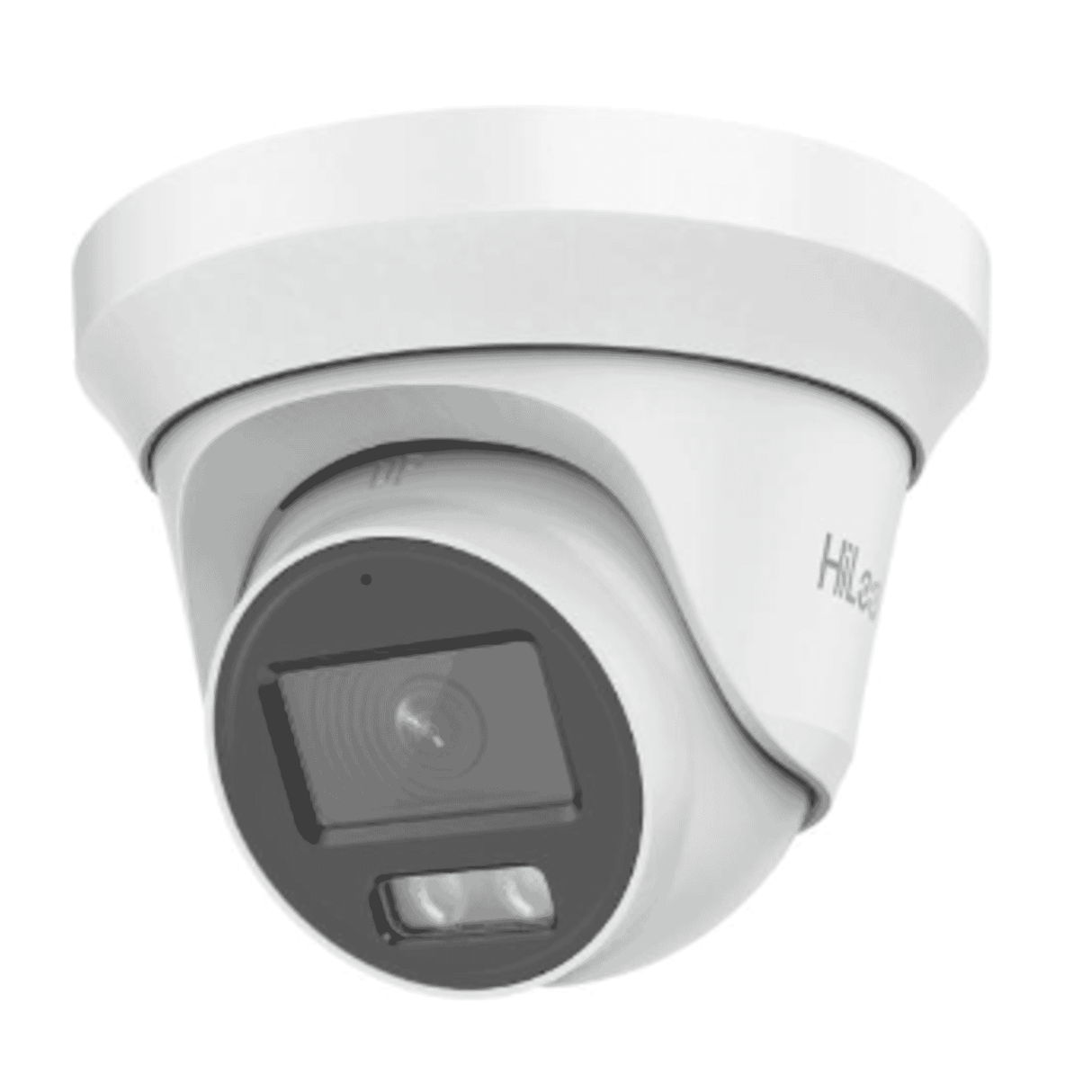

HiLook THC-T229-MS 2 MP ColorVu Turret Camera, 2.8 mm, THC-T229-MS

Introduction to the HiLook THC-T229-MS and its key features

HiLook THC-T229-MS — 2 MP ColorVu turret (2.8 mm)is an analogue/TurboHD turret camera designed to deliver full‑time colour imaging in a compact, weatherproof package. The camera targets budget‑minded residential, retail and small business CCTV installations that require meaningful colour detail at night as well as reliable daytime monitoring. Its headline features include a 2 MP (1920×1080) sensor, ColorVu full‑time colour with an F1.0 lens, a 2.8 mm fixed wide‑angle lens (≈105° horizontal FOV), integrated smart white light for colour night vision to around 40 m, a built‑in microphone with Audio‑over‑Coax (AoC) support, and switchable 4‑in‑1 video output (TVI/AHD/CVI/CVBS) for broad DVR compatibility. Built in a metal housing with IP66 ingress protection, it offers a low power draw (12 VDC, ≈3.2 W) in a compact turret form factor.

Detailed description of specifications and benefits

The THC-T229-MS is engineered to balance cost, ease of installation and evidence‑grade imaging. Below is a breakdown of the most important specifications and what they mean in practical terms for installers and end users.

• 2 MP CMOS (1920×1080):Full HD resolution provides enough detail for facial recognition at short ranges and clear licence plate context at typical domestic or small business distances. 1080p remains a pragmatic choice on analogue/TurboHD systems where bandwidth or DVR channel counts are a consideration.

• ColorVu full‑time colour (F1.0):A bright aperture combined with advanced sensor sensitivity means the camera captures colour scenes at very low lux levels without relying exclusively on infrared. This is important when colour information (clothing, vehicle colour, signage) is crucial for evidence.
• Smart white supplement light:Integrated white LEDs provide vivid colour imagery down to 0 Lux when activated, with an effective range up to around 40 m. Unlike passive IR, the white light produces natural colours and improves recognition at night.

• 2.8 mm fixed M12 lens:Offers approximately 105° horizontal field of view — suitable for medium‑wide coverage such as front yards, shopfronts, parking bays and interior rooms.
• Turret design:The turret/mini‑dome shape blends the benefits of a dome (discreet aesthetic) with the adjustability of a bullet camera, giving flexible mounting angles and a degree of vandal resistance compared with exposed cupola domes.

• 4‑in‑1 switchable output (TVI/AHD/CVI/CVBS):Ensures compatibility with most analogue/TurboHD DVRs, simplifying replacement or mixed‑system upgrades.
• Image processing:Onboard features such as 2D/3D DNR (digital noise reduction), DWDR, BLC and HLC help manage difficult lighting and reduce noise for crisper video and better motion detection or analytics performance.
• Built‑in microphone & AoC:Audio recorded over the same coaxial cable (when paired with an AoC‑capable recorder) eliminates separate audio wiring and gives additional context to visual events.

• Power:12 VDC nominal power with a typical maximum consumption around 3.2 W — low enough for many PoE‑less installations where a simple 12 V feed is used.
• Environmental rating:Metal housing with IP66 ingress protection makes the unit suitable for both indoor and outdoor use in a wide range of climates (operating temperature −40 °C to 60 °C).
• Size & weight:Compact dimensions (Ø127.9 mm × 97.8 mm) and a weight of approximately 473 g make mounting straightforward on fascias, soffits or junction boxes.

• The provided data lists certification details as unavailable — always confirm local compliance and approvals before procurement.
• This product listing indicates no included warranty (warranty=0 in the supplied data); purchasers should verify warranty terms with the supplier or manufacturer prior to purchase.

Use cases and scenarios where the THC-T229-MS excels

The THC-T229-MS is positioned as a cost‑effective camera for scenarios that need good colour imaging after dark and simple integration with existing analogue infrastructure. Typical deployments include:

• Wide field of view and ColorVu capability make it ideal for capturing visitors, delivery parcels and vehicle activity at night where colour helps identification.

• Colour at night improves evidence quality for incidents of theft or vandalism. The built‑in microphone (with AoC) can capture audio context without additional cabling.

• Integrated white light extends night visibility up to 40 m, useful for moderately sized parking areas and access roads. The IP66 housing handles rain and dust exposure.

• In warehouses, offices or lobbies with occasional low‑light periods, the camera keeps colour fidelity that can be important for incident review or staff safety monitoring.

Comparisons with similar products on the market

When evaluating the THC-T229-MS against alternative cameras, consider four main axes: low‑light colour capability, image resolution, installation compatibility and price.

• Traditional IR cameras switch to monochrome under low light and rely on IR illumination, losing colour information. The THC-T229‑MS ColorVu approach preserves colour at low lux and only uses white LEDs when necessary, giving superior evidential colour detail at night.

• Higher‑end ColorVu models may offer motorised varifocal lenses, higher dynamic range or PoE capability. The THC‑T229‑MS focuses on affordability and simplicity: a fixed 2.8 mm lens, switchable 4‑in‑1 output and low power draw. If you need remote zoom/optics or advanced analytics onboard, consider more expensive variants.

• IP cameras offer network flexibility, PoE power and often higher frame rates or resolutions (4K variants), as well as advanced edge analytics. However, analogue/TurboHD remains attractive where existing coaxial infrastructure is present or where DVR channel density and budget constraints favour analogue. The THC‑T229‑MS is a practical upgrade path for sites that want improved night colour without re‑cabling to IP.

• Competitors with similar features often list higher prices once you factor in metal housings, integrated white light and AoC support.

Conclusion: why the HiLook THC-T229-MS is a great choice

The HiLook THC‑T229‑MS occupies a practical niche: a budget‑friendly, full‑time colour turret camera for analogue/TurboHD systems that need meaningful night‑time colour reproduction. Its combination of ColorVu low‑light performance, an integrated white supplement light, a wide 2.8 mm field of view, built‑in microphone with AoC support and switchable 4‑in‑1 output makes it a flexible option for residential, retail and small business installations where cost and ease of integration are priorities.

Key takeaways:

• ColorVu technology and white light give superior night colour compared with standard IR cameras.
• Switchable video output and AoC compatibility reduce integration friction in existing analogue environments.
• Rugged metal IP66 housing and low power draw simplify outdoor installations without the need for PoE infrastructure.

Before purchasing, confirm compatibility with your DVR (especially for AoC audio) and check local approvals and warranty terms with the supplier. For many installers and end users seeking an affordable path to better night‑time evidence, the HiLook THC‑T229‑MS is a compelling, no‑frills choice that punches above its price class in low‑light colour performance.
