Battery Testers
Battery testers check the voltage and ampere-hour capacity of lead acid batteries, such as the standby SLA batteries used in fire and security systems. The ACT Meters intelligent battery testers, the ACT 612 and the ACT CHROME, use pulse load technology to give readings in seconds. The collection also holds ACT terminal connectors for recessed battery terminals and an ACT calibrated replacement lead for recalibrating the ACT 612.
Choosing Battery Testers
A battery tester is a device that checks a battery's condition; the ACT Meters ACT 612, for example, is an intelligent battery tester that displays the DC voltage and the Ah capacity within seconds. Choose a tester for the battery types and voltages on site, then add the connectors or leads that keep readings accurate.
How intelligent testers read capacity

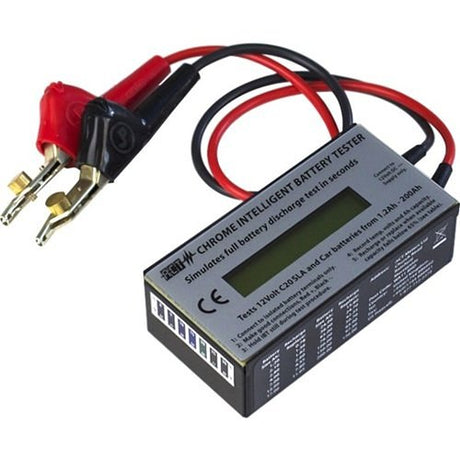

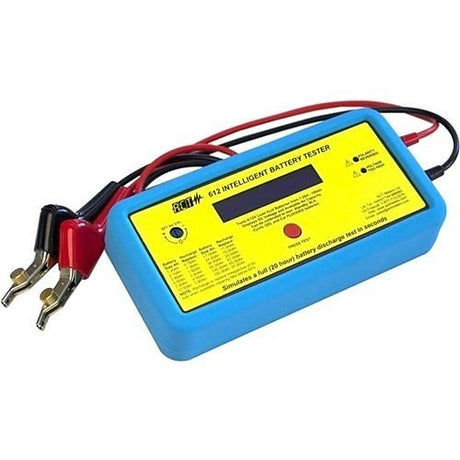

The ACT 612 uses advanced pulse load technology to analyse Ah capacity from the battery's temperature and state of charge, and it simulates a full 20 hour (C20) discharge test in seconds without depleting the battery. The ACT CHROME also uses pulsed load technology and simulates a full 20 hour discharge test, giving an Ah capacity and volts reading in seconds.
Battery types and voltages
The ACT 612 can test 6V and 12V standby SLA, cyclic GEL and car FLOODED batteries, with the type selected on its Calibration Control before testing. The ACT CHROME can test 12V SLA batteries of the kind used in fire, security and other electrical systems, and a temperature sensitive strip records the ambient temperature.
When to recharge or replace
A quick look up table on the side of the ACT CHROME identifies when batteries should be recharged or replaced, at 65% of rated capacity, and the ACT 612 carries a look up table of common battery sizes and the Ah capacity at which to recharge or replace them.
Connectors and leads

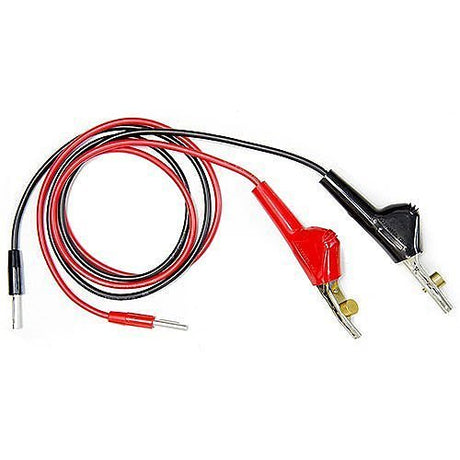

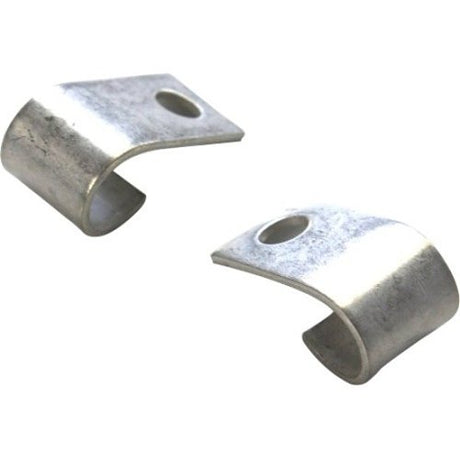

The ACT3532 is a pack of 2 terminal connectors for ACT intelligent battery testers, required on batteries with recessed terminals for accurate Ah readings. The ACT612TL is a replacement calibrated lead for recalibrating the ACT 612, because ACT battery testers are calibrated to their specific test lead set.
Products at a glance
| Model | Type | Use |
|---|---|---|
| ACT 612 | Intelligent battery tester | SLA, GEL and FLOODED batteries |
| ACT CHROME | Intelligent battery tester | SLA batteries |
| ACT3532 | Terminal connectors, pack of 2 | Recessed battery terminals |
| ACT612TL | Replacement calibrated lead | Recalibrating the ACT 612 |
Related pages
See batteries and power supplies, battery chargers and electrical test equipment.
Brands we stock in Battery Testers
ACT Meters and Cygnus.
Frequently asked questions
How can you test a battery without a tester?
Without a tester, a multimeter set to DC volts gives the resting voltage, which shows state of charge but not remaining capacity. A worn battery can still read a normal voltage, so voltage alone can mislead. A capacity tester gives a more reliable answer for standby batteries in fire and security systems.
How do you use a battery tester?
Connect the tester's clips firmly to clean battery terminals, select the battery type or rating if the tester asks for it, then read the result. Intelligent testers show voltage and ampere-hour capacity within seconds, so you can decide whether to recharge or replace the battery. Poor contact on steel bolts or dirty terminals can give a low reading.
How does a battery tester work?
A simple battery tester measures voltage, while a conventional load tester draws a heavy current and watches how far the voltage drops. A pulse-load tester applies short pulses of load and calculates ampere-hour capacity from the response, so it does not drain the battery during the test. The range here includes intelligent testers for lead acid standby batteries.
