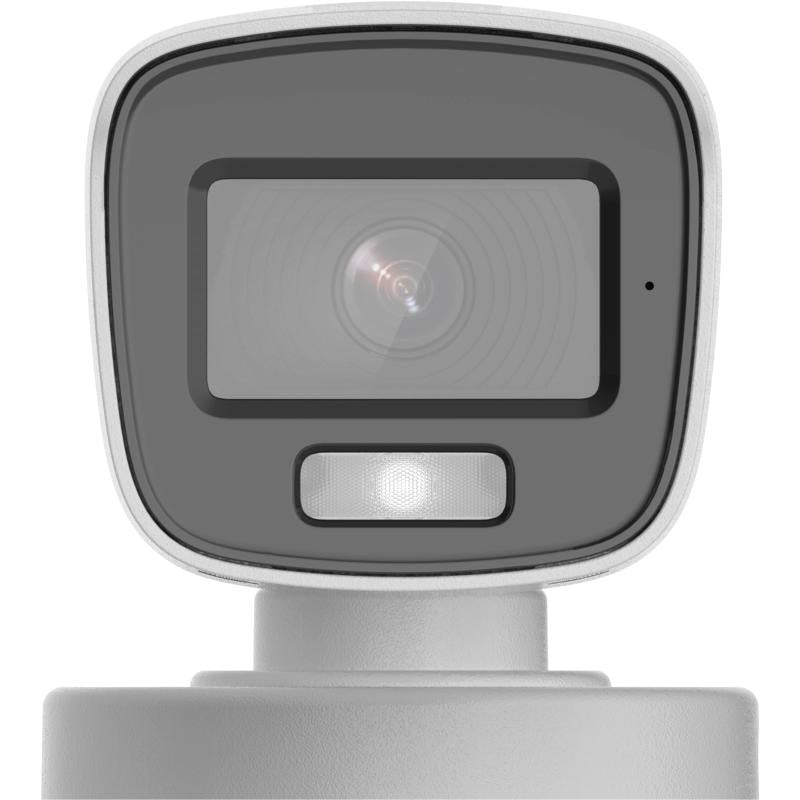

HiLook THC-B129-MS(2.8MM) ColorVu Audio Fixed Mini Bullet Camera, 2MP, 2.8mm
About this product
The HiLook THC-B129-MS(2.8MM) is a 2MP ColorVu audio fixed mini bullet camera with a 2.8 mm lens and one port for four switchable signals (TVI/AHD/CVI/CVBS). It gives 24/7 colour imaging with an F1.0 aperture and up to 20 m white light distance, carries audio over coaxial cable from a built-in mic, and is water and dust resistant (IP66).
Key features
- 2 MP, 1920 × 1080 resolution
- 24/7 colour imaging with an F1.0 aperture
- White light supplement light with a range of up to 20 m
- 2.8 mm fixed lens with a 105° horizontal field of view
- Audio over coaxial cable with a built-in mic
- Switchable TVI/AHD/CVI/CVBS video output from one port
- 3D DNR/2D DNR noise reduction and digital WDR
- Water and dust resistant (IP66)
Frequently asked questions
What video signals does the THC-B129-MS(2.8MM) output?
One port carries four switchable signals: TVI, AHD and CVI at 1080p @25 fps/30 fps, or CVBS in PAL/NTSC.
Does it have audio?
Yes. It has a built-in mic and sends audio over coaxial cable.
How is it powered?
Power is 12 VDC ± 25%, max. 2 W. One power adapter is recommended for each camera.
Is it suitable for wet or cold conditions?
It is water and dust resistant (IP66), with an operating condition of -40 °C to 60 °C (-40 °F to 140 °F) and humidity 90% or less (non-condensing).
What field of view does the 2.8 mm lens give?
Horizontal FOV is 105°, vertical FOV 55° and diagonal FOV 125°.
Specifications
Specifications
| Brand | HiLook |
|---|---|
| Model | THC-B129-MS(2.8MM) |
| Manufacturer Part Number (MPN) | THC-B129-MS(2.8MM) |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125° |
| Lens Mount | M12 |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Frame Rate | TVI: 1080p @25 fps/30 fps; CVI: 1080p @25 fps/30 fps; AHD: 1080p @25 fps/30 fps; CVBS: PAL/NTSC |
| Day/Night Mode | Color |
| WDR | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 3D DNR/2D DNR |
| White Balance | Auto, Manual |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Alarm | Solid Light Alarm (White Light) |
| Material | Metal |
| Power | 12 VDC ± 25%, max. 2 W |
| Dimension | Ø70 mm × 161.2 mm (2.76" × 6.35") |
| Weight | Approx. 286 g (0.63 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Protection | IP66 |
