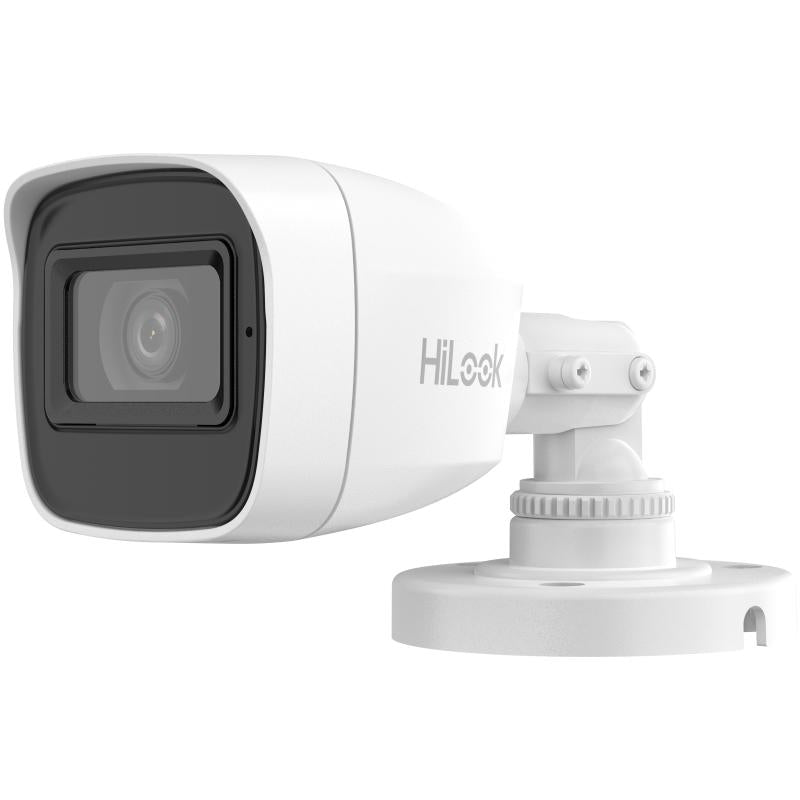

HiLook THC-B120-MS(2.8mm) Audio Fixed Mini Bullet Camera, 2 MP, 2.8 mm
About this product
The HiLook THC-B120-MS(2.8mm) is a 2 MP audio fixed mini bullet camera with a 2.8 mm fixed focal lens and a built-in microphone, for CCTV systems using TVI, AHD, CVI or CVBS video. It is a 4 in 1 camera with switchable TVI/AHD/CVI/CVBS output, Smart IR, and water and dust resistance to IP66.
Key features
- 2 MP CMOS, max. resolution 1920 (H) × 1080 (V)
- 2.8 mm lens: horizontal FOV 106.4°, vertical FOV 57.9°, diagonal FOV 124.6°
- 4 in 1: switchable TVI/AHD/CVI/CVBS video output
- Built-in microphone
- Smart IR with an IR supplement light
- Water and dust resistant (IP66)
- Power: 12 VDC ± 25%, max. 3.7 W
- Metal housing
Frequently asked questions
Which video signals does the THC-B120-MS(2.8mm) output?
Video output is switchable TVI/AHD/CVI/CVBS. TVI, AHD and CVI each run at 1080P@30fps or 1080P@25fps, and CVBS is PAL/NTSC.
Does it pick up audio?
Yes. It has a built-in microphone.
How is the camera powered?
Power is 12 VDC ± 25%, max. 3.7 W.
What field of view does the 2.8 mm lens give?
Horizontal FOV 106.4°, vertical FOV 57.9° and diagonal FOV 124.6°.
Does it see in the dark?
It has Smart IR with an IR supplement light, and min. illumination is 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR.
How well is it protected against water and dust?
It is water and dust resistant (IP66), with an operating condition of -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing).
Specifications
Specifications
| Brand | HiLook |
|---|---|
| Model | THC-B120-MS(2.8mm) |
| Manufacturer Part Number (MPN) | THC-B120-MS(2.8mm) |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° |
| Lens Mount | M12 |
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness;Sharpness;Mirror;AGC |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps; AHD: 1080P@30fps, 1080P@25fps; CVI: 1080P@30fps, 1080P@25fps; CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| WDR | Digital WDR |
| Image Enhancement | BLC;HLC;Global |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Built-In Microphone | Yes |
| Power | 12 VDC ± 25%, max. 3.7 W |
| Material | Metal |
| Dimension | 157.8 mm × 60.9 mm × 57.9 mm (6.21" × 2.40" × 2.28") |
| Weight | Approx. 292 g (0.64 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Protection | IP66 |
