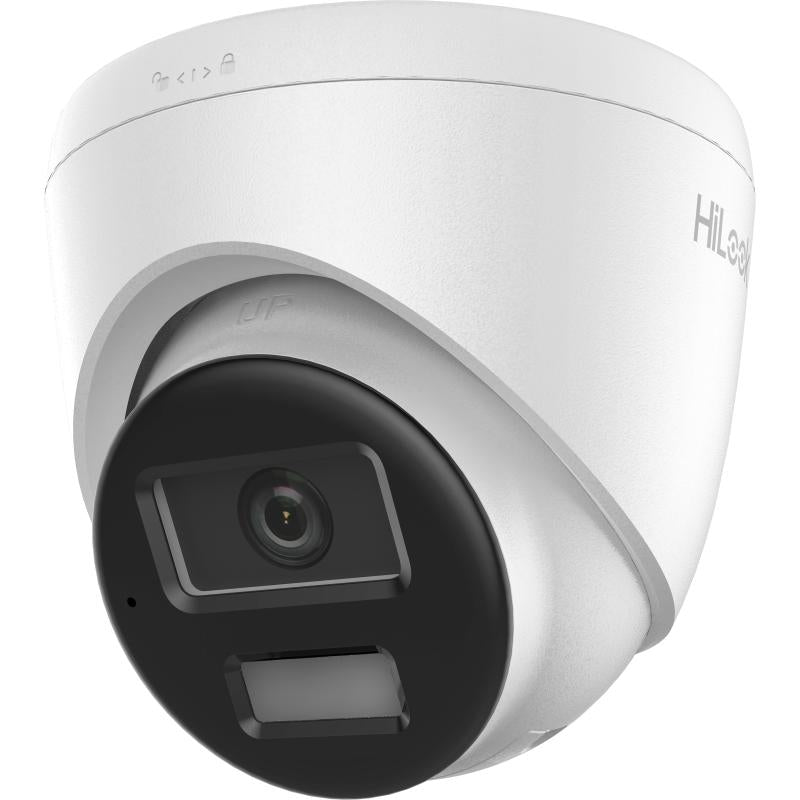

HiLook IPC-T280HA-LUF/SL(4MM) Smart Hybrid Light Fixed Turret Network Camera, 8MP, 4mm

What it does

The IPC-T280HA-LUF/SL uses a 1/2.7" progressive scan CMOS sensor with a max. resolution of 3840 × 2160, behind a 4 mm fixed focal lens with an F2.0 aperture and a horizontal FOV of 90°.

At 50 Hz the main stream runs at 12.5 fps at 3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080 and 1280 × 720.

Its supplement light combines IR and white light with a range of up to 30 m, with smart supplement light, an 850 nm IR wavelength and min. illumination of Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR.

Motion detection can trigger alarms by specified target types (human and vehicle), alongside video tampering alarm and exception events.

Where it is used

The camera is rated IP67 (IEC 60529-2013) for water and dust resistance, with startup and operating conditions of -30 °C to 60 °C and humidity of 95% or less (non-condensing).

For the 4 mm lens, DORI distances are D: 102 m, O: 40 m, R: 20 m and I: 10 m.

Installation notes

Power is 12 VDC ± 25%, 0.66 A, max. 8 W through a Ø5.5 mm coaxial power plug with reverse polarity protection, or PoE (IEEE 802.3af, Class 3) at max. 9.5 W.

Angle adjustment covers pan 0° to 360°, tilt 0° to 75° and rotate 0° to 360°.

It has 1 RJ45 10 M/100 M self-adaptive Ethernet port, a metal and plastic body, measures Ø110 mm × 102.7 mm and weighs approx. 360 g.

Day to day

The camera works with the iVMS-4200 and HiLookVision clients, with up to 6 channels of simultaneous live view and up to 32 users.

Events can upload to FTP/NAS/memory card, notify the surveillance centre, send email, trigger recording or capture, and set off an audible warning or flashing light.

The built-in microphone and speaker give two-way audio, with environment noise filtering.
