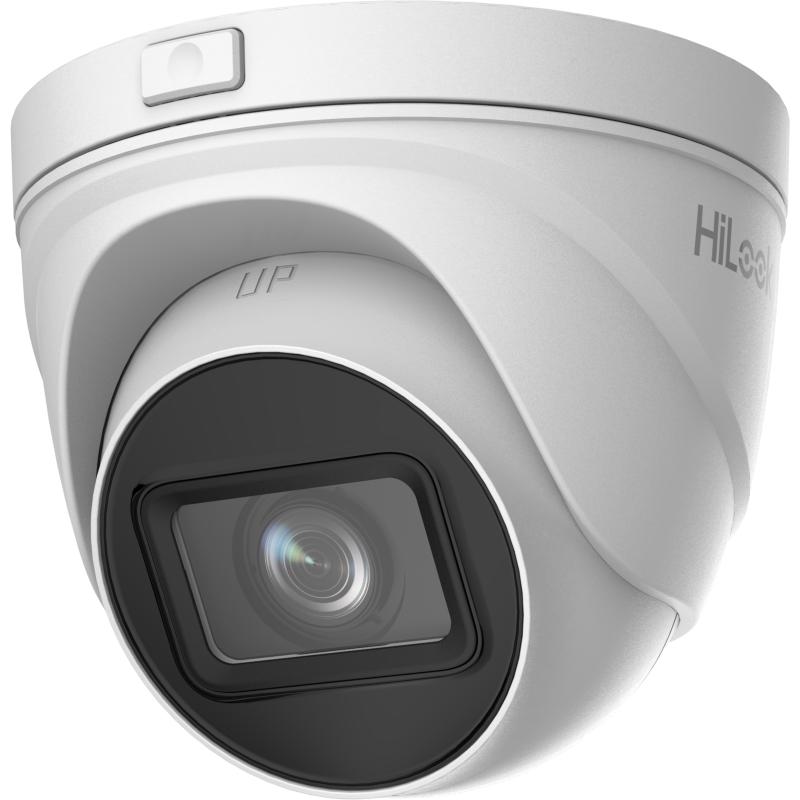

HiLook IPC-T651H-Z(C) Motorized Varifocal Turret Network Camera, 5MP, 2.8-12mm Lens

What it does

The IPC-T651H-Z(C) uses a 1/2.7" progressive scan CMOS sensor with a max. resolution of 2560 × 1920, and its motorized varifocal lens covers 2.8 to 12 mm, a horizontal FOV of 96° to 29°.

At 50 Hz the main stream runs at 20 fps at 2560 × 1920, and at 25 fps at 2560 × 1440, 1920 × 1080 and 1280 × 720.

For low light it has an IR supplement light with a range of up to 30 m at an 850 nm wavelength, an IR cut filter, and min. illumination of Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR.

Image handling includes 120 dB WDR, BLC and 3D DNR.

Where it is used

The camera is rated IP67 (IEC 60529-2013) for water and dust resistance, with startup and operating conditions of -30 °C to 60 °C and humidity of 95% or less (non-condensing).

Installation notes

Power is 12 VDC ± 25%, 0.75 A, max. 9 W through a Ø5.5 mm coaxial power plug, or PoE (802.3af, Class 3) at max. 10 W.

Angle adjustment covers pan 0° to 360°, tilt 0° to 75° and rotate 0° to 360°, and the motorized varifocal lens is designed for easy installation and monitoring.

It has 1 RJ45 10 M/100 M self-adaptive Ethernet port, measures Ø129.4 mm × 116.4 mm and weighs approx. 595 g.

Day to day

The camera works with the iVMS-4200 and Hik-Connect clients, with up to 6 channels of simultaneous live view and up to 32 users.

Motion detection, video tampering alarm and exception events can upload to FTP, notify the surveillance centre, send email, upload to memory card, trigger recording or trigger capture.
