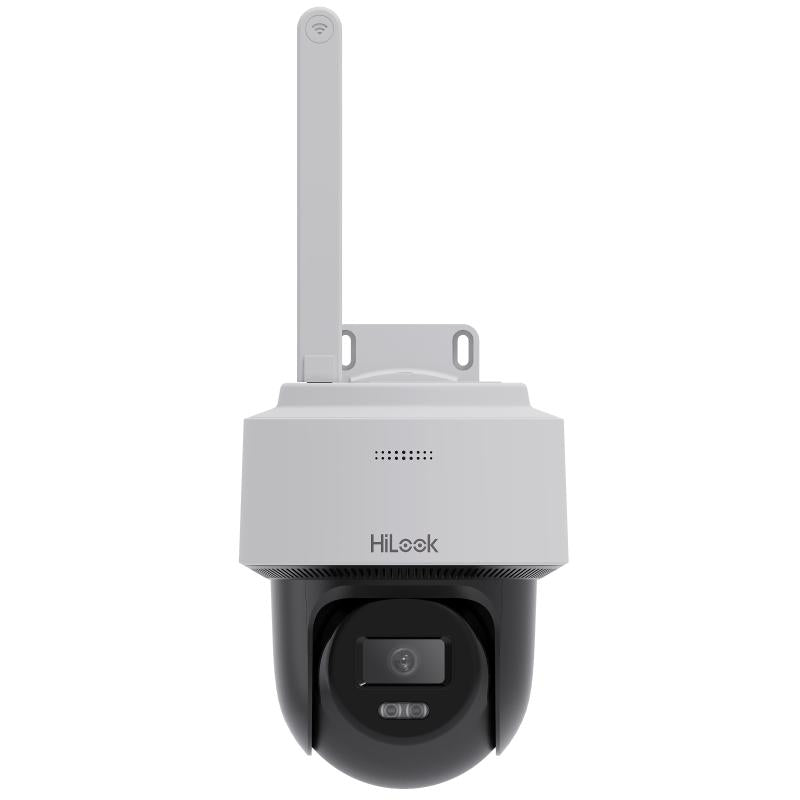

HiLook PTZ-N2C400I-W(2.8mm)(W) IR Wi-Fi PT Network Camera, 4MP, 2.8mm
About this product
The HiLook PTZ-N2C400I-W(2.8mm)(W) is a 4 MP IR Wi-Fi pan and tilt network camera with a 2.8 mm lens, connecting over Wi-Fi or a 10 M/100 M Ethernet port. It supports human detection, vehicle detection and auto-tracking lite, has a built-in microphone and speaker, and is managed and viewed remotely through the Hik-Connect cloud service and app.
Key features
- 4 MP resolution, max. 2560 × 1440
- Pan 0° to 345° at up to 25°/s and tilt 0° to 80° at up to 20°/s
- EXIR 2.0 infrared with an IR distance of up to 30 m
- Human detection, vehicle detection and auto-tracking lite
- Built-in microphone and speaker for real-time audio
- Wi-Fi (IEEE802.11b, IEEE802.11g, IEEE802.11n) with a wireless range of up to 50 m (performance varies based on actual environment)
- microSD/microSDHC/microSDXC card slot, up to 512 GB
- Water and dust resistant (IP66)
Frequently asked questions
Can the PTZ-N2C400I-W(2.8mm)(W) pan and tilt?
Yes. It pans 0° to 345° at up to 25°/s and tilts 0° to 80° at up to 20°/s.
How far can it see in the dark?
The supplement light type is IR, with an IR distance of up to 30 m using EXIR 2.0.
How is the camera powered?
Power is 12 VDC ± 10%, 1 A, max. 10 W through a Ø2 mm coaxial power plug, with reverse polarity protection.
Does it connect over Wi-Fi?
Yes. It supports IEEE802.11b, IEEE802.11g and IEEE802.11n with WPA-PSK/WPA2-PSK encryption and a wireless range of up to 50 m (the performance varies based on actual environment). It also has 1 RJ45 10 M/100 M Ethernet port.
Is it weatherproof?
It is water and dust resistant to IP66 (IEC 60529-2013), with an operating condition of -30 °C to 50 °C (-22 °F to 122 °F) and humidity 95% or less (non-condensing).
Can it record without a recorder?
It has a built-in memory card slot that supports microSD/microSDHC/microSDXC cards up to 512 GB, and linkage actions include upload to memory card.
Specifications
Specifications
| Brand | HiLook |
|---|---|
| Model | PTZ-N2C400I-W(2.8mm)(W) |
| Manufacturer Part Number (MPN) | PTZ-N2C400I-W(2.8mm)(W) |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),0 Lux with IR |
| FOV (2.8 mm) | 2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108° |
| Aperture | F1.6 |
| Supplement Light Type | IR |
| Supplement Light Range | IR distance: up to 30 m |
| IR Wavelength | 850 nm |
| Movement Range (Pan) | 0° to 345° |
| Movement Range (Tilt) | 0° to 80° |
| Pan Speed | Up to 25°/s |
| Tilt Speed | Up to 20°/s |
| Main Stream | 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Video Compression | Main stream: H.265/H.264 |
| Video Bit Rate | 256 Kbps to 2 Mbps |
| Audio Compression | G.711,AAC-LC |
| Environment Noise Filtering | Yes |
| API | ONVIF, SDK |
| Client | iVMS-4200, HiLookVision, Hik-Partner-Pro |
| Wi-Fi Protocols | IEEE802.11b,IEEE802.11g,IEEE802.11n |
| Frequency Range | 2.412 GHz to 2.472 GHz |
| Encryption Mode | WPA-PSK/WPA2-PSK |
| Wireless Range | Up to 50 m (The performance varies based on actual environment) |
| WDR | Digital WDR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-In Microphone | 1 built-in microphone |
| Built-In Speaker | 1 built-in speaker |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Power | 12 VDC ± 10%, 1 A, max. 10 W, Ø2 mm coaxial power plug, reverse polarity protection |
| Operating Condition | -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Protection | IP66 (IEC 60529-2013) |
| Material | Plastic |
| Dimension | 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19") |
| Camera weight | 565 g (1.25 lb.) |
