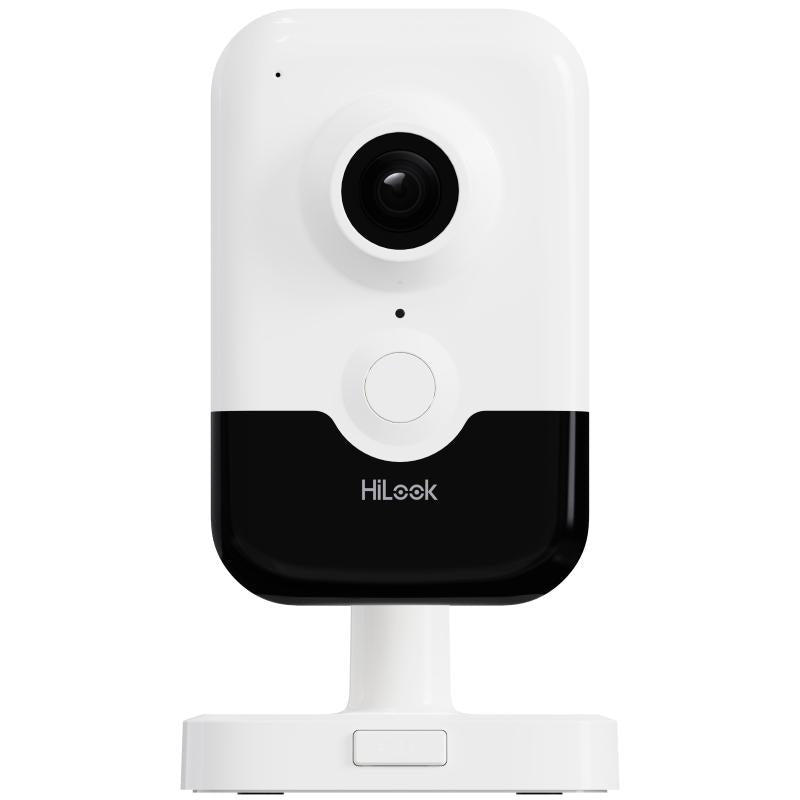

HiLook IPC-C340HA-D/W(2.8mm)(W) Indoor Audio Wi-Fi Cube Camera, 4MP, 2.8mm

What it does

The IPC-C340HA-D/W(2.8mm)(W) is a 4 MP indoor cube network camera with a 1/3" progressive scan CMOS sensor and a max. resolution of 2560 × 1440. The 2.8 mm lens gives a horizontal FOV of 92°, vertical FOV of 50° and diagonal FOV of 110°.

For low light it uses an IR supplement light with a range of up to 10 m at an IR wavelength of 850 nm, with an IR cut filter for day and night.

A built-in microphone and built-in speaker give two-way audio, with environment noise filtering.

Where it is used

This is an indoor camera. Startup and operating conditions are -10 °C to 45 °C (14 °F to 113 °F), humidity 95% or less (non-condensing).

Installation notes

The camera can be powered from 12 VDC (0.38 A, max. 4.56 W, Ø2.0 mm coaxial power plug) or by PoE (IEEE 802.3af, Class 3) through its 1 RJ45 10 M/100 M self-adaptive Ethernet port.

It can also join a network over Wi-Fi (IEEE 802.11b, 802.11g, 802.11n) in the 2.412 GHz to 2.472 GHz frequency range, with WPA-PSK/WPA2-PSK encryption. Wireless range is up to 50 m, and the performance varies based on actual environment.

Angle adjustment covers pan 0° to 360°, tilt 0° to 90° and rotate 0° to 360°. The plastic body measures 102.9 mm × 65.2 mm × 32.9 mm.

Day to day

The Hik-Connect cloud service and app give remote management and views of the camera. Client software includes iVMS-4200, HiLookVision and Hik-Partner-Pro.

Motion detection supports alarm triggering by specified target types (human and vehicle). Linkage actions include upload to memory card, notify surveillance center, trigger capture, audible warning and auto-tracking lite.

Recordings can be stored on a microSD/microSDHC/microSDXC card of up to 512 GB in the built-in memory card slot.
