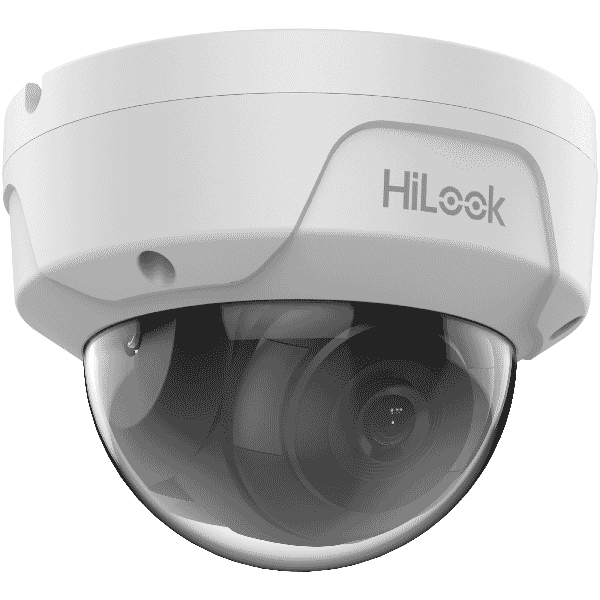

HiLook IPC-D140HA(2.8mm) Fixed Dome Network Camera, 4MP, 2.8mm
£
65
09
(Incl. VAT)
About this product
The HiLook IPC-D140HA(2.8mm) is a 4 MP fixed dome network camera for IP CCTV systems, with a 2.8 mm lens, IR up to 30 m and human and vehicle detection. It is water and dust resistant (IP67) and vandal resistant (IK10), and installs with Power over Ethernet (PoE).
Key features
- 4 MP resolution (2560 × 1440) on a 1/3" Progressive Scan CMOS
- 2.8 mm fixed focal lens: horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
- IR supplement light up to 30 m at 850 nm
- Human and vehicle detection
- 120 dB true WDR
- Efficient H.265+ compression to save bandwidth and storage
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Power over Ethernet (PoE): 802.3af, Class 3, max. 6.5 W
Frequently asked questions
Can the IPC-D140HA(2.8mm) be powered by PoE?
Yes. It takes PoE to 802.3af, Class 3, max. 6.5 W, or 12 VDC ± 25%, 0.4 A, max. 5 W on a Ø 5.5 mm coaxial power plug.
How far does the night vision reach?
The IR supplement light reaches up to 30 m, with an IR wavelength of 850 nm.
Is it suitable where vandalism is a risk?
It is vandal resistant (IK10) as well as water and dust resistant (IP67).
What field of view does the 2.8 mm lens give?
Horizontal FOV 99°, vertical FOV 55° and diagonal FOV 116°.
Which app and software work with it?
It works with the iVMS-4200 and HiLookVision clients and supports Open Network Video Interface (Profile S, Profile T), ISAPI and SDK.
Can it tell people from vehicles?
Yes. It supports human and vehicle detection, and motion alarms can be triggered by specified target types (human and vehicle).
£
65
09
Price
Technical Details
Specifications
Brand
HiLook
Model
IPC-D140HA(2.8mm)
Manufacturer Part Number (MPN)
IPC-D140HA(2.8mm)
Product type
4 MP Fixed Dome Network Camera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Lens Type
Fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°
Lens Mount
M12
Aperture
F2.0
DORI (2.8 mm)
D: 59 m, O: 23 m, R: 11 m, I: 5 m
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
WDR
120 dB
Main Stream
50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720)
Video Compression (main stream)
H.265+/H.265/H.264+/H.264
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Simultaneous Live View
Up to 6 channels
Client
iVMS-4200, HiLookVision
API
Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE
802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material
Metal & Plastic
Dimension
Ø 110.8 mm × 84.7 mm (4.4" × 3.3")
Weight
Approx. 520 g (1.1 lb.)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection
IP67: IEC 60529-2013, IK10: IEC 62262:2002
Colour
White
Specifications
| Brand | HiLook |
|---|---|
| Model | IPC-D140HA(2.8mm) |
| Manufacturer Part Number (MPN) | IPC-D140HA(2.8mm) |
| Product type | 4 MP Fixed Dome Network Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Lens Type | Fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° |
| Lens Mount | M12 |
| Aperture | F2.0 |
| DORI (2.8 mm) | D: 59 m, O: 23 m, R: 11 m, I: 5 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| WDR | 120 dB |
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Simultaneous Live View | Up to 6 channels |
| Client | iVMS-4200, HiLookVision |
| API | Open Network Video Interface (Profile S, Profile T), ISAPI, SDK |
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug |
| PoE | 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Material | Metal & Plastic |
| Dimension | Ø 110.8 mm × 84.7 mm (4.4" × 3.3") |
| Weight | Approx. 520 g (1.1 lb.) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
| Colour | White |
