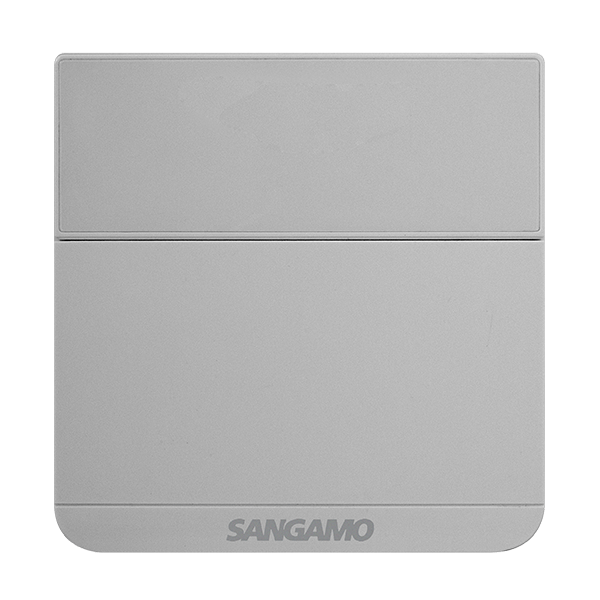

Sangamo Choice CHPRSTATFS Frost Thermostat, Silver
£
27
56
(Incl. VAT)
3 Years Warranty
Frost Thermostat, Silver
About this product
About this product
From Sangamo's range of heating controls, the Choice CHPRSTATFS is a tamperproof electronic frost thermostat finished in silver: a large dial with a digital display sets it over -5 to 30 °C, and a blue LED shows the call for heat. Its tamper resistance cover is secured with a security Torx screw.
Key features
- Large temperature adjustment dial with digital display; set temperature range -5 to 30 °C
- Call for heat indication: blue LED
- Temperature swing adjustment 0.5 °C and 1 °C
- TPI (time proportional & integral) control
- ErP Class IV: TPI room thermostat for use with ON/OFF heaters, value 2%
- SPST switched live output, 10 A resistive
- Silver, ABS housing
- Tamper resistance cover with security Torx screw
Frequently asked questions
What temperature range can the CHPRSTATFS be set to?
-5 to 30 °C, on a large dial with a digital display.
Does it have TPI control?
Yes: TPI (time proportional & integral) control.
What is its ErP class?
ErP Class IV: a TPI room thermostat for use with ON/OFF heaters, value 2%.
Is the output volt-free?
No: it is SPST, switched live, rated 10 A resistive.
How is it wired?
3 wire, on 230 V AC 50 Hz; maximum cable size 1.5 mm² (flex) or 2.5 mm² (fixed).
-
Download
- CHPRSTATFS Tech Sheet
£
27
56
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 88 x 38
Relay Resistive Load Rating (A)
10
Colour
Silver
Call for Heat Indication
Blue LED
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
Materials
ABS
Tamper Resistant
Yes (Tamper Resistance Cover with Security Torx Screw)
Warranty (Years)
3
Adjustment Type
Large Dial with Digital Display
Set Temperature Range (°C)
-5 to 30
Temperature Swing Adjustment (°C)
0.5 and 1
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
3 Wire
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
-5 to +50
Output Type
SPST Switched Live
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Mounting
Surface Only
Dimensions
Dimensions (mm)
86 x 88 x 38
Specifications
| Dimensions (mm) | 86 x 88 x 38 |
|---|---|
| Relay Resistive Load Rating (A) | 10 |
| Colour | Silver |
| Call for Heat Indication | Blue LED |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| Materials | ABS |
| Tamper Resistant | Yes (Tamper Resistance Cover with Security Torx Screw) |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial with Digital Display |
| Set Temperature Range (°C) | -5 to 30 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | 3 Wire |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | -5 to +50 |
| Output Type | SPST Switched Live |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Mounting | Surface Only |
Dimensions
| Dimensions (mm) | 86 x 88 x 38 |
|---|
