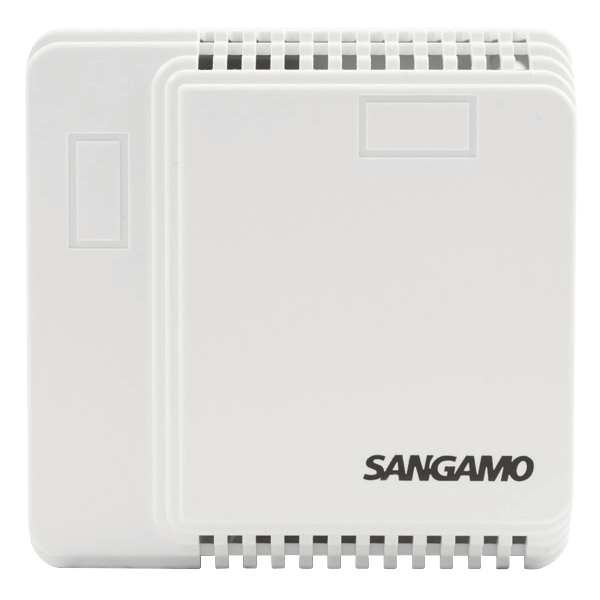

Sangamo CHOICE FSTAT1 Frost Thermostat
£
21
35
(Incl. VAT)
3 Years Warranty
Frost Thermostat
About this product
About this product
The Sangamo CHOICE FSTAT1, from Sangamo's range of heating controls, is a frost protection thermostat with a tamper resistant cover fitted with an accelerator heater.
Key features
- Bi-metallic sensing element
- SPDT, volt-free output: NO, COM & NC
- Total switch rating 250V AC, 10A
- 230 V AC supply
- IEC protection class II
- IP20 ingress protection
- White ABS, 78 x 78 x 36 mm
- Suitable for surface or switch box mounting
Frequently asked questions
What is the CHOICE FSTAT1 for?
It is a frost protection thermostat.
Is the cover tamper resistant?
Yes: it has a tamper resistant cover fitted with an accelerator heater.
What output does it have?
SPDT, volt-free; NO, COM & NC.
What supply does it need?
230 V AC.
How can it be mounted?
It is suitable for surface or switch box mounting.
-
Download
- CHOICE FSTAT1 Tech Sheet
£
21
35
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
78 x 78 x 36
Relay Voltage - Maximum (AC)
250
Colour
White
Relay Resistive Load Rating (A)
10
Sensor Type
Bi-Metallic Sensing Element
Materials
ABS
Weight (Kg)
0.16
Warranty (Years)
3
Set Temperature Range (°C)
-5 to 30
Supply Voltage (V AC)
230
IEC Protection Class
Class II
Temperature Rating
T50
Ingress Protection
IP20
Output Type
SPDT, Volt-Free; NO, COM & NC
Total Switch Rating
250V AC, 10A
Features
Tamper Resistant Cover Fitted with Accelerator Heater, Suitable for Surface or Switch Box Mounting
Dimensions
Dimensions (mm)
78 x 78 x 36
Specifications
| Dimensions (mm) | 78 x 78 x 36 |
|---|---|
| Relay Voltage - Maximum (AC) | 250 |
| Colour | White |
| Relay Resistive Load Rating (A) | 10 |
| Sensor Type | Bi-Metallic Sensing Element |
| Materials | ABS |
| Weight (Kg) | 0.16 |
| Warranty (Years) | 3 |
| Set Temperature Range (°C) | -5 to 30 |
| Supply Voltage (V AC) | 230 |
| IEC Protection Class | Class II |
| Temperature Rating | T50 |
| Ingress Protection | IP20 |
| Output Type | SPDT, Volt-Free; NO, COM & NC |
| Total Switch Rating | 250V AC, 10A |
| Features | Tamper Resistant Cover Fitted with Accelerator Heater, Suitable for Surface or Switch Box Mounting |
Dimensions
| Dimensions (mm) | 78 x 78 x 36 |
|---|
