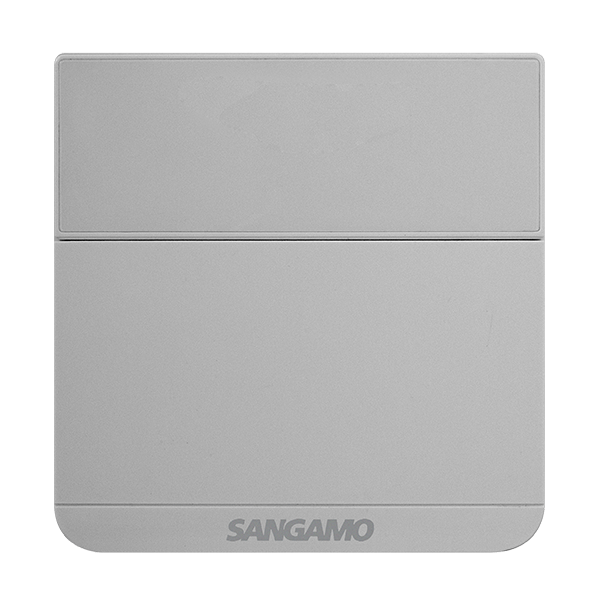

Sangamo Choice CHPRSTATTS Tamperproof Electronic Thermostat, Silver
£
29
86
(Incl. VAT)
3 Years Warranty
Tamperproof Electronic Thermostat
About this product
About this product
The Sangamo Choice CHPRSTATTS, from Sangamo's range of heating controls, is a tamperproof electronic room thermostat: it has a tamper resistance cover with a security Torx screw, a large temperature adjustment dial, TPI (time proportional & integral) control and a blue call for heat LED.
Key features
- Tamper resistance cover with security Torx screw
- Large temperature adjustment dial; set temperature range 5 to 30 °C
- Call for heat indication: blue LED
- Temperature swing adjustment 0.5 °C and 1 °C
- TPI (time proportional & integral) control
- ErP Class IV: TPI room thermostat for use with ON/OFF heaters, value 2%
- SPST switched live output, 10 A resistive
Frequently asked questions
How is the CHPRSTATTS made tamperproof?
It has a tamper resistance cover with a security Torx screw.
What temperature range can it be set to?
5 to 30 °C, on a large dial.
Does it have TPI control?
Yes: TPI (time proportional & integral) control.
Is the output volt-free?
No: it is SPST, switched live, rated 10 A resistive.
How is it wired?
3 wire, on 230 V AC 50 Hz; maximum cable size 1.5 mm² (flex) or 2.5 mm² (fixed).
-
Download
- CHPRSTATTS Tech Sheet
£
29
86
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 88 x 38
Number of Outputs
1
Colour
Silver
Relay/Contact Type
SPST Switched Live
Call for Heat Indication
Blue LED
Relay Resistive Load Rating (A)
10
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
Materials
ABS
Tamper Resistant
Yes (Tamper Resistance Cover with Security Torx Screw)
Warranty (Years)
3
Adjustment Type
Large Dial
Set Temperature Range (°C)
5 to 30
Temperature Swing Adjustment (°C)
0.5 and 1
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
3 Wire
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
-5 to +50
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Mounting
Surface Only
Output Type
SPST, Switched Live
Dimensions
Dimensions (mm)
86 x 88 x 38
Specifications
| Dimensions (mm) | 86 x 88 x 38 |
|---|---|
| Number of Outputs | 1 |
| Colour | Silver |
| Relay/Contact Type | SPST Switched Live |
| Call for Heat Indication | Blue LED |
| Relay Resistive Load Rating (A) | 10 |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| Materials | ABS |
| Tamper Resistant | Yes (Tamper Resistance Cover with Security Torx Screw) |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial |
| Set Temperature Range (°C) | 5 to 30 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | 3 Wire |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | -5 to +50 |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Mounting | Surface Only |
| Output Type | SPST, Switched Live |
Dimensions
| Dimensions (mm) | 86 x 88 x 38 |
|---|
