Sangamo CHPRSTATDP Choice Plus Room Thermostat Digital White 7 Day Programmable With Frost Protection
£
41
56
(Incl. VAT)
3 Years Warranty
CHOICE PLUS ROOM THERMOSTAT DIGITAL WHITE 7 DAY PROGRAMMABLE WITH FROST PROTECTION
About this product
About this product

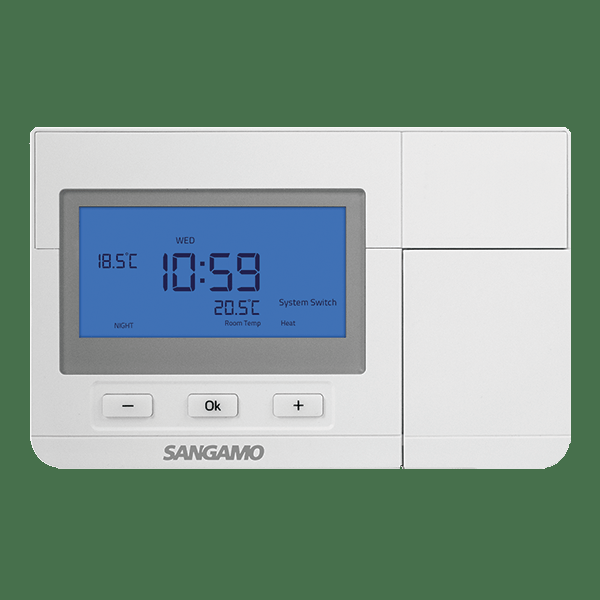

The Sangamo CHPRSTATDP is an electronic TPI room thermostat with a 24 hour or 7 day programming schedule, 5°C frost protection and a gloss white finish. It runs on 4 x AAA batteries (6 V DC). It is a 2 wire installation.
Key features
- 24 hour or 7 day programming, up to 6 operations per day, with a pre-programmed schedule
- Set temperature range 5 to 35 °C; temperature swing adjustment 0.5 and 1 °C
- TPI control, with optimum start/delay start and optimum stop
- 3 modes: permanent, timed and temporary override
- Frost protection at 5°C; automatic summer/winter time change
- ErP Class IV: TPI room thermostat for use with ON/OFF heaters, value 2%
- Volt free SPDT output (heating and cooling load)
- 4 x AAA batteries (6 V DC), with an LCD battery low indicator
Frequently asked questions
Can the CHPRSTATDP be programmed for 7 days?
Yes. Its programming schedule is 24 hour or 7 days, with up to 6 operations per day.
What temperature range can it be set to?
5 to 35 °C.
Does it have frost protection?
Yes, at 5°C.
How is it powered?
By 4 x AAA batteries, at 6 V DC.
What output does it have?
A volt free SPDT output (heating and cooling load).
-
Download
- CHPRSTATDP Tech Sheet
£
41
56
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Finish
Gloss White
Relay Resistive Load Rating (A)
3
Call for Heat Indication
LCD Display
Materials
ABS
Warranty (Years)
3
Schedule
24 Hour or 7 Days
Adjustment Type
Digital Programming with Digital Display
Set Temperature Range (°C)
5 to 35
Temperature Display Range (°C)
0 to 50
Temperature Swing Adjustment (°C)
0.5 and 1
Optimisation
Optimum Start/ Delay Start and Optimum Stop for Additional Efficiency
Available Operations
Up to 6 per Day
Modes Available
3 (Permanent, Timed, and Temporary Override)
Summer/Winter Time Change
Yes (Automatic)
Wiring Type
2 Wire
Operating Voltage (V DC)
6
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
Battery Type
4 x AAA
Battery Low Indicator
LCD Display
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
0 to +50
Frost Protection
Yes (5°C)
Weight
0.34 kg
GTIN
5060654461676
Commodity Code
9032102090
Output Type
Volt Free SPDT (Heating and Cooling Load)
Dimensions (mm)
140 x 88.6 x 32.1
Mounting
Surface Only
Pre-Programmed Schedule
Yes
TPI Control
Yes
Specifications
| Number of Outputs | 1 |
|---|---|
| Finish | Gloss White |
| Relay Resistive Load Rating (A) | 3 |
| Call for Heat Indication | LCD Display |
| Materials | ABS |
| Warranty (Years) | 3 |
| Schedule | 24 Hour or 7 Days |
| Adjustment Type | Digital Programming with Digital Display |
| Set Temperature Range (°C) | 5 to 35 |
| Temperature Display Range (°C) | 0 to 50 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Optimisation | Optimum Start/ Delay Start and Optimum Stop for Additional Efficiency |
| Available Operations | Up to 6 per Day |
| Modes Available | 3 (Permanent, Timed, and Temporary Override) |
| Summer/Winter Time Change | Yes (Automatic) |
| Wiring Type | 2 Wire |
| Operating Voltage (V DC) | 6 |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| Battery Type | 4 x AAA |
| Battery Low Indicator | LCD Display |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | 0 to +50 |
| Frost Protection | Yes (5°C) |
| Weight | 0.34 kg |
| GTIN | 5060654461676 |
| Commodity Code | 9032102090 |
| Output Type | Volt Free SPDT (Heating and Cooling Load) |
| Dimensions (mm) | 140 x 88.6 x 32.1 |
| Mounting | Surface Only |
| Pre-Programmed Schedule | Yes |
| TPI Control | Yes |
