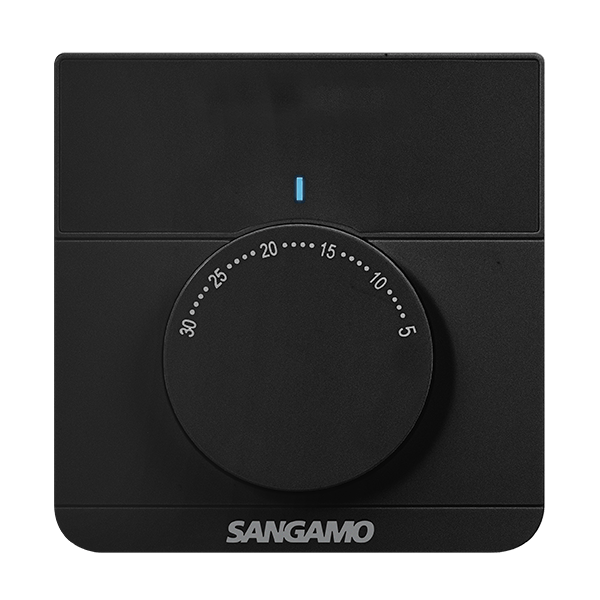

Sangamo Choice CHPRSTATB Electronic Thermostat, Black
£
22
08
(Incl. VAT)
3 Years Warranty
Electronic Thermostat, Black
About this product
About this product
The Sangamo Choice CHPRSTATB electronic room thermostat has a matt black finish, a large dial and a set temperature range of 5 to 30 °C, with TPI (time proportional & integral) control.
Key features
- Temperature swing adjustment 0.5 °C and 1 °C
- TPI (time proportional & integral) control
- ErP Class IV: TPI room thermostat for use with ON/OFF heaters, value 2%
- SPST switched live output, 10 A resistive
- Matt black, ABS housing
- Large temperature adjustment dial; set temperature range 5 to 30 °C
- Call for heat indication: blue LED
Frequently asked questions
What temperature range can the CHPRSTATB be set to?
5 to 30 °C, on a large dial.
Is the output volt-free?
No: it is SPST, switched live, rated 10 A resistive.
How is it wired?
3 wire, on 230 V AC 50 Hz; maximum cable size 1.5 mm² (flex) or 2.5 mm² (fixed).
What finish is the CHPRSTATB?
Matt Black.
Does it have TPI control?
Yes: TPI (time proportional & integral) control.
-
Download
- CHPRSTATB Tech Sheet
£
22
08
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 88 x 38
Relay Resistive Load Rating (A)
10
Finish
Matt Black
Call for Heat Indication
Blue LED
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
Materials
ABS
Warranty (Years)
3
Adjustment Type
Large Dial
Set Temperature Range (°C)
5 to 30
Temperature Swing Adjustment (°C)
0.5 and 1
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
3 Wire
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
-5 to +50
Output Type
SPST Switched Live
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Mounting
Surface Only
Dimensions
Dimensions (mm)
86 x 88 x 38
Specifications
| Dimensions (mm) | 86 x 88 x 38 |
|---|---|
| Relay Resistive Load Rating (A) | 10 |
| Finish | Matt Black |
| Call for Heat Indication | Blue LED |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| Materials | ABS |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial |
| Set Temperature Range (°C) | 5 to 30 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | 3 Wire |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | -5 to +50 |
| Output Type | SPST Switched Live |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Mounting | Surface Only |
Dimensions
| Dimensions (mm) | 86 x 88 x 38 |
|---|
