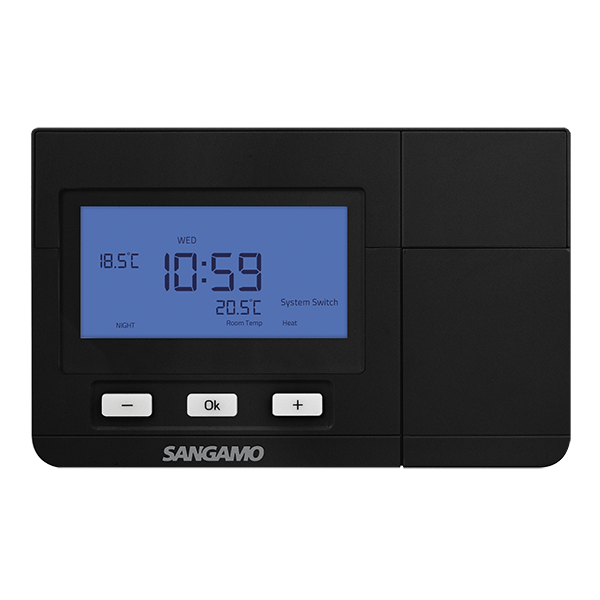

Sangamo Choice CHPRSTATDPB Programmable Room Thermostat
£
50
76
(Incl. VAT)
3 Years Warranty
Programmable Room Thermostat
About this product
About this product
The Sangamo Choice CHPRSTATDPB is an electronic thermostat with a 7 day programmable option, in matt black: its programming schedule is 24 hour or 7 days with up to 6 operations per day, it shows call for heat on an LCD display, and its output is volt free SPDT (heating and cooling load).
Key features
- Programming schedule 24 hour or 7 days; up to 6 operations per day
- 3 modes: permanent, timed and temporary override
- Pre-programmed schedule ready for use
- Automatic summer/winter time change
- Set temperature range 5 to 35 °C; temperature swing adjustment 0.5 °C and 1 °C
- TPI control for heating efficiency; optimum start/delay start and optimum stop
- Frost protection (5°C)
- Volt free SPDT output (heating and cooling load)
Frequently asked questions
What schedules can the CHPRSTATDPB run?
24 hour or 7 days, with up to 6 operations per day.
What modes does it have?
3: permanent, timed and temporary override.
What type is the output?
Volt free SPDT (heating and cooling load).
What batteries does it take?
4 x AAA, at 6 V DC; it has a battery low indicator on the LCD display.
Does it have frost protection?
Yes, at 5°C.
-
Download
- CHPRSTATDPB Tech Sheet
£
50
76
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Finish
Matt Black
Relay Resistive Load Rating (A)
3
Call for Heat Indication
LCD Display
Materials
ABS
Warranty (Years)
3
Schedule
24 Hour or 7 Days
Adjustment Type
Digital Programming with Digital Display
Set Temperature Range (°C)
5 to 35
Temperature Display Range (°C)
0 to 50
Temperature Swing Adjustment (°C)
0.5 and 1
Optimisation
Optimum Start/ Delay Start and Optimum Stop for Additional Efficiency
Available Operations
Up to 6 per Day
Modes Available
3 (Permanent, Timed, and Temporary Override)
Summer/Winter Time Change
Yes (Automatic)
Wiring Type
2 Wire
Operating Voltage (V DC)
6
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
Battery Type
4 x AAA
Battery Low Indicator
LCD Display
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
0 to +50
Frost Protection
Yes (5°C)
Output Type
Volt Free SPDT (Heating and Cooling Load)
Dimensions (mm)
140 x 88.6 x 32.1
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Pre-Programmed Schedule
Yes
Mounting
Surface Only
Specifications
| Number of Outputs | 1 |
|---|---|
| Finish | Matt Black |
| Relay Resistive Load Rating (A) | 3 |
| Call for Heat Indication | LCD Display |
| Materials | ABS |
| Warranty (Years) | 3 |
| Schedule | 24 Hour or 7 Days |
| Adjustment Type | Digital Programming with Digital Display |
| Set Temperature Range (°C) | 5 to 35 |
| Temperature Display Range (°C) | 0 to 50 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Optimisation | Optimum Start/ Delay Start and Optimum Stop for Additional Efficiency |
| Available Operations | Up to 6 per Day |
| Modes Available | 3 (Permanent, Timed, and Temporary Override) |
| Summer/Winter Time Change | Yes (Automatic) |
| Wiring Type | 2 Wire |
| Operating Voltage (V DC) | 6 |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| Battery Type | 4 x AAA |
| Battery Low Indicator | LCD Display |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | 0 to +50 |
| Frost Protection | Yes (5°C) |
| Output Type | Volt Free SPDT (Heating and Cooling Load) |
| Dimensions (mm) | 140 x 88.6 x 32.1 |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Pre-Programmed Schedule | Yes |
| Mounting | Surface Only |
Programmable Room Thermostat features
Sangamo Choice CHPRSTATDPB Programmable Room Thermostat
