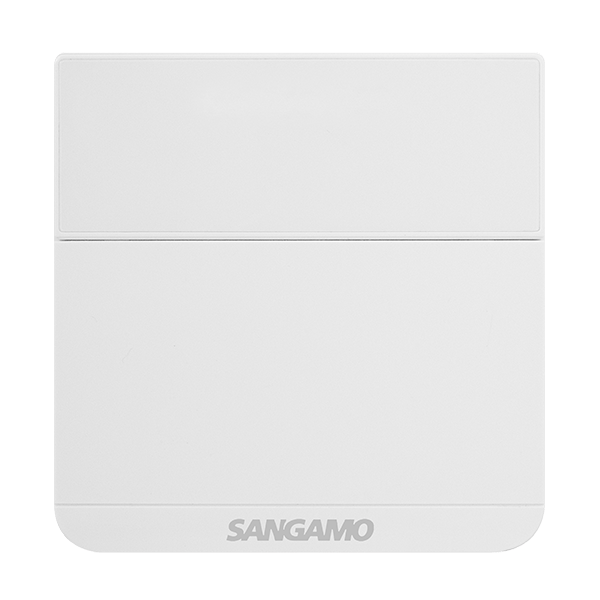

Sangamo Choice CHPRSTATF Frost Thermostat, White
£
22
74
(Incl. VAT)
3 Years Warranty
Frost Thermostat, White
About this product
About this product
Sangamo's Choice CHPRSTATF is a tamperproof electronic frost thermostat in gloss white, with a large dial with a digital display for a -5 to 30 °C set range, a blue call for heat LED and TPI (time proportional & integral) control. Its tamper resistance cover is secured with a security Torx screw.
Key features
- Temperature swing adjustment 0.5 °C and 1 °C
- TPI (time proportional & integral) control
- ErP Class IV: TPI room thermostat for use with ON/OFF heaters, value 2%
- SPST switched live output, 10 A resistive
- Gloss white, ABS housing
- Tamper resistance cover with security Torx screw
- Large temperature adjustment dial with digital display; set temperature range -5 to 30 °C
- Call for heat indication: blue LED
Frequently asked questions
What temperature range can the CHPRSTATF be set to?
-5 to 30 °C, on a large dial with a digital display.
Is the output volt-free?
No: it is SPST, switched live, rated 10 A resistive.
How is it wired?
3 wire, on 230 V AC 50 Hz; maximum cable size 1.5 mm² (flex) or 2.5 mm² (fixed).
What finish is the CHPRSTATF?
Gloss White.
How is the CHPRSTATF made tamperproof?
It has a tamper resistance cover with a security Torx screw.
-
Download
- CHPRSTATF Tech Sheet
£
22
74
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 88 x 38
Relay Resistive Load Rating (A)
10
Finish
Gloss White
Call for Heat Indication
Blue LED
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
Materials
ABS
Tamper Resistant
Yes (Tamper Resistance Cover with Security Torx Screw)
Warranty (Years)
3
Adjustment Type
Large Dial with Digital Display
Set Temperature Range (°C)
-5 to 30
Temperature Swing Adjustment (°C)
0.5 and 1
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
3 Wire
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
-5 to +50
Output Type
SPST Switched Live
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Mounting
Surface Only
Dimensions
Dimensions (mm)
86 x 88 x 38
Specifications
| Dimensions (mm) | 86 x 88 x 38 |
|---|---|
| Relay Resistive Load Rating (A) | 10 |
| Finish | Gloss White |
| Call for Heat Indication | Blue LED |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| Materials | ABS |
| Tamper Resistant | Yes (Tamper Resistance Cover with Security Torx Screw) |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial with Digital Display |
| Set Temperature Range (°C) | -5 to 30 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | 3 Wire |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | -5 to +50 |
| Output Type | SPST Switched Live |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Mounting | Surface Only |
Dimensions
| Dimensions (mm) | 86 x 88 x 38 |
|---|
