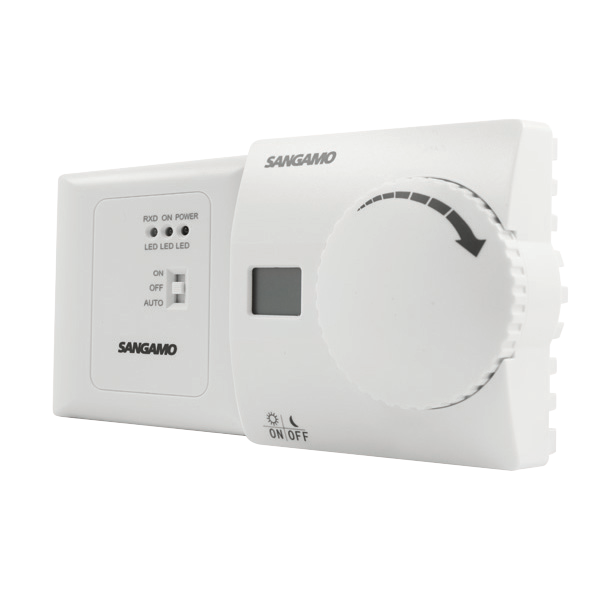

Sangamo CHOICE RSTAT3RF Wireless Digital Thermostat
£
68
41
(Incl. VAT)
3 Years Warranty
Wireless Digital Thermostat
About this product
About this product
The Sangamo CHOICE RSTAT3RF is a wireless digital thermostat from Sangamo's range of heating controls, with a clear LCD display showing room temperature and a large control dial. It transmits at 433 MHz with an 80 m open field range and has frost protection.
Key features
- Wireless digital thermostat
- Clear LCD display showing room temperature, large control dial
- Unique RF address to avoid interference
- 433 MHz, 80 m open field wireless range
- Set temperature range 5 to 30 °C; frost protection
- Comfort / Economy or On/Off modes
- SPDT volt-free output (NO, COM & NC)
Frequently asked questions
Is the CHOICE RSTAT3RF wireless?
Yes. It transmits at 433 MHz with an 80 m open field range.
What temperatures can it be set to?
5 to 30 °C.
Does it have frost protection?
Yes.
What powers the thermostat?
3 V DC from 2 x AA batteries.
Which modes does it have?
Comfort / Economy or On/Off.
-
Download
- CHOICE RSTAT3RF Tech Sheet
£
68
41
FAST delivery by Order within
Price
Technical Details
Specifications
Receiver dimensions (mm)
86 x 86 x 55
Thermostat transmitter dimensions (mm)
86 x 86 x 32
Colour
White
Materials
ABS
Mounting
Surface (Using Supplied Backbox)
Call for Heat Indication
LCD Display
Supply Voltage (V AC)
230
Maximum Cable Size (mm²)
1.5 (Rigid or Flex)
Battery Low Indicator
Yes
Connection Type
Radio Frequency
Adjustment Type
Comfort / Economy or On/Off
Wireless Range - Open Field (m)
80
Set Temperature Range (°C)
5 to 30
Wireless Range - Indoor (m)
30
Temperature Display Range (°C)
3 to 51
Relay Rating
16A (@250V AC) Volt Free Contact
Temperature Swing Adjustment (°C)
±1
IEC Protection Class
II
Transmission Frequency (MHz)
433
Operating Temperature (°C)
0 to +50
Frost Protection
Yes (5°C)
Warranty Years
3
Output Type
SPDT, Volt-Free; NO, COM & NC
Thermostat operating voltage (V DC)
3 (2 x AA)
Dimensions
Thermostat transmitter (mm)
86 x 86 x 32
Receiver (mm)
86 x 86 x 55
Specifications
| Receiver dimensions (mm) | 86 x 86 x 55 |
|---|---|
| Thermostat transmitter dimensions (mm) | 86 x 86 x 32 |
| Colour | White |
| Materials | ABS |
| Mounting | Surface (Using Supplied Backbox) |
| Call for Heat Indication | LCD Display |
| Supply Voltage (V AC) | 230 |
| Maximum Cable Size (mm²) | 1.5 (Rigid or Flex) |
| Battery Low Indicator | Yes |
| Connection Type | Radio Frequency |
| Adjustment Type | Comfort / Economy or On/Off |
| Wireless Range - Open Field (m) | 80 |
| Set Temperature Range (°C) | 5 to 30 |
| Wireless Range - Indoor (m) | 30 |
| Temperature Display Range (°C) | 3 to 51 |
| Relay Rating | 16A (@250V AC) Volt Free Contact |
| Temperature Swing Adjustment (°C) | ±1 |
| IEC Protection Class | II |
| Transmission Frequency (MHz) | 433 |
| Operating Temperature (°C) | 0 to +50 |
| Frost Protection | Yes (5°C) |
| Warranty Years | 3 |
| Output Type | SPDT, Volt-Free; NO, COM & NC |
| Thermostat operating voltage (V DC) | 3 (2 x AA) |
Dimensions
| Thermostat transmitter (mm) | 86 x 86 x 32 |
|---|---|
| Receiver (mm) | 86 x 86 x 55 |
