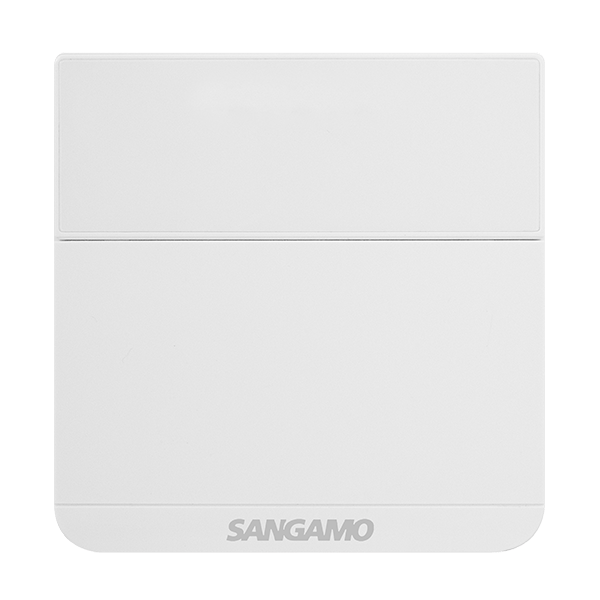

Sangamo Choice CHPRSTATT Tamperproof Electronic Thermostat, White
£
24
73
(Incl. VAT)
3 Years Warranty
Tamperproof Electronic Thermostat, White
About this product
About this product
From Sangamo's range of heating controls, the Choice CHPRSTATT is a tamperproof electronic room thermostat with a gloss white finish. A large dial sets it over 5 to 30 °C, a blue LED shows the call for heat, and the tamper resistance cover is secured with a security Torx screw.
Key features
- Large temperature adjustment dial; set temperature range 5 to 30 °C
- Call for heat indication: blue LED
- Temperature swing adjustment 0.5 °C and 1 °C
- TPI (time proportional & integral) control
- ErP Class IV: TPI room thermostat for use with ON/OFF heaters, value 2%
- 1 output: SPST switched live, 10 A resistive
- Gloss white ABS housing
- Tamper resistance cover with security Torx screw
Frequently asked questions
What temperature range can the CHPRSTATT be set to?
5 to 30 °C, on a large dial.
Does it have TPI control?
Yes: TPI (time proportional & integral) control.
What type is the output?
SPST, switched live, rated 10 A resistive.
How is it wired?
3 wire, on 230 V AC 50 Hz; maximum cable size 1.5 mm² (flex) or 2.5 mm² (fixed).
What finish is the CHPRSTATT?
Gloss White.
-
Download
- CHPRSTATT Tech Sheet
£
24
73
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 88 x 38
Number of Outputs
1
Finish
Gloss White
Relay/Contact Type
SPST Switched Live
Call for Heat Indication
Blue LED
Relay Resistive Load Rating (A)
10
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
Materials
ABS
Tamper Resistant
Yes (Tamper Resistance Cover with Security Torx Screw)
Warranty (Years)
3
Adjustment Type
Large Dial
Set Temperature Range (°C)
5 to 30
Temperature Swing Adjustment (°C)
0.5 and 1
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
3 Wire
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
-5 to +50
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Mounting
Surface Only
Dimensions
Dimensions (mm)
86 x 88 x 38
Specifications
| Dimensions (mm) | 86 x 88 x 38 |
|---|---|
| Number of Outputs | 1 |
| Finish | Gloss White |
| Relay/Contact Type | SPST Switched Live |
| Call for Heat Indication | Blue LED |
| Relay Resistive Load Rating (A) | 10 |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| Materials | ABS |
| Tamper Resistant | Yes (Tamper Resistance Cover with Security Torx Screw) |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial |
| Set Temperature Range (°C) | 5 to 30 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | 3 Wire |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | -5 to +50 |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Mounting | Surface Only |
Dimensions
| Dimensions (mm) | 86 x 88 x 38 |
|---|
