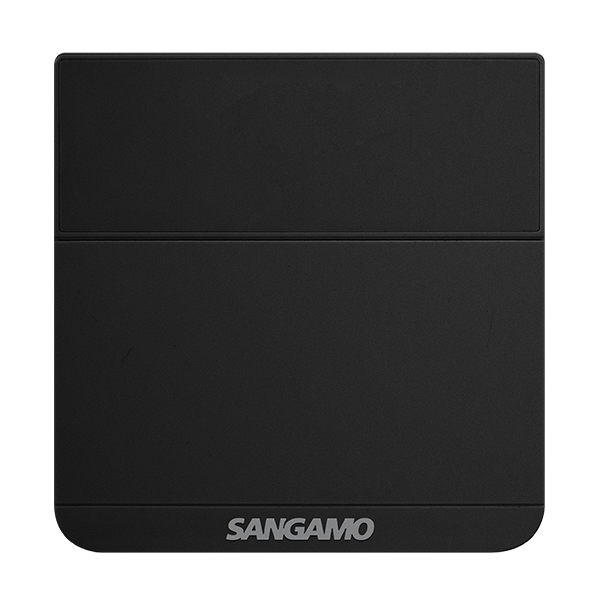

Sangamo Choice CHPRSTATTB Tamperproof Electronic Thermostat, Black
£
29
86
(Incl. VAT)
3 Years Warranty
Tamperproof Electronic Thermostat, Black
About this product
About this product
The Sangamo Choice CHPRSTATTB is a tamperproof electronic room thermostat in matt black: a large dial sets it over 5 to 30 °C, with TPI (time proportional & integral) control and a blue call for heat LED. Its tamper resistance cover is secured with a security Torx screw.
Key features
- Tamper resistance cover with security Torx screw
- Large temperature adjustment dial; set temperature range 5 to 30 °C
- Call for heat indication: blue LED
- Temperature swing adjustment 0.5 °C and 1 °C
- TPI (time proportional & integral) control
- ErP Class IV: TPI room thermostat for use with ON/OFF heaters, value 2%
- 1 output: SPST switched live, 10 A resistive
- Matt black ABS housing
Frequently asked questions
What temperature range can the CHPRSTATTB be set to?
5 to 30 °C, on a large dial.
How is the CHPRSTATTB made tamperproof?
It has a tamper resistance cover with a security Torx screw.
Does it have TPI control?
Yes: TPI (time proportional & integral) control.
What type is the output?
SPST, switched live, rated 10 A resistive.
How is it wired?
3 wire, on 230 V AC 50 Hz; maximum cable size 1.5 mm² (flex) or 2.5 mm² (fixed).
-
Download
- CHPRSTATTB Tech Sheet
£
29
86
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 88 x 38
Number of Outputs
1
Finish
Matt Black
Relay/Contact Type
SPST Switched Live
Call for Heat Indication
Blue LED
Relay Resistive Load Rating (A)
10
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
Materials
ABS
Tamper Resistant
Yes (Tamper Resistance Cover with Security Torx Screw)
Warranty (Years)
3
Adjustment Type
Large Dial
Set Temperature Range (°C)
5 to 30
Temperature Swing Adjustment (°C)
0.5 and 1
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
3 Wire
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
-5 to +50
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Mounting
Surface Only
Dimensions
Dimensions (mm)
86 x 88 x 38
Specifications
| Dimensions (mm) | 86 x 88 x 38 |
|---|---|
| Number of Outputs | 1 |
| Finish | Matt Black |
| Relay/Contact Type | SPST Switched Live |
| Call for Heat Indication | Blue LED |
| Relay Resistive Load Rating (A) | 10 |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| Materials | ABS |
| Tamper Resistant | Yes (Tamper Resistance Cover with Security Torx Screw) |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial |
| Set Temperature Range (°C) | 5 to 30 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | 3 Wire |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | -5 to +50 |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Mounting | Surface Only |
Dimensions
| Dimensions (mm) | 86 x 88 x 38 |
|---|
