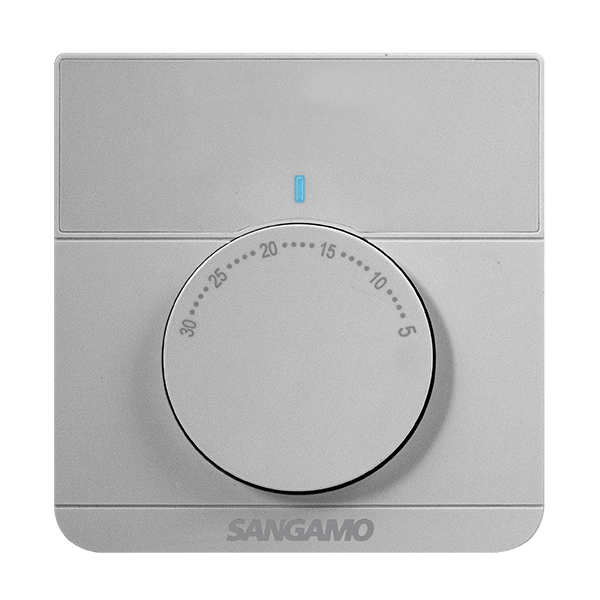

Sangamo Choice CHPRSTATS Electronic Thermostat, Silver
£
23
00
(Incl. VAT)
3 Years Warranty
Electronic Thermostat
About this product
About this product
The Sangamo Choice CHPRSTATS is an electronic room thermostat in silver, with a large temperature adjustment dial, TPI (time proportional & integral) control and a blue call for heat LED. Its SPST output is switched live, rated 10 A resistive.
Key features
- Large temperature adjustment dial; set temperature range 5 to 30 °C
- Call for heat indication: blue LED
- Temperature swing adjustment 0.5 °C and 1 °C
- TPI (time proportional & integral) control
- ErP Class IV: TPI room thermostat for use with ON/OFF heaters, value 2%
- SPST switched live output, 10 A resistive
- 3 wire, 230 V AC 50 Hz
Frequently asked questions
What temperature range can the CHPRSTATS be set to?
5 to 30 °C, on a large dial.
Does it have TPI control?
Yes: TPI (time proportional & integral) control.
What is its ErP class?
ErP Class IV: a TPI room thermostat for use with ON/OFF heaters, value 2%.
Is the output volt-free?
No: it is SPST, switched live, rated 10 A resistive.
How is it wired?
3 wire, on 230 V AC 50 Hz; maximum cable size 1.5 mm² (flex) or 2.5 mm² (fixed).
-
Download
- CHPRSTATS Tech Sheet
£
23
00
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 88 x 38
Relay/Contact Type
SPST Switched Live
Colour
Silver
Relay Resistive Load Rating (A)
10
Call for Heat Indication
Blue LED
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
Materials
ABS
Warranty (Years)
3
Adjustment Type
Large Dial
Set Temperature Range (°C)
5 to 30
Temperature Swing Adjustment (°C)
0.5 and 1
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
3 Wire
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
-5 to +50
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Mounting
Surface Only
Output Type
SPST, Switched Live
Dimensions
Dimensions (mm)
86 x 88 x 38
Specifications
| Dimensions (mm) | 86 x 88 x 38 |
|---|---|
| Relay/Contact Type | SPST Switched Live |
| Colour | Silver |
| Relay Resistive Load Rating (A) | 10 |
| Call for Heat Indication | Blue LED |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| Materials | ABS |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial |
| Set Temperature Range (°C) | 5 to 30 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | 3 Wire |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | -5 to +50 |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Mounting | Surface Only |
| Output Type | SPST, Switched Live |
Dimensions
| Dimensions (mm) | 86 x 88 x 38 |
|---|
