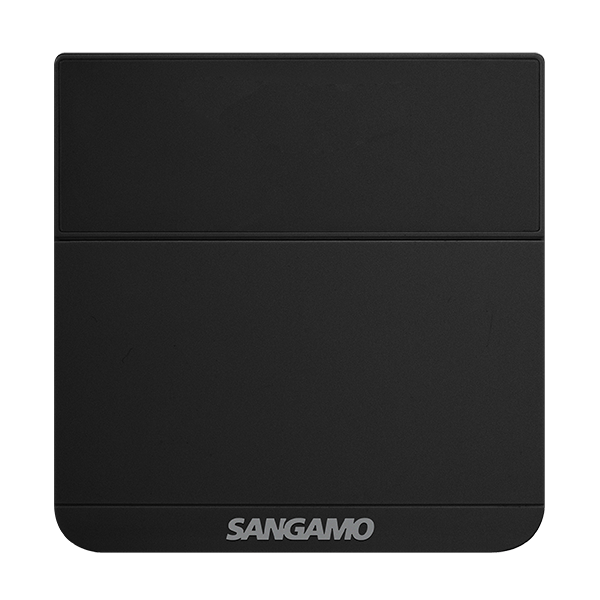

Sangamo Choice CHPRSTATFB Frost Thermostat, Black
£
26
41
(Incl. VAT)
3 Years Warranty
Frost Thermostat, Black
About this product
About this product
The Sangamo Choice CHPRSTATFB is a tamperproof electronic frost thermostat in matt black, set by a large dial with a digital display over a -5 to 30 °C range, with TPI (time proportional & integral) control and a blue call for heat LED. Its tamper resistance cover is secured with a security Torx screw.
Key features
- Tamper resistance cover with security Torx screw
- Large temperature adjustment dial with digital display; set temperature range -5 to 30 °C
- Call for heat indication: blue LED
- Temperature swing adjustment 0.5 °C and 1 °C
- TPI (time proportional & integral) control
- ErP Class IV: TPI room thermostat for use with ON/OFF heaters, value 2%
- SPST switched live output, 10 A resistive
- Matt black, ABS housing
Frequently asked questions
What temperature range can the CHPRSTATFB be set to?
-5 to 30 °C, on a large dial with a digital display.
How is the CHPRSTATFB made tamperproof?
It has a tamper resistance cover with a security Torx screw.
Does it have TPI control?
Yes: TPI (time proportional & integral) control.
What is its ErP class?
ErP Class IV: a TPI room thermostat for use with ON/OFF heaters, value 2%.
Is the output volt-free?
No: it is SPST, switched live, rated 10 A resistive.
-
Download
- CHPRSTATFB Tech Sheet
£
26
41
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 88 x 38
Relay Resistive Load Rating (A)
10
Finish
Matt Black
Call for Heat Indication
Blue LED
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
Materials
ABS
Tamper Resistant
Yes (Tamper Resistance Cover with Security Torx Screw)
Warranty (Years)
3
Adjustment Type
Large Dial with Digital Display
Set Temperature Range (°C)
-5 to 30
Temperature Swing Adjustment (°C)
0.5 and 1
Supply Voltage (V AC)
230
Frequency (Hz)
50
Wiring Type
3 Wire
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
-5 to +50
Output Type
SPST Switched Live
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Mounting
Surface Only
Dimensions
Dimensions (mm)
86 x 88 x 38
Specifications
| Dimensions (mm) | 86 x 88 x 38 |
|---|---|
| Relay Resistive Load Rating (A) | 10 |
| Finish | Matt Black |
| Call for Heat Indication | Blue LED |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| Materials | ABS |
| Tamper Resistant | Yes (Tamper Resistance Cover with Security Torx Screw) |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial with Digital Display |
| Set Temperature Range (°C) | -5 to 30 |
| Temperature Swing Adjustment (°C) | 0.5 and 1 |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Wiring Type | 3 Wire |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | -5 to +50 |
| Output Type | SPST Switched Live |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Mounting | Surface Only |
Dimensions
| Dimensions (mm) | 86 x 88 x 38 |
|---|
