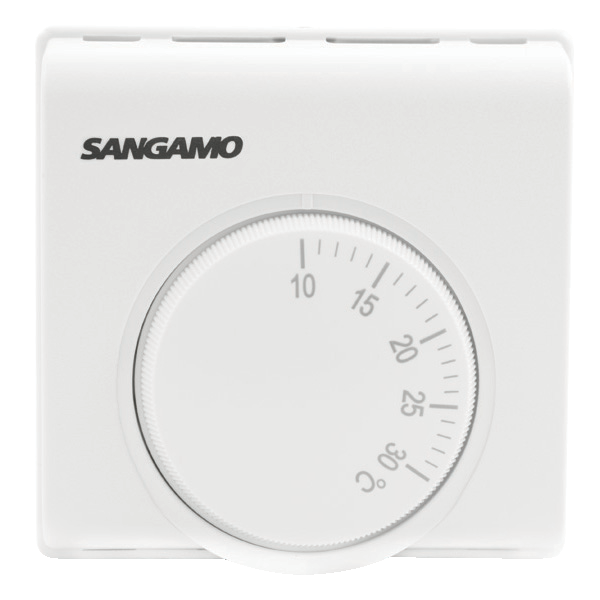

Sangamo CHOICE RSTAT1 Mechanical Room Thermostat
£
12
81
(Incl. VAT)
3 Years Warranty
Choice Mechanical Room Thermostat
About this product
About this product
The Sangamo CHOICE RSTAT1 is a mechanical thermostat from Sangamo's range of heating controls, with a dual mechanical diaphragm sensor and a set temperature range of 10 to 30 °C. It has a volt-free SPDT output (NO, COM & NC) and three terminal heating/cooling changeover.
Key features
- Mechanical thermostat with dual mechanical diaphragm sensor
- Set temperature range 10 to 30 °C; temperature differential approx. 4 °C
- 2 wire installation
- Three terminal heating/cooling changeover
- SPDT, volt-free output (NO, COM & NC); total switch rating 10 (3) A, up to 230 V
- Double insulated construction
- White ABS, 83 x 83 x 37 mm
Frequently asked questions
What temperature range can the CHOICE RSTAT1 be set to?
10 to 30 °C, with a temperature differential of approx. 4 °C.
How is it wired?
It is a 2 wire installation.
Can it switch cooling as well as heating?
It has three terminal heating/cooling changeover, with a volt-free SPDT output (NO, COM & NC).
What can it switch?
Total switch rating is 10 (3) A: 10 A resistive and 3 A inductive, up to 230.
-
Download
- CHOICE RSTAT1 Tech Sheet
£
12
81
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
83 x 83 x 37
Relay Resistive Load Rating (A)
10
Colour
White
Relay Inductive Load Rating (A)
3
Sensor Type
Dual Mechanical Diaphram
Warranty (Years)
3
Set Temperature Range (°C)
10 to 30
Temperature Differential (°C)
Approx. 4
Maximum Switchable Voltage
230
Operating Temperature (°C)
0 to +40
Additional Information
Double Insulated Construction
Weight
0.162 kg
GTIN
5026961006825
Commodity Code
9032108090
Materials
ABS
Output Type
SPDT, Volt-Free; NO, COM & NC
Total Switch Rating
10 (3) A
Installation
2 Wire
Heating/Cooling
Three terminal heating/cooling changeover
Dimensions
Dimensions (mm)
83 x 83 x 37
Specifications
| Dimensions (mm) | 83 x 83 x 37 |
|---|---|
| Relay Resistive Load Rating (A) | 10 |
| Colour | White |
| Relay Inductive Load Rating (A) | 3 |
| Sensor Type | Dual Mechanical Diaphram |
| Warranty (Years) | 3 |
| Set Temperature Range (°C) | 10 to 30 |
| Temperature Differential (°C) | Approx. 4 |
| Maximum Switchable Voltage | 230 |
| Operating Temperature (°C) | 0 to +40 |
| Additional Information | Double Insulated Construction |
| Weight | 0.162 kg |
| GTIN | 5026961006825 |
| Commodity Code | 9032108090 |
| Materials | ABS |
| Output Type | SPDT, Volt-Free; NO, COM & NC |
| Total Switch Rating | 10 (3) A |
| Installation | 2 Wire |
| Heating/Cooling | Three terminal heating/cooling changeover |
Dimensions
| Dimensions (mm) | 83 x 83 x 37 |
|---|
Choice Mechanical Room Thermostat features
