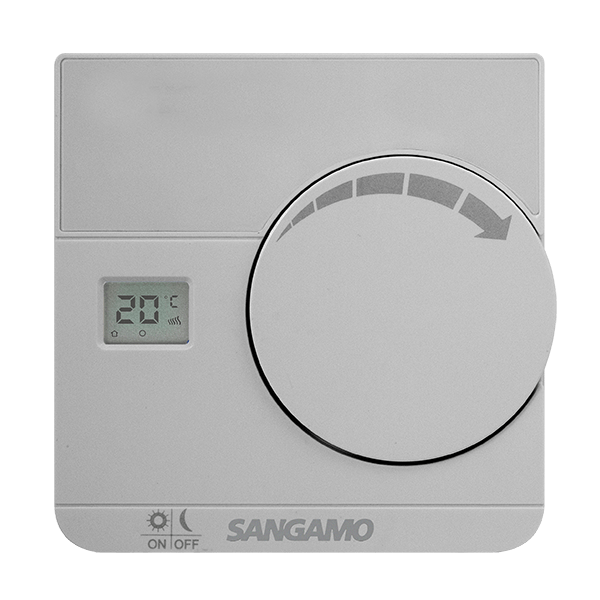

Sangamo Choice CHPRSTATDS Digital Thermostat, Silver
£
30
88
(Incl. VAT)
3 Years Warranty
Digital Thermostat, Silver
About this product
About this product
From Sangamo's range of heating controls, the Choice CHPRSTATDS is an electronic thermostat with a digital display, set by a large dial over 5 to 30 °C. It is battery powered (2 x AA, batteries supplied), with comfort/economy or on/off modes and 5°C frost protection.
Key features
- Comfort/economy or on/off modes
- Battery powered: 2 x AA (batteries supplied), 3 V DC; low battery shown on the LCD display
- 5°C frost protection
- Temperature swing adjustment 0.5 °C and 1 °C
- TPI (time proportional & integral) control; ErP Class IV, value 2%
- Volt free SPST output (heating and cooling load), 3 A resistive
- Large dial with digital display; set temperature range 5 to 30 °C
Frequently asked questions
What temperature range can the CHPRSTATDS be set to?
5 to 30 °C, on a large dial with a digital display.
What powers it?
2 x AA batteries (supplied), at 3 V DC; low battery status shows on the LCD display.
Does it have frost protection?
Yes, at 5°C.
Is the output volt-free?
Yes: volt free SPST (heating and cooling load), rated 3 A resistive.
How is it wired?
2 wire; maximum cable size 1.5 mm² (flex) or 2.5 mm² (fixed).
-
Download
- CHPRSTATDS Tech Sheet
£
30
88
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 88 x 38
Relay Resistive Load Rating (A)
3
Finish
Gloss White
Sensor Type
Electronic Sensor for Accurate and Responsive Performance
Materials
ABS
Warranty (Years)
3
Adjustment Type
Large Dial with Digital Display
Set Temperature Range (°C)
5 to 30
Temperature Display Range (°C)
3 to 51
Modes Available
On/Off/Comfort/Economy
Wiring Type
2 Wire
Operating Voltage (V DC)
3
Maximum Cable Size (mm²)
1.5 (Flex), 2.5 (Fixed)
Battery Type
2 x AA
Battery Low Indicator
LCD Display
EE Class
ErP Class IV
Class Description
TPI Room Thermostat, for use with ON/OFF Heaters, Value 2%
Operating Temperature (°C)
0 to +50
Frost Protection
Yes (5°C)
Output Type
Volt Free SPST (Heating and Cooling Load)
Call for Heat Indication
LCD Display
TPI (Time Proportional & Integral) Control for Heating Efficiency
Yes
Mounting
Surface Only
Dimensions
Dimensions (mm)
86 x 88 x 38
Specifications
| Dimensions (mm) | 86 x 88 x 38 |
|---|---|
| Relay Resistive Load Rating (A) | 3 |
| Finish | Gloss White |
| Sensor Type | Electronic Sensor for Accurate and Responsive Performance |
| Materials | ABS |
| Warranty (Years) | 3 |
| Adjustment Type | Large Dial with Digital Display |
| Set Temperature Range (°C) | 5 to 30 |
| Temperature Display Range (°C) | 3 to 51 |
| Modes Available | On/Off/Comfort/Economy |
| Wiring Type | 2 Wire |
| Operating Voltage (V DC) | 3 |
| Maximum Cable Size (mm²) | 1.5 (Flex), 2.5 (Fixed) |
| Battery Type | 2 x AA |
| Battery Low Indicator | LCD Display |
| EE Class | ErP Class IV |
| Class Description | TPI Room Thermostat, for use with ON/OFF Heaters, Value 2% |
| Operating Temperature (°C) | 0 to +50 |
| Frost Protection | Yes (5°C) |
| Output Type | Volt Free SPST (Heating and Cooling Load) |
| Call for Heat Indication | LCD Display |
| TPI (Time Proportional & Integral) Control for Heating Efficiency | Yes |
| Mounting | Surface Only |
Dimensions
| Dimensions (mm) | 86 x 88 x 38 |
|---|
