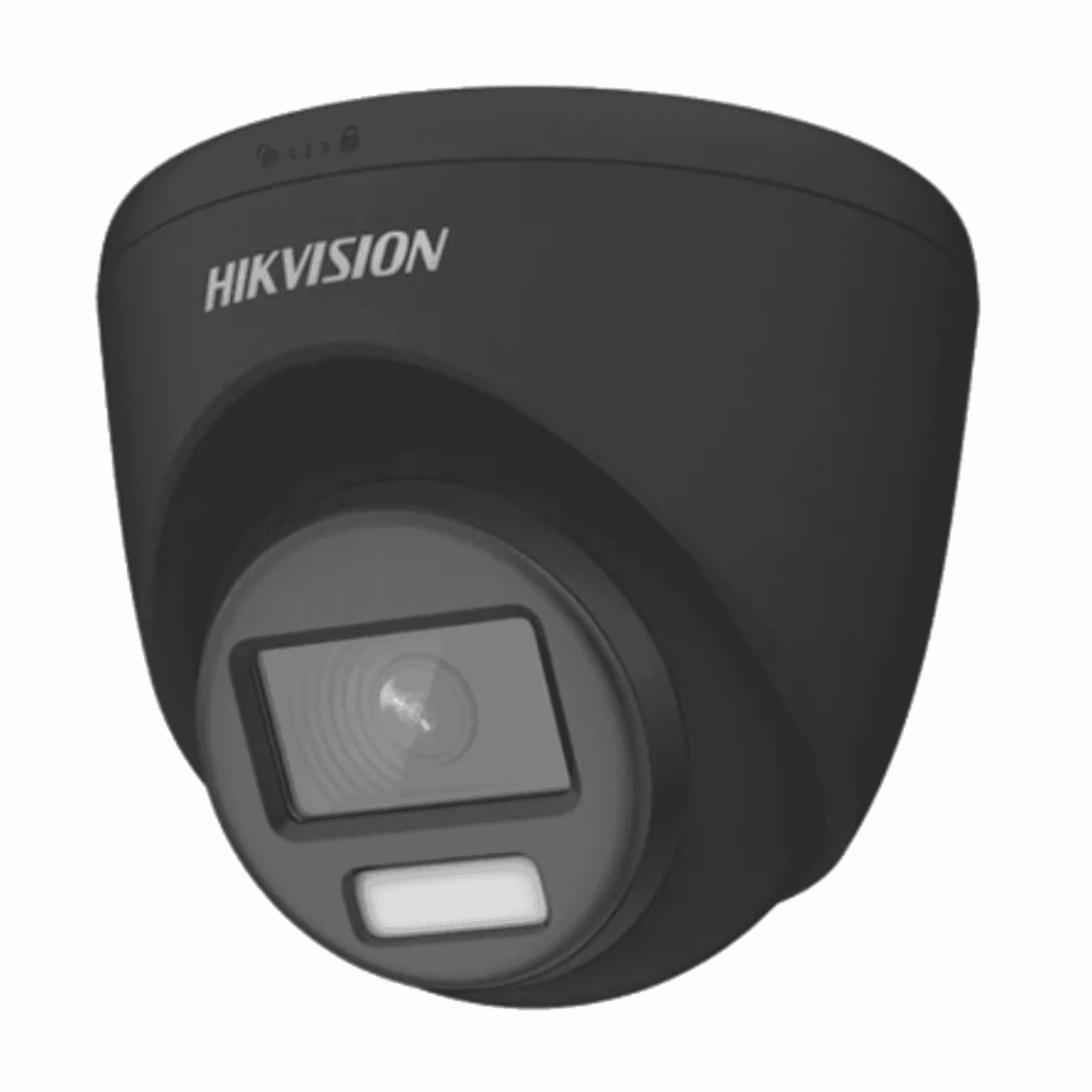

Hikvision DS-2CE72KF0T-LFS 3K ColorVu Turret Camera, 2.8 mm, Built-in Mic, Hybrid Light, IP67

Introduction: Meet the Hikvision DS-2CE72KF0T-LFS

The Hikvision DS-2CE72KF0T-LFS is a compact but capable analogue turret camera designed to bring high-quality colour imaging and audio to everyday surveillance applications. Featuring a 3K (2960 × 1665) ColorVu sensor, a 2.8 mm wide-angle lens, a built-in microphone and Hikvision's smart hybrid illumination (white light + IR), this model aims to bridge the gap between basic day/night cameras and more costly IP solutions. It supports switchable analogue outputs (TVI/AHD/CVI/CVBS) and Audio-over-Coax (AoC), making it easy to integrate with many existing recorder setups. Weatherproof to IP67 standards and rated for wide temperature ranges, it is suitable for both indoor and outdoor monitoring where colour detail and audio can improve identification and context.

• 3K Colour Sensor:2960 × 1665 resolution for sharper scene detail than typical 1080p analogue cameras.
• 2.8 mm Fixed Lens:Wide field of view (~110° horizontal) to cover entrances, driveways and general-purpose areas.
• Smart Hybrid Illumination:Configurable white light and IR for colour imaging at 0 Lux with white light on, or conventional IR at a distance.
• Audio Support:Built-in microphone with AoC simplifies audio capture without separate cabling when paired with compatible recorders.
• Switchable Outputs:TVI/AHD/CVI/CVBS compatibility for maximum recorder flexibility.
• Robust Housing:IP67 ingress protection and operating range from −40 °C to 60 °C for harsh environments.

Detailed specifications and practical benefits

Beyond the headline features, the DS-2CE72KF0T-LFS packs a number of technical advantages that translate into real-world benefits for installers and end users.

• 3K CMOS Sensor (2960 × 1665):Provides more pixels across the scene than 1080p sensors, improving the ability to read number plates, recognise faces at moderate distances and extract more detail from wide scenes.
• 2.8 mm Fixed Lens:The wide ~110° horizontal field of view is ideal for general coverage — lobbies, storefronts, porches — where a single camera must cover a broad area. Keep in mind that very fine detail at long distances will be less than with a telephoto lens.
• Low-light performance:The camera reaches 0.001 Lux sensitivity with AGC and F1.0, and can deliver full-colour images at 0 Lux when the white light is activated. This offers a tangible advantage for identification at night compared with IR-only cameras that produce monochrome imagery.

• Frame rate options:Support for multiple analogue standards and frame rates ensures compatibility with a wide range of DVRs. The camera supports 3K@20fps in TVI mode and other formats up to 4–5MP equivalent frame rates depending on the standard chosen.
• WDR & NR:Digital WDR and 2D DNR (noise reduction) improve image clarity in scenes with contrasts and reduce bandwidth noise in low light.

• Built-in microphone and AoC:Capturing audio without running a separate cable simplifies installation and can add important contextual information — such as voices or alarm sounds — to video evidence. Note that AoC requires a compatible recorder to receive audio over coax.
• Power:12 VDC with a typical maximum power draw of approximately 5.2 W makes powering straightforward for most installs.

• Smart hybrid illumination:Configurable white-light supplement alongside IR means you can choose full-colour night imaging when identification is critical, or use IR for covert night surveillance.
• Ranges:Both IR and white light are effective up to around 40 m in appropriate conditions, allowing good coverage of larger open areas at night.
• Durability:IP67 rating and a metal main body with a plastic cover ensure reliable outdoor performance and resistance to dust and heavy rain. The broad operating temperature range suits cold and hot climates.

Use cases and scenarios where this camera excels

The DS-2CE72KF0T-LFS is targeted at installations where good colour detail and basic audio are valuable but where the budget or infrastructure favors analogue over IP systems. Typical use cases include:

• Residential perimeter and driveway monitoring:A single turret camera mounted above a driveway or gate can capture wide-angle views in colour at night when the white supplement light is triggered, helping with vehicle or clothing identification.
• Retail and small business:Overhead placement in shops, entrances and sales floors benefits from wide coverage and the ability to capture audio cues (customer interactions, alarms). Colour night imaging helps identify incident details after hours.
• Entranceways and lobbies:The built-in microphone can help capture useful audio context, while the wide field of view covers entire foyer areas with a single camera.
• Public and shared spaces:Parks, communal courtyards or shared car parks can benefit from the weatherproofing and hybrid light to maintain useful footage day and night.
• Legacy system upgrades:For sites with existing analogue DVR infrastructure, the camera’s switchable outputs and AoC support simplify integration without a full system overhaul.

How it compares to similar products

Evaluating the DS-2CE72KF0T-LFS means looking at three common alternatives: basic IR analogue cameras, higher-resolution IP cameras, and other ColorVu/white-light hybrid analogue models.

• Vs. standard IR analogue cameras:Traditional IR cameras deliver monochrome night images; the Hikvision ColorVu hybrid design produces full-colour images at night when white light is used. Colour can make a decisive difference in identifying clothing colours, vehicle paint and other scene details.
• Vs. IP (PoE) cameras:IP cameras typically offer higher resolutions, advanced analytics and centralized PoE power, but they often cost more and may require network upgrades. The DS-2CE72KF0T-LFS provides a cost-effective middle ground — improved detail over 1080p analogue and simpler integration where coaxial cabling exists.
• Vs. other hybrid analogue cameras:Many hybrid models offer white-light supplement or improved low-light sensors, but the DS-2CE72KF0T-LFS stands out with its 3K sensor and AoC support. Its switchable TVI/AHD/CVI/CVBS outputs also make it unusually flexible for mixed-environment installations.

Installation notes and practical tips

• Power requirement is 12 VDC and draws about 5.2 W maximum — plan power supplies accordingly and consider centralised power for multiple cameras.
• AoC requires a compatible recorder to receive audio over coax; check your DVR/NVR specification before relying on the camera’s mic feature.
• Position the camera to take advantage of the 2.8 mm wide field of view but be aware that long-range identification decreases with wider lenses; choose placement closer to key entry points if you need faces or plates captured.
• Adjust the hybrid lighting configuration to balance visibility and discretion: white light for identification, IR for covert surveillance.
• Follow local electrical and safety codes during installation and, when in doubt, engage a qualified security installer or electrician.

Conclusion: Who should choose the DS-2CE72KF0T-LFS?

The Hikvision DS-2CE72KF0T-LFS 3K ColorVu turret camera is an excellent choice for homeowners, small business owners and installers seeking better-than-1080p analogue image quality with the practical benefits of built-in audio and flexible recorder compatibility. It sits in a sweet spot where cost-effectiveness, weatherproof reliability and improved night-time colour identification converge.

In short, if you need a rugged, easy-to-install turret camera that provides wide-angle coverage, useful audio, and the option of full-colour night imaging, the DS-2CE72KF0T-LFS is a compelling, budget-friendly option to consider. Always verify recorder compatibility for AoC and the preferred analogue format, and adjust installation and hybrid light settings to meet the priorities of discretion versus identification for your site.
