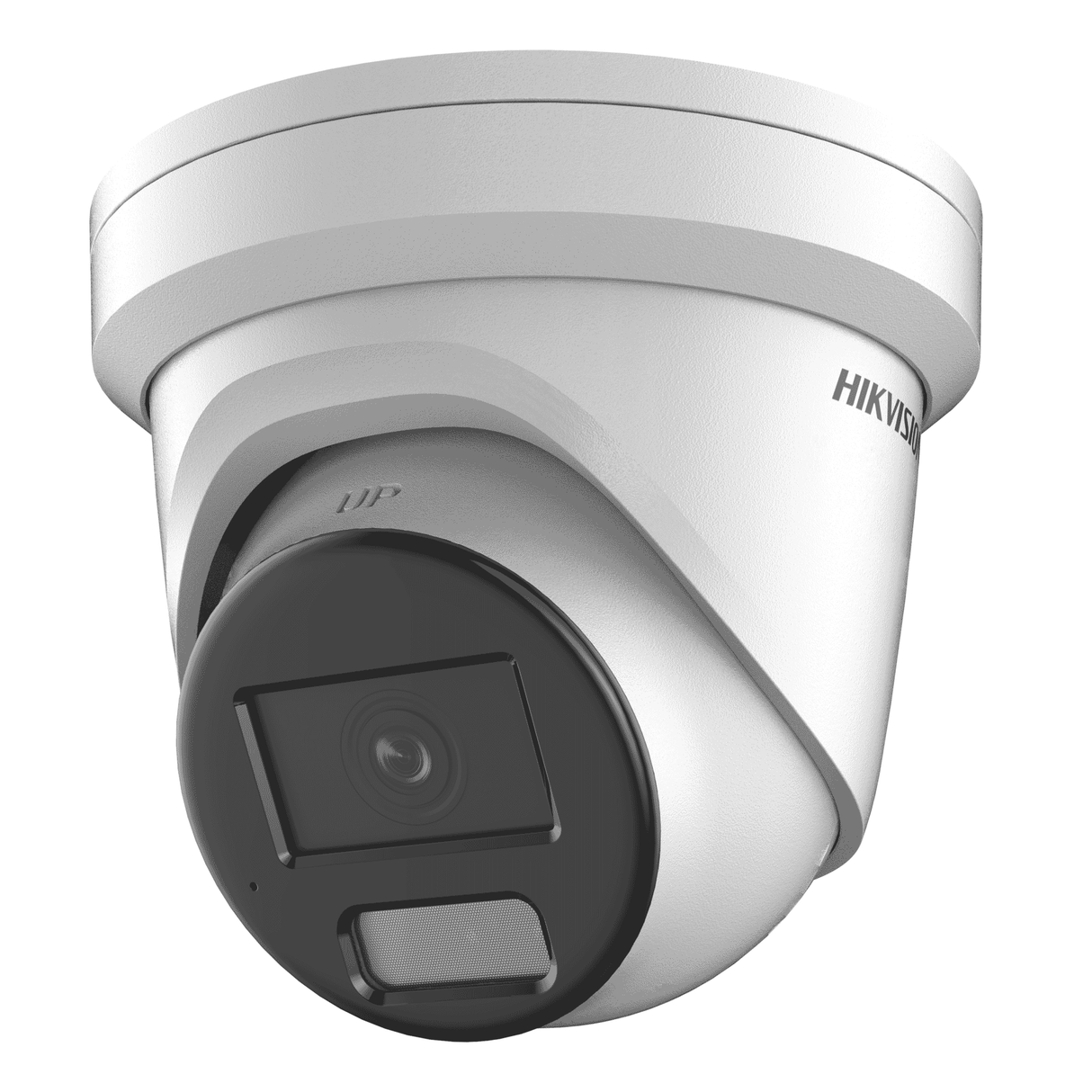

Hikvision DS-2CD2346G2H-IU 4MP Turret IP Camera, 2.8mm, DarkFighter, AcuSense, Built-in Mic

Introduction to the Hikvision DS-2CD2346G2H-IU — Key features at a glance

Hikvision DS-2CD2346G2H-IUis a 4 MP fixed turret IP camera designed for reliable perimeter and general-purpose surveillance. Combining a 4 MP progressive CMOS sensor, Powered-by-DarkFighter low-light imaging and Hikvisions AcuSense deep-learning human/vehicle classification, this model targets installations that need better low-light colour, fewer false alarms and flexible deployment options. The camera ships with a 2.8 mm wide-angle lens (approximately 100 horizontal FOV), on-board microSD storage support up to 512 GB, built-in microphone on the U variant and weather-resistant IP67 housing. It supports PoE or 12 VDC power and common network protocols for compatibility with most NVRs and VMS systems.

Detailed specifications and benefits

• Sensor and resolution:A 1/3 progressive CMOS sensor delivers 4 MP (2688  1520) resolution, providing sharper detail than typical 2 MP cameras and improved identification at distance.
• Powered-by-DarkFighter low-light:DarkFighter technology enhances colour reproduction at very low lux levels, enabling useful colour images in near-dark environments without relying entirely on IR illumination. This is particularly valuable for identifying clothing colours, vehicle colours and other details at night.
• WDR and frame rates:120 dB true WDR helps manage scenes with strong backlight or mixed lighting, while the camera supports up to 30 fps (60 Hz systems) or 25 fps (50 Hz) at full resolution for smooth motion capture.

• Fixed 2.8 mm lens:The M12-mounted 2.8 mm lens gives an approximate 100.2 horizontal field of view, making the camera well suited to general surveillance, entrances, parking areas and shorter-range perimeter coverage.
• Aperture and IR range:With a bright F1.0 aperture and up to 30 m of 850 nm IR illumination, the camera blends DarkFighter colour performance with IR-assisted black-and-white imaging for scenes where extra reach is needed after dark.

• Efficient codecs:Support for H.265+/H.265 and H.264+/H.264 reduces bandwidth and storage requirements without sacrificing image quality.
• Advanced video features:3D digital noise reduction (3D DNR), BLC/HLC, region of interest (ROI) and SVC support help optimize image clarity and recording efficiency in real-world scenes.
• Bitrate range:Configurable from 32 kbps to 8 Mbps to balance quality and network constraints.

• AcuSense human/vehicle classification:Deep-learning based analytics sort human and vehicle targets from other motion events, significantly reducing nuisance alarms caused by animals, weather or foliage. This improves event relevance and helps operators focus on real incidents.
• Privacy masks:Up to four programmable privacy masks let you block areas from recording or live view, aiding regulatory compliance and privacy-sensitive deployments.

• Built-in microphone:The U variant includes a mono mic for basic audio capture to complement video evidence, useful for entrances, driveways and retail counters.
• On-board storage:microSD/microSDHC/microSDXC support up to 512 GB allows edge recording for redundancy or when network storage is unavailable.
• Protocols and interoperability:ONVIF (Profile S/G/T), ISAPI, RTSP and HTTPS support enable integration with many third-party NVRs, VMS solutions and network environments.

• Flexible power:PoE (IEEE 802.3af) simplifies deployments with a single network cable carrying power and data, while 12 VDC input gives an alternative when PoE is not available.
• Low consumption:Typical maximum power consumption is modest (Max 7.2 W on 12 VDC; Max 9 W on PoE), suitable for PoE midspans and switches.
• Rugged housing:IP67 ingress protection and an operating temperature range down to 30 C make the turret suitable for outdoor use in many climates (refer to datasheet for regional certifications and mounting guidance).

Use cases and scenarios where the DS-2CD2346G2H-IU excels

• Perimeter and entrance surveillance:The wide-angle 2.8 mm lens covers gates, building entries and short-to-medium perimeter runs. Combined with AcuSense filtering, it reduces false triggers at busy access points.
• Parking lots and driveways:DarkFighter helps preserve colour information of vehicles at night, improving plate/vehicle identification and incident investigations when ambient light is low.
• Retail and small business locations:The built-in microphone, high resolution and on-board edge storage make the camera suitable for front doors, sidewalks and small parking areas where moderate range and audio context are useful.
• Residential and advanced DIY:PoE support and a turret form factor simplify homeowner and small integrator installations, offering better-than-basic imaging and analytics without expensive specialized hardware.
• Backup and redundancy deployments:Local microSD recording provides resilience against network outages or NVR downtime, storing critical footage at the edge for later retrieval.

Comparisons with similar products in the market

When evaluating the DS-2CD2346G2H-IU against alternatives, consider three common comparison axes: low-light performance, analytics, and deployment flexibility.

• The step up to 4 MP gives noticeably higher detail and more useful cropping or digital zoom. Where identification at moderate distances matters, the extra pixels are a clear advantage.
• DarkFighter colour performance outperforms many standard 2 MP sensors that revert to monochrome sooner, meaning more usable colour information in near-dark environments.

• If you need improved night colour and fewer false alarms, the DS-2CD2346G2H-IU is preferable to models without DarkFighter or AcuSense. Models without AcuSense may require more tuning or result in more nuisance alerts from non-human/vehicle motion.
• For longer-range surveillance, PTZ or varifocal dome/turret models with larger optics are better suited—this 2.8 mm lens is optimized for wider coverage, not long-distance detail.

• Dahuas Starlight technology competes closely with Hikvisions DarkFighter; both aim to produce better low-light colour. Choice often comes down to local support, integration needs and analytics capabilities.
• Axis traditionally emphasizes robust ONVIF support and open integrations; Hikvision offers strong analytics like AcuSense at aggressive price points. Integrators should weigh vendor ecosystem, VMS compatibility and firmware update policies when choosing between brands.

Conclusion: Why choose the DS-2CD2346G2H-IU?

The Hikvision DS-2CD2346G2H-IU balances image quality, intelligent analytics and practical deployment features in a compact turret form. Key reasons to choose this camera include:

• Superior low-light colour:DarkFighter technology maintains useful colour at very low illumination levels, improving identification and evidence quality after dark.
• Reduced nuisance alarms:AcuSense human/vehicle classification focuses attention on relevant events, reducing review time and alert fatigue.
• Flexible installation:PoE and 12 VDC options, on-board storage and broad protocol support make the camera adaptable to many systems and site conditions.
• Strong feature set at a competitive price:H.265+/H.265 compression, WDR, IR to 30 m and built-in audio on the U variant deliver functionality typically sought in small-to-medium commercial and advanced residential projects.

For installers and buyers seeking a cost-effective camera that improves night-time colour fidelity, reduces false alarms and integrates with common NVR/VMS platforms, the DS-2CD2346G2H-IU is a compelling choice. As always, review the official datasheet for region-specific certifications, and test camera placement and settings (exposure, WDR, AcuSense sensitivity) during commissioning to achieve optimal results for your site.
