Axis Communications 01561-001 digital microphone, 5m

Free Delivery
£ 151 87
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

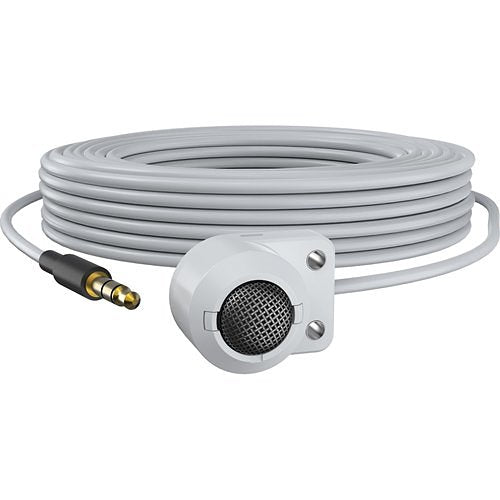

Axis Communications 01561-001 is a digital microphone from the T83 range.

AXIS T8355 Digital Microphone is a high-performance, discreet microphone specially designed for best surveillance in large areas. First microphone with an S/PDIF output carrying digital audio signals between the microphone and network product. Thanks to the digital format with lossless transfer of audio signals, electromagnetic immunity is achieved making it ideal for situations where up to 100 m (328 ft) long cables are required.

This hemispherical microphone collects sound from every direction, and the quality of the recording is vastly superior to that of the network product’s internal microphone. Powered by the network product, no external supply needed.

Key features

  • Professional audio surveillance
  • High resistance to electromagnetic interference
  • Supervised input
  • Discreet and compact
  • Flexible installation possibilities

If you are matching this to an existing installation, work from the 01561-001 part number rather than the description.

£ 151 87
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£151.87 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Axis Communications
Manufacturer Part Number
01561-001
Product Series
T83
Product Type
Audio and I/O; Microphones
Audio
Maximum Frequency Response
20kHz
Minimum Frequency Response
20Hz
Certifications
CE marking
Yes
Microphone
Microphone Technology
Condenser (Electret)
Microphone Type
Condenser
Miscellaneous
Environmental certification
IEC/EN 60529 IP65
Physical characteristics
Cable Length
5.00m
Colour
White
Height
20.00mm
Width
20.00mm
Product information
Length
27.00mm
Technical information
Connectivity Technology
Wired
Host Interface
Mini-phone
Polar Pattern
Hemispherical
Sensitivity
-30dB
Sound Mode
Stereo
Attributes
Package Contents
Cable Gasket M16 3 mm; Terminal Block to 3.5 mm; Audio Extender , T8355 Digital Microphone; Installation Guide; Drill Template; White Cover; Mount Bracket; Doublesided tape 20x10 mm; Cable Holders; Cable Gasket; M20 3 mm

Specifications

Brand Name Axis Communications
Manufacturer Part Number 01561-001
Product Series T83
Product Type Audio and I/O; Microphones

Audio

Maximum Frequency Response 20kHz
Minimum Frequency Response 20Hz

Certifications

CE marking Yes

Microphone

Microphone Technology Condenser (Electret)
Microphone Type Condenser

Miscellaneous

Environmental certification IEC/EN 60529 IP65

Physical characteristics

Cable Length 5.00m
Colour White
Height 20.00mm
Width 20.00mm

Product information

Length 27.00mm

Technical information

Connectivity Technology Wired
Host Interface Mini-phone
Polar Pattern Hemispherical
Sensitivity -30dB
Sound Mode Stereo

Attributes

Package Contents Cable Gasket M16 3 mm; Terminal Block to 3.5 mm; Audio Extender , T8355 Digital Microphone; Installation Guide; Drill Template; White Cover; Mount Bracket; Doublesided tape 20x10 mm; Cable Holders; Cable Gasket; M20 3 mm

Axis Communications 01561-001 digital microphone

Axis Communications 01561-001 digital microphone, 5m

Who this is for

For the installer — this is the digital microphone supplied under Axis Communications part number 01561-001. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a digital microphone made by Axis Communications. The part number 01561-001 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this digital microphone is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact digital microphone I have been quoted? Check the manufacturer part number 01561-001 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 01561-001 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Axis Communications 01561-001 digital microphone
Axis Communications

Axis Communications 01561-001 digital microphone, 5m

£151.87

Please note: this is a non-returnable item (excluding faulty goods)

Axis Communications 01561-001 is a digital microphone from the T83 range.

AXIS T8355 Digital Microphone is a high-performance, discreet microphone specially designed for best surveillance in large areas. First microphone with an S/PDIF output carrying digital audio signals between the microphone and network product. Thanks to the digital format with lossless transfer of audio signals, electromagnetic immunity is achieved making it ideal for situations where up to 100 m (328 ft) long cables are required.

This hemispherical microphone collects sound from every direction, and the quality of the recording is vastly superior to that of the network product’s internal microphone. Powered by the network product, no external supply needed.

Key features

If you are matching this to an existing installation, work from the 01561-001 part number rather than the description.
