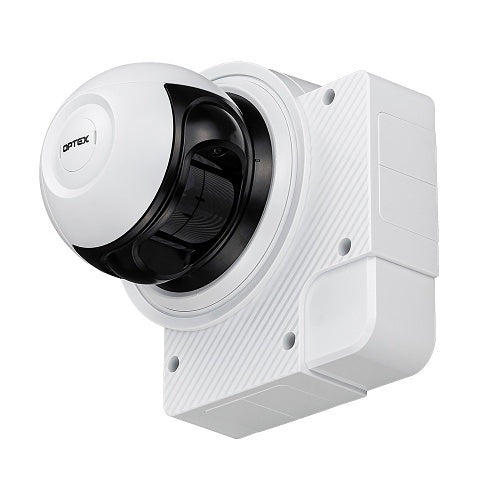

Optex RLS-2020A outdoor laser detector, Ceiling, Pole, Wall Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Optex RLS-2020A is an outdoor laser detector from the REDSCAN Mini range.
The REDSCAN mini-Pro RLS-2020A creates virtual detection walls or planes across 20x20 meters at 95 degrees and analyses a moving object's size, location and distance to determine an intrusion. Designed to work effectively in both outdoor and indoor environments, it is ideal to protect high-value assets and high-security buildings and perimeters.
Key features
- Analytics recognising moving object’s size, location and distance from the unit
- Short-range 20x20m, customisable vertical or horizontal detection
- up to 8 detection zones with configurable sensitivity, target size and output
If you are matching this to an existing installation, work from the RLS-2020A part number rather than the description.
-
Download
- RLS-2020A — Product Manual
Specifications
Technical information
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Optex |
|---|---|
| Manufacturer Part Number | RLS-2020A |
| Product Series | REDSCAN Mini |
| Product Type | Perimeter Detector |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Power Consumption | 10.0000W |
Physical characteristics
| Depth | 163.50mm |
|---|---|
| Height | 202.60mm |
| Width | 206.70mm |
Power description
| Input Current | 420mA |
|---|---|
| Input Voltage | 19.2-30V DC |
| Power Source | PoE (Power over Ethernet) |
Product information
| Mount Type | Ceiling Mount, Pole Mount, Wall Mount |
|---|
Miscellaneous
| Compatibility | ONVIF compliant software/devices |
|---|
Attributes
| Compatibility | ONVIF compliant software/devices |
|---|---|
| Input Voltage | 19.2-30V DC |
| Power Source | PoE (Power over Ethernet) |
| Input Current | 420mA |
