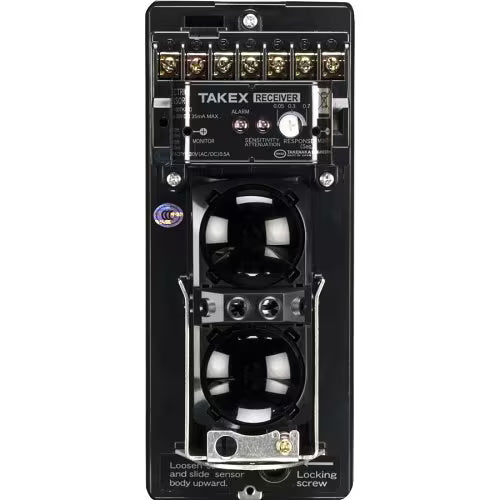

Takex PB-60TK Twin Beam Photoelectric Beam Sensor, 60m Detection Distance
About this product
The Takex PB-60TK is a twin beam photoelectric beam sensor for intrusion detection, with a detection distance of 60m / 200ft. Part of the Takex PB-TK series, it is designed for protecting windows, doors, fence lines, entrances and driveways.
Key features
- 2 x synchronised high power beams
- Detection distance of 60m / 200ft
- Alarm on simultaneous breaking of 2 beams
- LED pulsed beam with double modulation
- Auto-gain control (AGC)
- 50,000 lux sunlight immunity
- Response time 50msec. to 700msec., variable at pot
- Frost proof cover and monitor jack output
Frequently asked questions
What range does the Takex PB-60TK cover?
The detection distance is 60m / 200ft, with a protection distance of 200ft. (60m) outdoors and 400ft. (120m) indoors.
What power does the PB-60TK need?
It runs from 10 - 30VDC (non-polarity), with a current consumption of 80mA or less.
How does the PB-60TK avoid false alarms from birds and leaves?
An alarm needs simultaneous breaking of 2 beams, and the synchronised twin beams reduce false alarms caused by flying birds and falling leaves.
Will strong sunlight affect the PB-60TK?
It has 50,000 lux sunlight immunity, double modulation for light immunity and auto-gain control (AGC), with tolerance against sun light and automobile head light.
Do the transmitter and receiver have to face each other?
No. The optical system allows for side aiming, so the units do not have to be mounted face to face.
What mounting accessories does Takex make for the PB-TK series?
BP-60A pole mounting brackets (pair), the BP-60TE optional rear cover (pair), KP-100 1m and KP-150 1.5m floor standing galvanised steel poles (pair), and the PBH 12/24VDC heater kit (pair).
Specifications
Specifications
| Brand | Takex |
|---|---|
| Model | PB-60TK |
| Manufacturer Part Number (MPN) | PB-60TK |
| Type | Twin Beam |
| Detection distance | 60m / 200ft |
| Protection distance | Outdoor 200ft. (60m), Indoor 400ft. (120m) |
| Frequency selection | Single Channel |
| Detection system | Simultaneous breaking, of 2 beams |
| Infrared beam | LED pulsed beam, Double modulation |
| Sunlight immunity | 50,000 lux |
| Response time | 50msec. to 700msec. (variable at pot) |
| Supply voltage | 10 - 30VDC (non-polarity) |
| Current consumption | 80mA |
| Alarm output | Dry contact relay output form C, 30V AC/DC, 0.5A or less |
| Tamper output | Dry contact relay N/C, activated when cover is detached |
| Alarm LED | Red LED (Receiver), ON when an alarm is initiated |
| Functions | Monitor jack output, AGC circuit, Frost proof cover |
| Mounting positions | Indoor / Outdoor |
| Wiring | Terminals |
| Weight | Transmitter : 13.3oz(380g) Receiver : 14oz(400g) |
