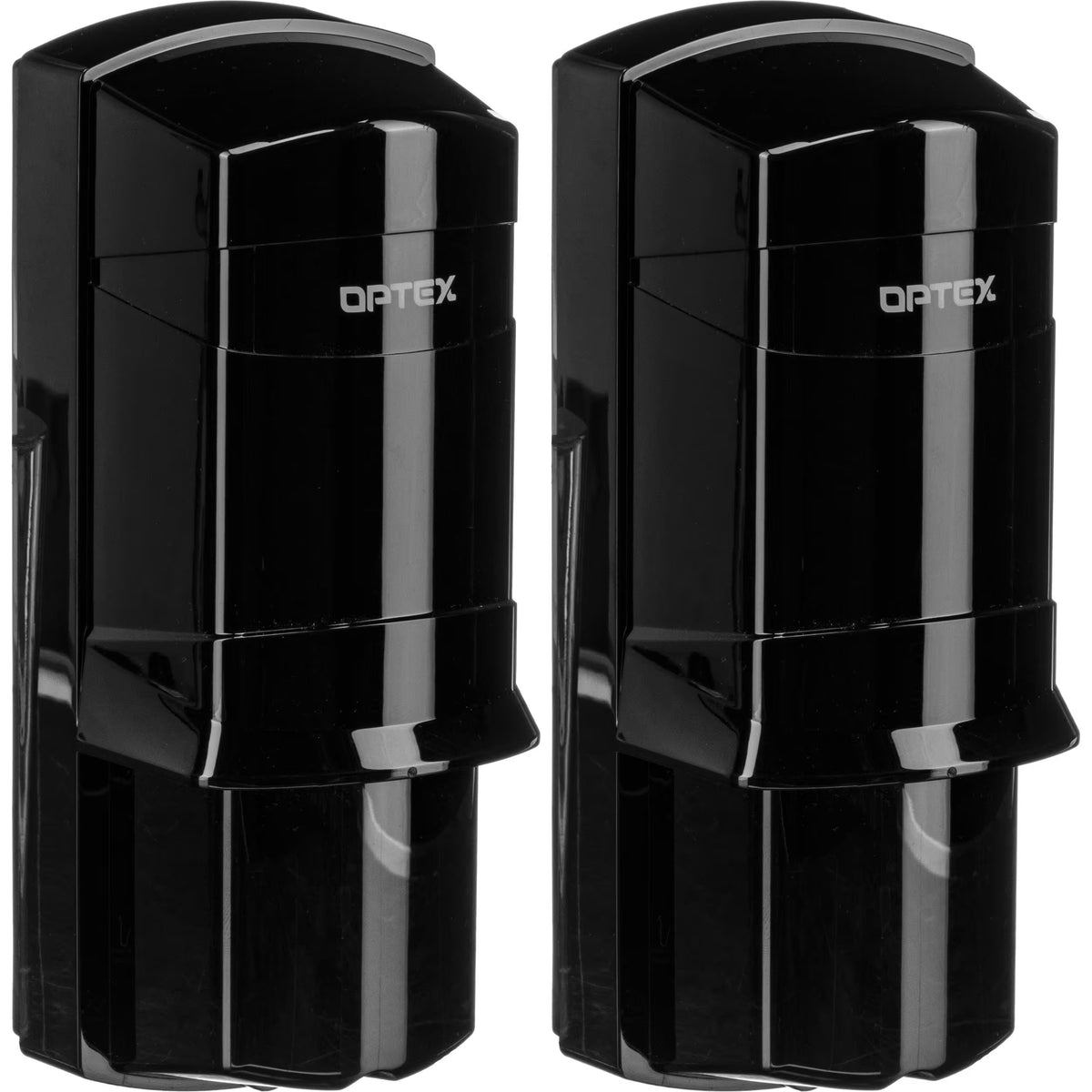

Optex AX-200TN(BE) Short Range Photoelectric Detector, 60m (200ft.) Max. Detection Range, IP65
£
97
98
(Incl. VAT)
RRP: £117.58
About this product
The Optex AX-200TN(BE) is a short range photoelectric detector using infrared beam interruption detection, with a maximum detection range of 60m (200ft.). It is designed to detect an intruder and activate an alarm control panel, and has IP65 housing protection for wall and pole mounting.
Key features
- Infrared beam interruption detection
- Maximum detection range of 60m (200ft.)
- IP65 structure with high sealing rubber packing
- Lightning protection: stable against over 14kV of lightning surge
- Interruption period selectable between 50, 100, 250, and 500m sec.
- Alignment angle ± 90° horizontal, ± 5° vertical
- Power supply 10.5 - 28V DC
- Operating temperature -35°C to +60°C (-31°F to +140°F)
Frequently asked questions
What is the maximum detection range of the AX-200TN(BE)?
The maximum detection range is 60m (200ft.).
What power supply does it need?
It runs on 10.5 - 28V DC.
How cold can it operate?
Operating temperature is -35°C to +60°C (-31°F to +140°F); in conditions of -25°C (-13°F) or below, use the optional HU-3 heating unit.
How is it mounted?
It supports wall and pole mounting.
What is its ingress protection rating?
The housing protection is IP65.
Can the beam interruption period be adjusted?
Yes. It is selectable between 50, 100, 250, and 500m sec.
£
97
98
RRP: £117.58
Save £19.60
Price
Technical Details
Specifications
Brand
Optex
Model
AX-200TN(BE)
Manufacturer Part Number (MPN)
AX-200TN(BE)
Detection method
Infrared beam interruption detection
Maximum detection range
60m (200ft.)
Interruption period
Selectable between 50, 100, 250, and 500m sec.
Power supply
10.5 - 28V DC
Alarm period
2sec. (±1) nominal
Tamper switch
Opens when cover is removed at 28V DC, 0.2A max.
Operating temperature
-35°C to +60°C (-31°F to +140°F)
Operating humidity
95% max.
Alignment angle
± 90° Horizontal, ± 5° Vertical
Mounting
Wall and pole mounting
Housing protection
IP65
Specifications
| Brand | Optex |
|---|---|
| Model | AX-200TN(BE) |
| Manufacturer Part Number (MPN) | AX-200TN(BE) |
| Detection method | Infrared beam interruption detection |
| Maximum detection range | 60m (200ft.) |
| Interruption period | Selectable between 50, 100, 250, and 500m sec. |
| Power supply | 10.5 - 28V DC |
| Alarm period | 2sec. (±1) nominal |
| Tamper switch | Opens when cover is removed at 28V DC, 0.2A max. |
| Operating temperature | -35°C to +60°C (-31°F to +140°F) |
| Operating humidity | 95% max. |
| Alignment angle | ± 90° Horizontal, ± 5° Vertical |
| Mounting | Wall and pole mounting |
| Housing protection | IP65 |
