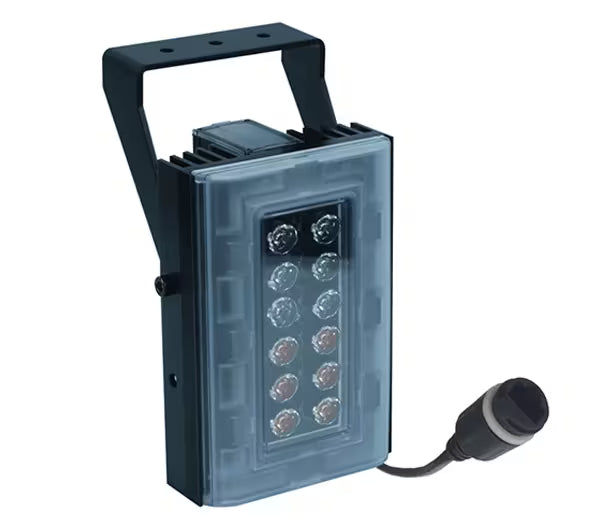

GJD HL-8CW-IP Hybrid Large IP IR/WL LED Illuminator, 850nm, Up to 187m IR
About this product
The GJD HL-8CW-IP is a hybrid large IP IR/WL LED illuminator that combines 850nm infrared and white light illumination, giving IP cameras dedicated lighting via PoE with distances up to 187m (614′) on IR and 114m (374′) on white light.
Key features
- Combined 850nm infrared and white light illumination
- Distances up to 187m (614′) IR and 114m (374′) white light
- Interchangeable lensing for 10° circular, 30°, 60 & 95° elliptical beam profiles
- Integrated web browser interface, no software or installation needed
- Direct integration with VMS system
- Built-in photocell on/off and vibration/shock sensor
- IP66 weatherproof rating and IK09
- CleanLITE self-cleaning lens coating technology
Frequently asked questions
What does the GJD HL-8CW-IP illuminate with?
It combines infrared and white light illumination: 850nm IR (semi covert, faint red glow only) and white light with a lumen output of 1856lm at ≈6000K.
How far does it reach?
Distances up to 187m (614′) with IR and 114m (374′) with white light.
How is it set up and controlled?
It has an integrated web browser interface, so no software or installation is needed. The photocell, vibration/knock sensor sensitivity and illumination level (10% - 100% with pulse modes) are software adjustable.
Does it work with a VMS?
Yes. It has direct integration with VMS system.
What is the difference between the HL-8CW-IP and the HL-9CW-IP?
The HL-8CW-IP is the 850nm version and the HL-9CW-IP is the 940nm version.
Specifications
Specifications
| Brand | GJD |
|---|---|
| Model | HL-8CW-IP |
| Manufacturer Part Number (MPN) | HL-8CW-IP |
| IR Wavelength | 850nm (Semi covert). Faint red glow only |
| Distance | Up to 187m (614′) (IR) and 114m (374′) (WL) |
| Beam profiles | 10° circular, 30°, 60 & 95° elliptical |
| White-Light | Lumen output: 1856lm; Colour temperature: Ultra white ≈6000K; CRI: >70 |
| Consumption | 25W |
| Power Cable | 1m with IP68 connector |
| Interface Connector | Photocell Following Contact & Remote Telemetry Input |
| User Interface | Web browser user interface. No software or installation needed |
| Photocell | Software adjustable |
| Vibration/Knock Sensor | Software adjustable sensitivity |
| Illumination | Software adjustable 10% - 100% with pulse modes |
| Operating Temperature | -50° to 60°C (-58° to 140°F) |
| Weight | 1.35Kg (3lbs) |
| Dimensions | 161 x 110 x 78mm (6.34” x 4.33” x 3.07”) |
| Mount | Powder coated stainless steel wall mount |
| Finish | Black anodised |
| Front Window | Polycarbonate high transmission protective (vandal proof) ir filter with CleanLITE® technology |
| Pressure Equalisation Vent | Prevents thermal expansion & pressure cycling |
| Environmental | IEC/EN 60529 IP66; IEC/EN 62262 IK09 |
| Colour | Black |
