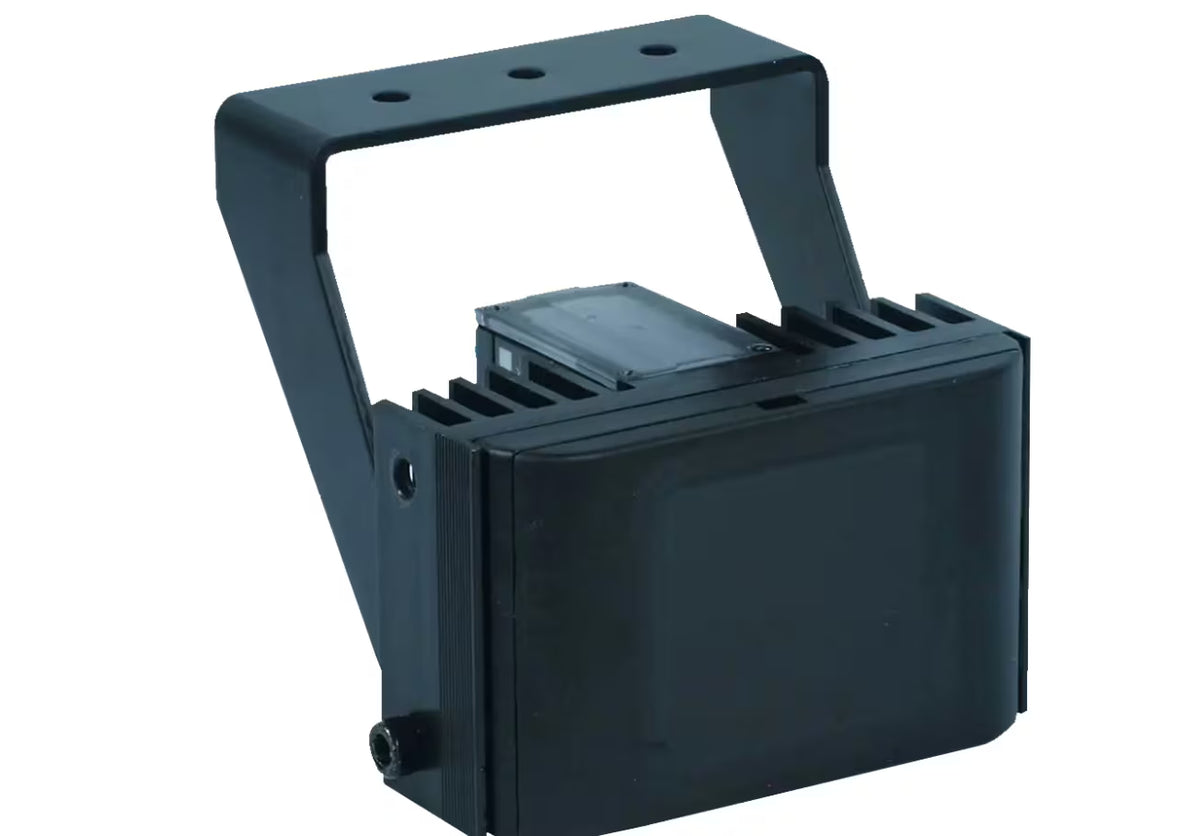

GJD IS-9-P Small PoE Infra-Red Illuminator, 940nm, PoE
About this product
The GJD IS-9-P is a small PoE infra-red illuminator from the Clarius range, giving dedicated 940nm infra-red lighting for IP cameras, powered via PoE (Power Over Ethernet).
Key features
- 940nm infra-red wavelength
- Dedicated lighting for IP cameras via PoE, IEEE802af compliant
- Interchangeable lensing for 10° circular, 30°, 60° and 95° elliptical beam profiles
- 62m distance with the 10º circular lens at 940nm
- IP66 weather proof rating
- Built-in photocell IR on/off with photocell following contact
- Telemetry input for camera day/night remote switching
- CleanLITE® self cleaning lens coating technology
Frequently asked questions
How is the GJD IS-9-P powered?
By Power Over Ethernet (PoE) through an IEEE802af compliant interface, power classification Class 0. Consumption is 12W.
How far does the IS-9-P illuminate?
At 940nm the distance is 62m with the 10º circular lens, 30m with the 30º elliptical lens, 18m with the 60º elliptical lens and 9m with the 95º elliptical lens.
Can the beam angle be changed?
Yes. Interchangeable lensing delivers 10° circular, 30°, 60° and 95° elliptical beam profiles.
Does it switch on automatically at night?
Yes. It has a built-in photocell IR on/off, adjustable from 20 -70 Lux, plus a photocell following contact and a telemetry input for camera day/night remote switching.
Can it be installed outdoors?
It has an IP66 weather proof rating and an operating temperature of -50° to 50ºC (-58º to 122ºF).
What is the difference between the IS-8-P and the IS-9-P?
The IS-8-P is the 850nm version and the IS-9-P is the 940nm version.
Specifications
Specifications
| Brand | GJD |
|---|---|
| Model | IS-9-P |
| Manufacturer Part Number (MPN) | IS-9-P |
| Wavelength | 940nm |
| Beam profiles | 10° circular, 30°, 60° and 95° elliptical |
| Distance (940nm, 10º circular) | 62m |
| Distance (940nm, 30º elliptical) | 30m |
| Distance (940nm, 60º elliptical) | 18m |
| Distance (940nm, 95º elliptical) | 9m |
| Electrical | Power Over Ethernet (PoE), IEEE802af Compliant interface, Power classification (Class 0) |
| Consumption | 12W |
| Power Cable | 3m (9ft) with waterproof RJ45 connector |
| Interface Connector | Photocell Following Contact & Remote Telemetry Input |
| Photocell | Adjustable 20 -70 Lux |
| Illumination | Adjustable 10% - 100% |
| Operating Temperature | -50° to 50ºC (-58º to 122ºF) |
| Weight | 750g (1.6lbs) |
| Dimensions | 68 x 110 x 78mm (2.68” x 4.33” x 3.07”) |
| Mount | Powder coated stainless steel wall mount |
| Finish | Black anodised |
| Front Window | Polycarbonate high transmission protective (vandal proof) ir filter with CleanLITE® technology |
| Pressure Equalisation Vent | Prevents thermal expansion & pressure cycling |
| IP rating | IP66 |
| Safety | EN60598:2004 Electrical safety, EN60825-1 Laser eye safety |
| IP | IP66 in accordance with EN60529;1992 |
| Colour | Black |
