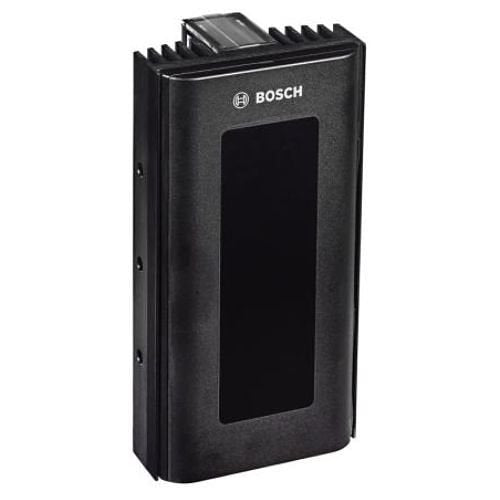

Bosch F.01U.319.320 ir illuminator, IP66

Visit CCTV Installation & Accessories
Free Delivery
£ 754 47
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Bosch F.01U.319.320 is an ir illuminator.

The infrared illuminator provides covert or semi-covert lighting for extra long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates. The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes.

The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost-effective installations.Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership.

A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photocell adjustment facilitates quick and easy installation.

Key features

  • Adjustable IR intensity
  • Integrated adjustable photocell
  • Interchangeable beam pattern diffusers to match beam to camera
  • Self-cleaning lens coating technology
  • Telemetry input and photocell output for external switching
£ 754 47
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£754.47 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.319.320
Product Type
Infrared Illuminator
General information
Application/Usage
Indoor, Outdoor, Surveillance
Packaged Quantity
1
Technical information
Alarm Type
Audible
Device Supported
Illuminator
Power Consumption
52.0000W
Certifications
CE marking
Yes
Ingress protection
IP66
Physical characteristics
Colour
Black
Depth
76.00mm
Height
213.00mm
Material
Anodized Aluminum, Polycarbonate
Weight
1.84kg
Width
110.00mm
Power description
Input Voltage
24V AC, 32V DC
Power Source
AC Power
Miscellaneous
Additional Information
Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
Compatibility
PSU-IIR-100, PSU-IIR-35, PSU-IIR-60
Environmental status
Yes
Features
Adjustable built-in photocell, Adjustable light intensity, Easy Installation, Interchangeable Lens, IP66, Self-cleaning Lens Coating, Surface Mount LED Technology
Indoor or outdoor use
Indoor, Outdoor
Package Contents
Illuminator, 940nm, Extra Range 5 x Beam pattern diffusers 1 x Installation Guide
Attributes
Compatibility
PSU-IIR-100, PSU-IIR-35, PSU-IIR-60
Device Supported
Illuminator
Input Voltage
24V AC, 32V DC
Package Contents
Illuminator, 940nm, Extra Range 5 x Beam pattern diffusers 1 x Installation Guide
Power Source
AC Power
Weight
1.84kg
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes

Specifications

Brand Name Bosch
Manufacturer Part Number F.01U.319.320
Product Type Infrared Illuminator

General information

Application/Usage Indoor, Outdoor, Surveillance
Packaged Quantity 1

Technical information

Alarm Type Audible
Device Supported Illuminator
Power Consumption 52.0000W

Certifications

CE marking Yes
Ingress protection IP66

Physical characteristics

Colour Black
Depth 76.00mm
Height 213.00mm
Material Anodized Aluminum, Polycarbonate
Weight 1.84kg
Width 110.00mm

Power description

Input Voltage 24V AC, 32V DC
Power Source AC Power

Miscellaneous

Additional Information Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
Compatibility PSU-IIR-100, PSU-IIR-35, PSU-IIR-60
Environmental status Yes
Features Adjustable built-in photocell, Adjustable light intensity, Easy Installation, Interchangeable Lens, IP66, Self-cleaning Lens Coating, Surface Mount LED Technology
Indoor or outdoor use Indoor, Outdoor
Package Contents Illuminator, 940nm, Extra Range 5 x Beam pattern diffusers 1 x Installation Guide

Attributes

Compatibility PSU-IIR-100, PSU-IIR-35, PSU-IIR-60
Device Supported Illuminator
Input Voltage 24V AC, 32V DC
Package Contents Illuminator, 940nm, Extra Range 5 x Beam pattern diffusers 1 x Installation Guide
Power Source AC Power
Weight 1.84kg

Bosch F.01U.319.320 ir illuminator

Bosch F.01U.319.320 ir illuminator, IP66

Who this is for

For the installer — this is the ir illuminator supplied under Bosch part number F.01U.319.320. Specify it by that part number.

In plain English: this is an ir illuminator made by Bosch. The part number F.01U.319.320 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this ir illuminator is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact ir illuminator I have been quoted? Check the manufacturer part number F.01U.319.320 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Bosch F.01U.319.320 ir illuminator
Bosch

Bosch F.01U.319.320 ir illuminator, IP66

£754.47

Please note: this is a non-returnable item (excluding faulty goods)

Bosch F.01U.319.320 is an ir illuminator.

The infrared illuminator provides covert or semi-covert lighting for extra long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates. The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes.

The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost-effective installations.Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership.

A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photocell adjustment facilitates quick and easy installation.

Key features
