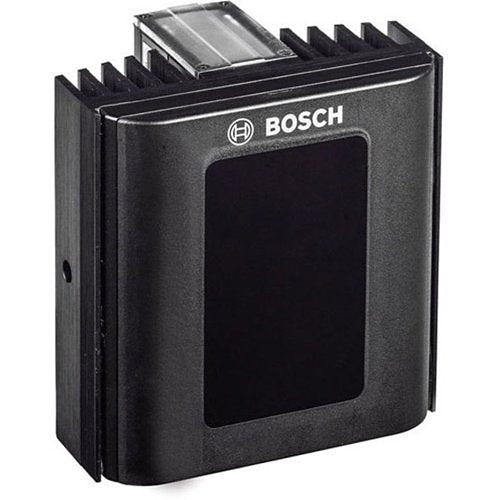

Bosch F.01U.319.315 range ir illuminator, Black

Visit CCTV Installation & Accessories
Free Delivery
£ 450 28
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Bosch F.01U.319.315 is a range ir illuminator.

The infrared illuminator provides covert or semi-covert lighting for extra long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates.The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes.The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling.

Easy access to power and photo cell adjustment facilitates quick and easy installation.

Key features

  • Adjustable IR intensity
  • Integrated adjustable photocell
  • Interchangeable beam pattern diffusers to match beam to camera
  • Self-cleaning lens coating technology
  • Telemetry input and photocell output for external switching
£ 450 28
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£450.28 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Bosch
Manufacturer Part Number
F.01U.319.315
Product Type
Illuminator
General information
Application/Usage
Indoor, Outdoor, Surveillance
Packaged Quantity
1
Technical information
Device Supported
Surveillance Camera
Power Consumption
26.0000W
Physical characteristics
Colour
Black
Depth
76.00mm
Durability
Vandal Resistant
Height
115.00mm
Material
Anodized Aluminum, Polycarbonate, Stainless Steel
Weight
1.04kg
Width
110.00mm
Power description
Input Voltage
12-32V DC
Power Source
AC Power, DC Power
Miscellaneous
Additional Information
Medium range IR illuminator
Compatibility
PSU-IIR-100 power supplies, PSU-IIR-35, PSU-IIR-60
Environmental status
Yes
Features
Adjustable built-in photocell, Adjustable light intensity, Electronic Protection, Interchangeable Lens, Night Vision, Robust, Self-cleaning Lens Coating, Surface Mount, Thermal Protection
Indoor or outdoor use
Outdoor
Package Contents
IR illuminator with bracket 5 beam pattern diffusers Installation Guide
Attributes
Compatibility
PSU-IIR-100 power supplies, PSU-IIR-35, PSU-IIR-60
Device Supported
Surveillance Camera
Input Voltage
12-32V DC
Package Contents
IR illuminator with bracket 5 beam pattern diffusers Installation Guide
Power Source
AC Power, DC Power
Weight
1.04kg
Specifications
General information
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes

Specifications

Brand Name Bosch
Manufacturer Part Number F.01U.319.315
Product Type Illuminator

General information

Application/Usage Indoor, Outdoor, Surveillance
Packaged Quantity 1

Technical information

Device Supported Surveillance Camera
Power Consumption 26.0000W

Physical characteristics

Colour Black
Depth 76.00mm
Durability Vandal Resistant
Height 115.00mm
Material Anodized Aluminum, Polycarbonate, Stainless Steel
Weight 1.04kg
Width 110.00mm

Power description

Input Voltage 12-32V DC
Power Source AC Power, DC Power

Miscellaneous

Additional Information Medium range IR illuminator
Compatibility PSU-IIR-100 power supplies, PSU-IIR-35, PSU-IIR-60
Environmental status Yes
Features Adjustable built-in photocell, Adjustable light intensity, Electronic Protection, Interchangeable Lens, Night Vision, Robust, Self-cleaning Lens Coating, Surface Mount, Thermal Protection
Indoor or outdoor use Outdoor
Package Contents IR illuminator with bracket 5 beam pattern diffusers Installation Guide

Attributes

Compatibility PSU-IIR-100 power supplies, PSU-IIR-35, PSU-IIR-60
Device Supported Surveillance Camera
Input Voltage 12-32V DC
Package Contents IR illuminator with bracket 5 beam pattern diffusers Installation Guide
Power Source AC Power, DC Power
Weight 1.04kg

Bosch F.01U.319.315 range ir illuminator

Bosch F.01U.319.315 range ir illuminator, Black

Who this is for

For the installer — this is the range ir illuminator supplied under Bosch part number F.01U.319.315. Specify it by that part number.

In plain English: this is a range ir illuminator made by Bosch. The part number F.01U.319.315 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this range ir illuminator is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact range ir illuminator I have been quoted? Check the manufacturer part number F.01U.319.315 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.
