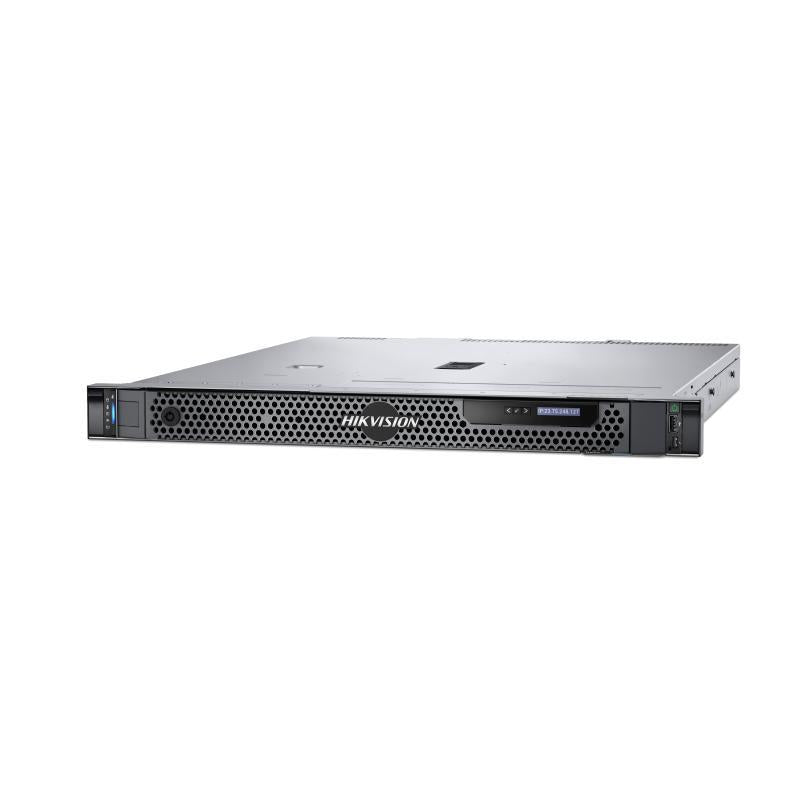

Hikvision HikCentral-P-VER/HW2D/300(E2434)(O-STD) HikCentral Rackmount VMS Server, 300ch by Default, 1U Rack
Free Delivery
Save £2,561.51
About this product
The Hikvision HikCentral-P-VER/HW2D/300(E2434)(O-STD) is a HikCentral Rackmount VMS Server that combines hardware and software, managing 300ch of video by default, expandable to 3000ch (including ANPR cameras and cameras with face capture function). It is a 1U Rack server with an E-2434 CPU and WinSvr2022 multilingual version pre-installed; no additional activation is required, and it is ready to use right out of the box.
Key features
- Video management: 300ch by default, can be expanded into 3000ch (including ANPR cameras and cameras with face capture function)
- Plug and play: no additional activation is required, ready to use right out of the box
- Pre-installed operating system: WinSvr2022 multilingual version
- E-2434 CPU (3.4 GHz-5.0 GHz, 12 MB Cache, 4 Cores, 8 Threads)
- 16GB ×1 DDR5 memory; 4 x DDR5 DIMM slots, supports UDIMM 4x32 GB MAX
- 2× 2TB 7.2K SATA Hot-plug HDD (RAID_1) in 4 x 3.5-inch SAS/SATA (HDD/SSD) slots
- Remote management via iDrac9 Enterprise
- 1U Rack form factor, 600 W power supply
Frequently asked questions
How many cameras does the HikCentral-P-VER/HW2D/300(E2434) manage?
300ch by default, and it can be expanded into 3000ch (including ANPR cameras and cameras with face capture function).
Does it need activating?
No. No additional activation is required, and it is ready to use right out of the box, with WinSvr2022 multilingual version pre-installed.
What storage is fitted?
2× 2TB 7.2K SATA Hot-plug HDD (RAID_1), in 4 x 3.5-inch SAS/SATA (HDD/SSD) slots; empty slots do not include hard drive bays by default.
Are access control and ANPR included?
No, they are not included. Access controls can be expanded into 1024 (including doors and outdoor station) and ANPR cameras into 1024ch.
What are the power and rack requirements?
It is a 1U Rack server with a 600 W, 50/60 Hz, 100-240 VAC (Auto adjustment), 7.1-3.6 A power supply.
How is it managed remotely?
Remote management is via iDrac9 Enterprise, with dedicated IDRAC Ethernet and IDRAC Direct (Micro-AB USB) ports.
Technical Details
Specifications
Brand
Hikvision
Model
HikCentral-P-VER/HW2D/300(E2434)(O-STD)
Manufacturer Part Number (MPN)
HikCentral-P-VER/HW2D/300(E2434)(O-STD)
Video Management
300ch by default, can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)
Access Controls
Not included; can be expanded into 1024 (Including Doors and Outdoor Station)
Indoor Station
Not included; can be expanded into 5000
ANPR Cameras
Not included; can be expanded into 1024ch
Lanes Of Entrance & Exit
Not included, can be expanded into 40
Cameras With Face Capture Function
Not included; can be expanded into 3000ch
Alarm Panel
Not included; can be expanded into 1024
Smart Walls
Not included; can be expanded into: Smart Walls: 32; Decoding devices: 32
Attendance
Not included, can be expanded by extra license
CPU
E-2434 (3.4 GHz-5.0 GHz, 12 MB Cache, 4 Cores, 8 Threads)
Memory
16GB ×1 (Support single 16GB/32GB DDR5 UDIMM, ECC; Slots: 4 x DDR5 DIMM slots, supports UDIMM 4x32 GB MAX)
Hard Disks
2× 2TB 7.2K SATA Hot-plug HDD (RAID_1)
Drive Slots
4 x 3.5-inch SAS/SATA (HDD/SSD) slots (Empty slots do not include hard drive bays by default)
Storage Controller
S160 with OS software Raid (support RAID 0/1)
Supported Operating Systems
WinSvr2022 multilingual version pre-installed
PCIe Slots
Up to 2 PCIe Gen4 slots on the Gen4 Riser: Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile; Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
Remote Manage
iDrac9 Enterprise
Security
Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)
USB 3.0
0 (Front) + 1 (Rear)
USB 2.0
1 (Front) + 1 (Rear)
Ethernet Port
2 x LAN 10/100/1000
VGA
1
IDRAC Direct (Micro-AB USB) Port
1
IDRAC Ethernet Port
1
Manager Port
1
Net Weight
13.23 kg (29.17 lb)
Gross Weight
25.0 kg (55.11 lb)
Dimension (W × H × D)
42.8 mm × 482.00 mm × 598.9 mm (1.68'' × 18.97'' × 23.57'')
Package Dimensions (W × H × D)
595.00 mm × 251.00 mm × 923.00 mm
Operating Temperature
10 °C to 35 °C (50 °F to 95 °F)
Storage Temperature
-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity
8% to 80% (no condensation)
Storage Humidity
5% to 95% (no condensation)
Power Supply
600 W, 50/60 Hz, 100-240 VAC (Auto adjustment), 7.1-3.6 A
Form Factor
1U Rack
Specifications
| Brand | Hikvision |
|---|---|
| Model | HikCentral-P-VER/HW2D/300(E2434)(O-STD) |
| Manufacturer Part Number (MPN) | HikCentral-P-VER/HW2D/300(E2434)(O-STD) |
| Video Management | 300ch by default, can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function) |
| Access Controls | Not included; can be expanded into 1024 (Including Doors and Outdoor Station) |
| Indoor Station | Not included; can be expanded into 5000 |
| ANPR Cameras | Not included; can be expanded into 1024ch |
| Lanes Of Entrance & Exit | Not included, can be expanded into 40 |
| Cameras With Face Capture Function | Not included; can be expanded into 3000ch |
| Alarm Panel | Not included; can be expanded into 1024 |
| Smart Walls | Not included; can be expanded into: Smart Walls: 32; Decoding devices: 32 |
| Attendance | Not included, can be expanded by extra license |
| CPU | E-2434 (3.4 GHz-5.0 GHz, 12 MB Cache, 4 Cores, 8 Threads) |
| Memory | 16GB ×1 (Support single 16GB/32GB DDR5 UDIMM, ECC; Slots: 4 x DDR5 DIMM slots, supports UDIMM 4x32 GB MAX) |
| Hard Disks | 2× 2TB 7.2K SATA Hot-plug HDD (RAID_1) |
| Drive Slots | 4 x 3.5-inch SAS/SATA (HDD/SSD) slots (Empty slots do not include hard drive bays by default) |
| Storage Controller | S160 with OS software Raid (support RAID 0/1) |
| Supported Operating Systems | WinSvr2022 multilingual version pre-installed |
| PCIe Slots | Up to 2 PCIe Gen4 slots on the Gen4 Riser: Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile; Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile |
| Remote Manage | iDrac9 Enterprise |
| Security | Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter) |
| USB 3.0 | 0 (Front) + 1 (Rear) |
| USB 2.0 | 1 (Front) + 1 (Rear) |
| Ethernet Port | 2 x LAN 10/100/1000 |
| VGA | 1 |
| IDRAC Direct (Micro-AB USB) Port | 1 |
| IDRAC Ethernet Port | 1 |
| Manager Port | 1 |
| Net Weight | 13.23 kg (29.17 lb) |
| Gross Weight | 25.0 kg (55.11 lb) |
| Dimension (W × H × D) | 42.8 mm × 482.00 mm × 598.9 mm (1.68'' × 18.97'' × 23.57'') |
| Package Dimensions (W × H × D) | 595.00 mm × 251.00 mm × 923.00 mm |
| Operating Temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Operating Humidity | 8% to 80% (no condensation) |
| Storage Humidity | 5% to 95% (no condensation) |
| Power Supply | 600 W, 50/60 Hz, 100-240 VAC (Auto adjustment), 7.1-3.6 A |
| Form Factor | 1U Rack |
