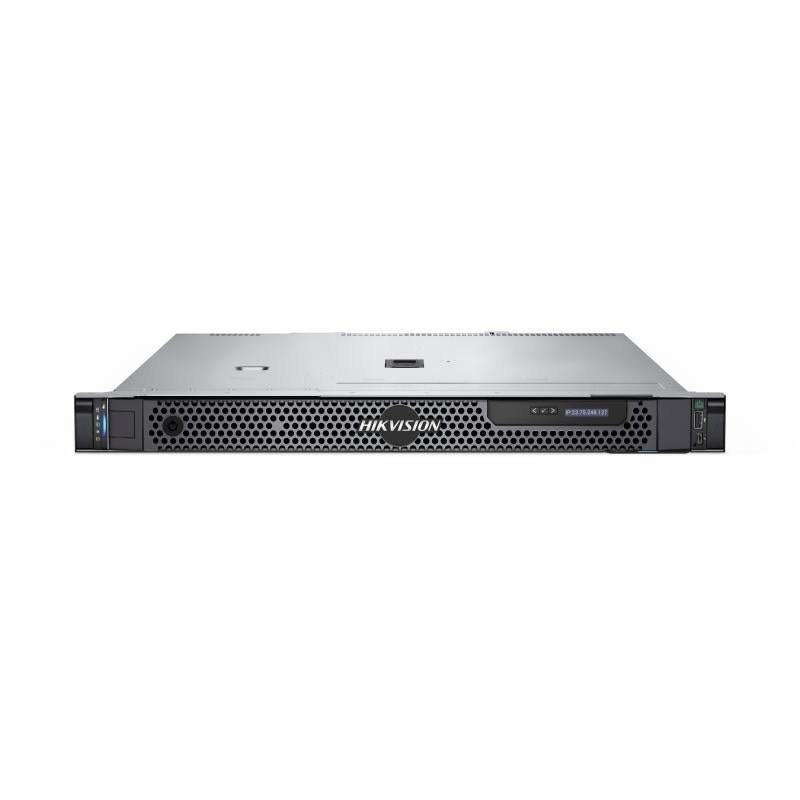

Hikvision DS-VE11-R/HW3E(E2434/6325P) Single-socket Rackmount Server, 1U Rack, 16GB DDR5
About this product
The Hikvision DS-VE11-R/HW3E(E2434/6325P) is a single-socket 1U rackmount server, purpose-built for growing scale-out solutions. It comes with 16GB DDR5 memory, 960G SATA SSD×2 (RAID_1) plus 2T 7.2K SATA×2 (RAID_1) storage and Winserver 2022 multilingual version pre-installed, with iDrac9 Enterprise for full remote control and management.
Key features
- CPU: E-2434 (3.4 GHz-5.0 GHz, 12 MB Cache, 4 Cores, 8 Threads) / 6325P (3.5 GHz-5.2 GHz, 12 MB Cache, 4 Cores, 8 Threads)
- 16GB DDR5×1, with 4 x DDR5 DIMM slots supporting UDIMM 4 x 32 GB MAX (ECC)
- 960G SATA SSD×2 (RAID_1) + 2T 7.2K SATA×2 (RAID_1) in 4 x 3.5-inch SAS/SATA (HDD/SSD) slots
- Winserver 2022 multilingual version pre-installed
- Remote management with iDrac9 Enterprise, 1:1 or 1:Many
- Up to 2 PCIe Gen4 slots on the Gen4 Riser
- 2× LAN10/100/1000 Ethernet ports plus a dedicated IDRAC Ethernet port
- Security includes Secure Boot, Silicon Root of Trust and TPM 2.0
Frequently asked questions
What storage comes in the DS-VE11-R/HW3E(E2434/6325P)?
960G SATA SSD×2 (RAID_1) + 2T 7.2K SATA×2 (RAID_1). It has 4 x 3.5-inch SAS/SATA (HDD/SSD) slots and supports HDD 4 x 22TB max; empty slots do not include hard drive bays by default.
How much memory does it have and how far can it be expanded?
It has 16GB DDR5×1, supports single 16GB/32GB DDR5 UDIMM (ECC), and has 4 x DDR5 DIMM slots supporting UDIMM 4 x 32 GB MAX.
Which operating system is installed?
Winserver 2022 multilingual version is pre-installed.
How is the server managed remotely?
Through iDrac9 Enterprise, with 1:1 or 1:Many management models and full remote control and management functions. It has a dedicated IDRAC Ethernet Port and an IDRAC Direct (Micro-AB USB) Port.
What power supply does it use?
A 600 W power supply, 50/60 Hz, 100-240 VAC (auto adjustment), 7.1-3.6 A.
How big is the server?
It is a 1U rack server measuring 482.0 mm × 42.8 mm × 598.9 mm (W × H × D), with a net weight of 13.23 kg (29.17 lb).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-VE11-R/HW3E(E2434/6325P) |
| Manufacturer Part Number (MPN) | DS-VE11-R/HW3E(E2434/6325P) |
| CPU | E-2434 (3.4 GHz-5.0 GHz, 12 MB Cache, 4 Cores, 8 Threads) / 6325P (3.5 GHz-5.2 GHz, 12 MB Cache, 4 Cores, 8 Threads) |
| Memory | 16GB DDR5×1; supports single 16GB/32GB DDR5 UDIMM, ECC; 4 x DDR5 DIMM slots, supports UDIMM 4 x 32 GB MAX |
| Hard Disks | 960G SATA SSD×2(RAID_1) + 2T 7.2K SATA×2(RAID_1); 4 x 3.5-inch SAS/SATA (HDD/SSD) slots; supports HDD 4 x 22TB max (empty slots do not include hard drive bays by default) |
| Storage Controller | S160 Chipset with OS software Raid (support RAID 0/1) |
| Supported Operating Systems | Winserver 2022 multilingual version pre-installed |
| PCIe Slots | Up to 2 PCIe Gen4 slots on the Gen4 Riser |
| Remote Manage | iDrac9 Enterprise |
| Security | Cryptographically signed firmware; Data at Rest Encryption (SEDs with local or external key mgmt); Secure Boot; Secured Component Verification (Hardware integrity check); Secure Erase; Secured-core server; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter); TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| USB 3.0 | 0 (Front) + 1 (Rear) |
| USB 2.0 | 1 (Front) + 1 (Rear) |
| Ethernet Port | 2× LAN10/100/1000 |
| VGA | 1 |
| IDRAC Direct (Micro-AB USB) Port | 1 |
| IDRAC Ethernet Port | 1 |
| Power Supply | 600 W, 50/60 Hz, 100-240 VAC (Auto adjustment), 7.1-3.6 A |
| Form Factor | 1U Rack |
| Dimension (W × H × D) | 482.0 mm × 42.8 mm × 598.9 mm (18.97'' × 1.68'' × 23.57'') |
| Net Weight | 13.23 kg (29.17 lb) |
| Operating Temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Operating Humidity | 8% to 80% (no condensation) |
