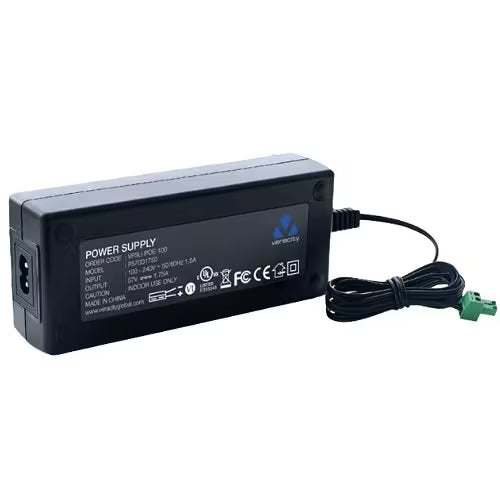

Veracity VPSU-POE-100 100W PoE Power Supply, 57V DC, 1.75A Output
About this product
The Veracity VPSU-POE-100 is a 100W PoE power supply with a 57V DC, 1.75A output, for PoE transmission adaptors. It is designed to power Veracity's HIGHWIRE, LONGSPAN and CAMSWITCH IP transmission products, which in turn deliver PoE to IP cameras and other PoE devices.
Key features
- 57V DC output at 1.75A (100W)
- Input voltage 100-240V AC, 50/60Hz
- Short-circuit, overload and overvoltage protection with auto-reset on all fault conditions
- Compact, fanless design
- Operating temperature -20°C to +40°C
- Efficiency >89%
- C8 input connector, with a country specific power cable included
- 1 metre flying lead output, ends stripped and tinned
Frequently asked questions
What does the Veracity VPSU-POE-100 power?
It is designed to power Veracity's HIGHWIRE, LONGSPAN and CAMSWITCH IP transmission products, which in turn deliver PoE to IP cameras and other PoE devices.
What output does the VPSU-POE-100 give?
57V DC with a maximum output current of 1.75A, which is 100W.
Does the VPSU-POE-100 come with a mains cable?
Yes, it includes a country specific power cable, and the input is a C8 input connector.
How is the VPSU-POE-100 output connected?
By a 1 metre flying lead with the ends stripped and tinned.
What protection does the VPSU-POE-100 have?
Short-circuit, overload and overvoltage protection with auto-reset on all fault conditions, and a fused input.
What temperature range does the VPSU-POE-100 work in?
Operating temperature is -20°C to +40°C.
Specifications
Specifications
| Brand | Veracity |
|---|---|
| Model | VPSU-POE-100 |
| Manufacturer Part Number (MPN) | VPSU-POE-100 |
| Output power | 100W |
| Normal output voltage | 57V DC with overvoltage protection & auto-reset |
| Maximum output current | 1.75A with overcurrent protection & auto-reset |
| Output protection | Short circuit protection with auto-reset once short removed |
| Input voltage | 100-240V AC, 50/60Hz |
| Maximum input current | 1.5A |
| Input protection | Fused |
| Input connector | C8 input connector |
| Output cable | Flying lead, 1 metre, [39.3in] ends stripped and tinned |
| Efficiency | >89% |
| Noise & ripple | <300mV |
| Cooling | Fanless |
| Case dimensions | L 150mm x W 65mm x H 35.5mm [5.9in x 2.5in x 1.4in] |
| Weight | 300g [10.6oz] |
| Operating temperature | -20°C to +40°C [-4°F to +104°F] |
| Storage temperature | -30°C to +70°C [-22°F to +158°F] |
| Operating humidity | 10% to 90% relative humidity, non-condensing |
| Storage humidity | 5% to 90% relative humidity, non-condensing |
| Safety & compliance | CE EN55032, FCC Class B, UL, EN60065/EN60950 |
| MTBF | 50,000 hrs |
