Veracity Extender

Veracity extenders take Ethernet, and often PoE, beyond the 100 m limit of a normal cable run, so IP cameras and other network devices can sit further from the switch. The range covers OUTREACH inline repeaters that turn a 100 m run into 200 m, LONGSPAN point-to-point links over Cat5e or Cat6, and HIGHWIRE units that carry Ethernet and PoE over existing coax when analogue cameras are upgraded to IP.

Choosing Veracity Extender

Work out the distance, the cable already in place and whether the far device needs power, then pick the family.

OUTREACH: double a standard run

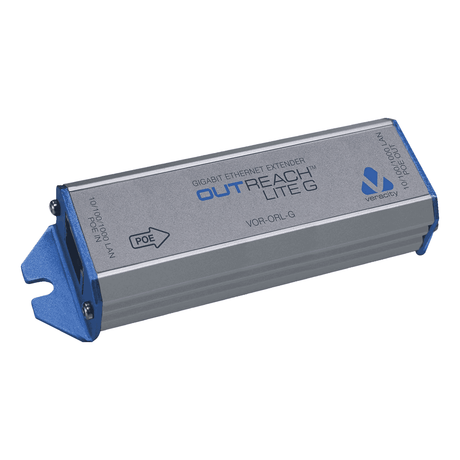

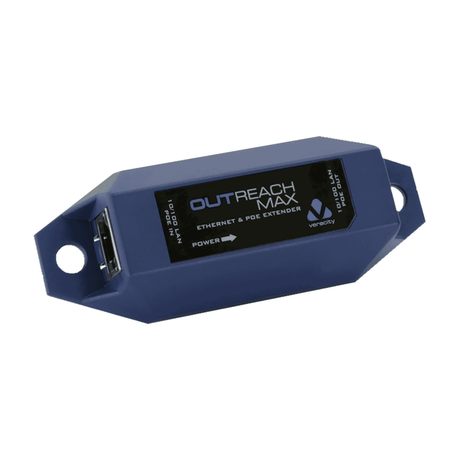

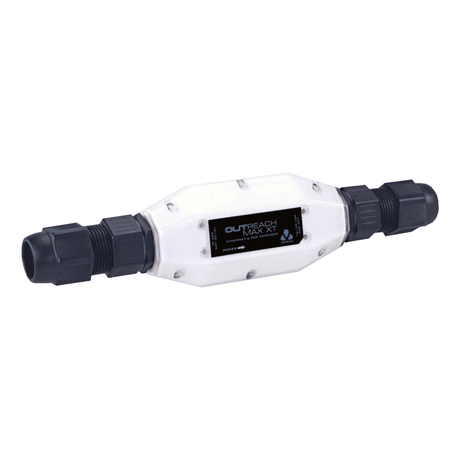

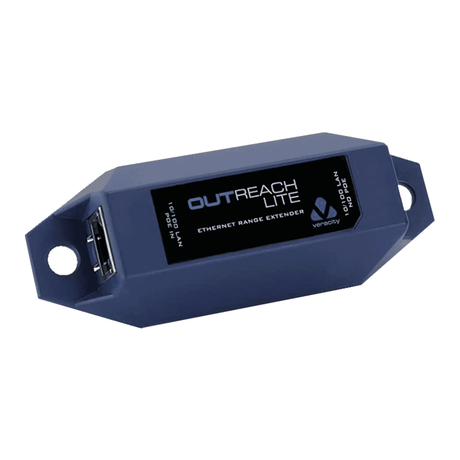

An OUTREACH unit sits in line with the cable and restores the link, turning a 100 m segment into 200 m without local power, as it draws PoE from the switch. Lite models are powered by PoE but do not forward it: the VOR-ORL handles 10/100 links and the VOR-ORL-G full Gigabit. Max models forward PoE to the far device, the VOR-ORM supporting 802.3af, 802.3at and 802.3bt, and several can be daisy-chained every 100 m for longer runs. The VOR-ORM-XT and VOR-ORL-GXT sit in IP66/67, NEMA 4X/6P enclosures for outdoor use.

LONGSPAN: long point-to-point links

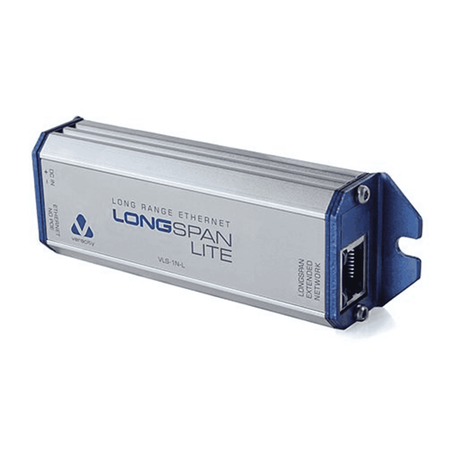

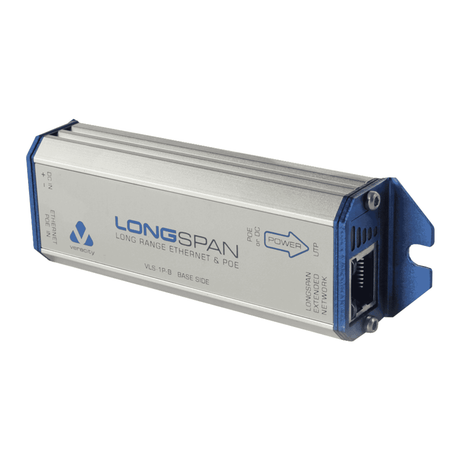

LONGSPAN units work as a pair over Cat5e or Cat6, and even single-pair UTP, and negotiate 10Base-T for the longest distances. The VLS-LSM-B gives full 100Base-TX at 820 metres on Cat 6, or 690 metres on Cat 5e, with 90W PoE capability (802.3bt). The VLS-1P-B base provides Ethernet and PoE/PoE+ to a camera-end unit, with SAFEVIEW LEDs for fault-finding at either end, while the VLS-1N-L Lite is data-only for locally powered devices.

HIGHWIRE: Ethernet over existing coax

HIGHWIRE reuses the coax from an analogue system to carry Ethernet and PoE to IP cameras. The VHW-HWPS-B8 base integrates eight channels and a gigabit switch, reaching 300m on RG59, 400m on RG6 and 500m on RG11, and four fit in 1U of rack space. The VHW-HWPS-CBB fits inside the camera housing. For the longest coax runs, the VLS-1P-BC and VLS-1P-CC Longstar units cover 540 - 690 metres on RG-59 or as much as 1400 metres on RG-11 at 100Base-T, and provide 25 watts of PoE Plus.

UnitFamilyCableReach
VOR-ORLOUTREACH Lite, 10/100UTP network cable200 m with one unit
VOR-ORL-GOUTREACH Lite G, GigabitCat5e or Cat6About 200 m
VOR-ORM-XTOUTREACH Max XT, outdoorCat5e or Cat6200 m with one unit
VLS-1P-BLONGSPAN base, PoE/PoE+Cat6, Cat5eAbout 820 m
VLS-1N-LLONGSPAN Lite, data onlyUTP, Cat6About 820 m
VHW-HWPS-B8Coax base, 8 channelsRG59, RG6, RG11300m on RG59
VLS-1P-CCLongstar over coaxRG-59, RG-111400m on RG11

Related categories

See the whole Veracity range, including Veracity power supplies and Veracity converters, and other PoE extenders. Connect them to CCTV cameras and network video recorders, or browse security and surveillance.

Frequently asked questions

How can I run Ethernet further than 100 metres?

Use an Ethernet extender, either an inline repeater placed between 100 m segments or a long-range point-to-point pair. The Veracity OUTREACH Max VOR-ORM doubles a standard 100 m segment to about 200 m and can be daisy-chained for longer runs. The LONGSPAN VLS-LSM-B reaches 820 metres at 100Base-TX, and with the VOR-ORL-XT, connections up to 2.2 kilometres are possible, depending on configuration.

Does an extender pass PoE to the camera?

Yes, if it is a PoE pass-through model, which forwards PoE to the far device, while a PoE-powered model uses PoE to run itself and does not forward it. Veracity OUTREACH Max units such as the VOR-ORM and VOR-ORM-XT forward 802.3af/at and 802.3bt PoE, while the OUTREACH Lite VOR-ORL is powered by PoE but does not forward it. The LONGSPAN VLS-1P-B is an Ethernet and PoE extender with PoE/PoE+.

Can I use existing coax for IP cameras?

Yes, HIGHWIRE units carry Ethernet and PoE over the coax already in place, which avoids re-cabling when upgrading analogue cameras to IP. The VHW-HWPS-B8 base handles eight channels at up to 300m on RG59 or 500m on RG11, the VHW-HWPS-CBB fits inside the camera housing, and Longstar units such as the VLS-1P-CC reach 1400m on RG11.

What is an outdoor PoE extender?

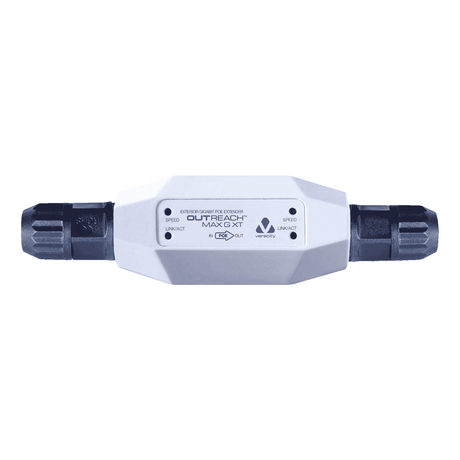

An outdoor PoE extender is a PoE Ethernet extender in a sealed, weather-rated enclosure, so it can be installed outside. The Veracity VOR-ORM-XT and VOR-ORM-GXT are outdoor OUTREACH Max units in IP66/67, NEMA 4X/6P enclosures that pass PoE to the far-end device. The VOR-ORM-GXT works from −40 °C to 70 °C.

What is the difference between LONGSPAN and OUTREACH?

OUTREACH units repeat the link in line every 100 m, while LONGSPAN is a point-to-point pair that runs over one long cable. One Veracity OUTREACH Max VOR-ORM doubles a 100 m segment to about 200 m, while the LONGSPAN VLS-LSM-B reaches 820 metres at 100Base-TX. LONGSPAN even supports single-pair UTP cables, for upgrading legacy analogue systems.
